1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable

China 1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable supplier
1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable supplier 1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable supplier 1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable supplier 1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable supplier 1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable supplier 1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable supplier

Large Image :  1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable

Product Details:

Place of Origin: China(mainland)
Brand Name: HOLINK
Certification: CE FCC RoHS
Model Number: HL-DVI-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after mayment confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Brand Name: Holink Number Of Input Signal: 1channel
Resolution: 1080p/1920x1200@60Hz Max DVI Protocol: DVI 1.0
Certification: CE FCC RoHS Unit: Pair


1080P Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable


Overview:

      DVI to Fiber Converter is a set of extender device of high-definition video transmission which use fiber optic, just need a single fiber will be able to transmit 1080p signal over long distances, it support audio transmission and RS232 transmission. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

    This high-end fiber VGA/DVI/HDMI extender supports high distance of DVI transmission at real-time, it can extend video, audio, RS232,USB and MIC interfaces of computer max up to 2km/20km over SM/MM fiber cable. They are widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

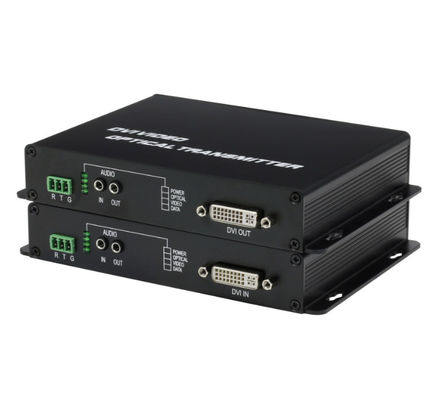

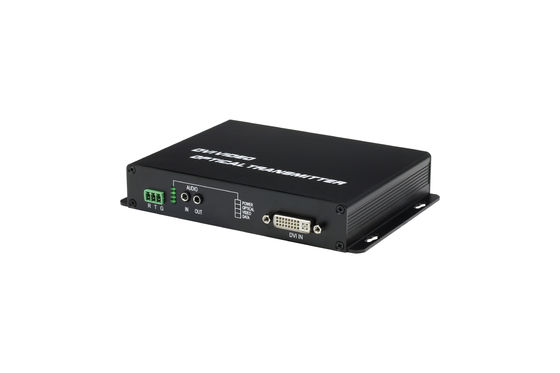

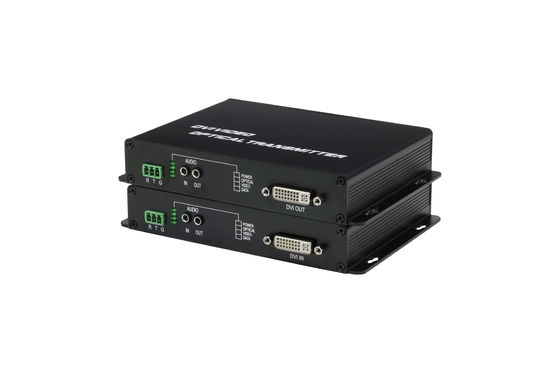

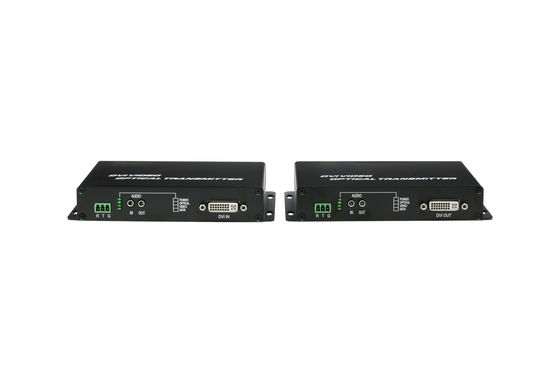

Photo show
 1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable

Feature:

1. Transmits DVI or HDMI, RS232, audio over a single fiber
2. Uncompressed data, 1080P, 1920x1200@60Hz, no loss
3. Supports auto/manual EDID reading.
4. Plug and play, no software or driver
5. Including a sender, a receiver, a DVI cable, an audio cable, 2*power supply and manual

Suited for video wall, security monitoring, media broadcasting, advertisement, etc.
6.Max extension distance 2KM(MM)/20KM(SM).

7.Support adjustment of sampling frequency, phase, and image horizontal/vertical position, as well as the signal input indication.






Product Specification:

FunctionNumber of input signal1channel (DVI,Audio,RS232)
Number of output signal1channel (DVI,Audio,RS232)
Extending distance500m(multi mode)/10KM(single mode)
Video SpecificationVideo InputDVI-I (supports DVI-D)
Video OutputDVI-I (supports DVI-D only)
Resolution1080p/1920x1200@60Hz max
DVI ProtocolDVI1.0
Audio SpecificationAudio Jack3.5mm Stereo Jack
Audio Frequency10Hz – 20KHz
RS232 SpecificationRS232 ConnectorDB-9 female
Speed115Kbps Max
DirectionUni directional
OpticalOptical input/outputSingle/Multi mode LC connector
Transmission wave length1550nm/1310nm
PowerVoltage5V/2A DC
Power consumption

Sender: <3W
Receiver: <3W

Physical parametersSize(L× W×H)

Sender: 128mm×131mm×32mm
Receiver: 128mm×131mm×32mm

HousingAluminum
ColorBlack
Net weight0.60kg
EnvironmentStorage temperature-40-80℃
Humidity0-95% (Non-condensing)
Working temperature

-15℃-55℃

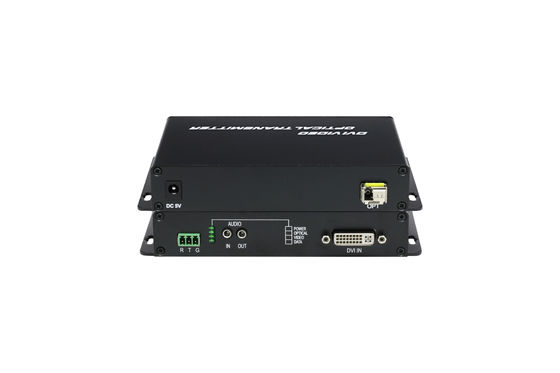

Panel Details

1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable







Application
1 channel 1080P/60hz Video To DVI Converter Box Extend Dvi Rs232 IR Signal Via SM / MM Fiber Cable



shipping and packing:


Packaging

We pack the item with the packaging foam first, then put it into the best quality carton, so the goods can be well protected while in transmit.

Shipping

We accpet the delivery terms of EXW, FOB, CFR, CIF, choosing us to operate the logisic problem can save you a lots of money and make you more expedite. And we can ship the goods via sea, air and all the international express companies like FedEx, UPS, DHL, TNT, EMS, also we can use your courier account for feight collect.
