1 Channel 1080P/60Hz DVI to Fiber Optic Video Converter over Single Mode Fiber with LC(SFP ) Fiber Port

China 1 Channel 1080P/60Hz DVI to Fiber Optic Video Converter over Single Mode Fiber with LC(SFP ) Fiber Port supplier

Large Image :  1 Channel 1080P/60Hz DVI to Fiber Optic Video Converter over Single Mode Fiber with LC(SFP ) Fiber Port

Product Details:

Place of Origin: China(mainland)
Brand Name: HOLINK
Certification: CE FCC RoHS
Model Number: HL-DVI-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pair
Price: Negotiation
Packaging Details: International Standard Package
Delivery Time: 1-5 working days
Payment Terms: T/T, D/P, Western Union, MoneyGram
Supply Ability: 6000 Pairs One Month
Contact Now
Detailed Product Description
Features: Umcompressed Resolution: 1080p
Connector: LC Power Adapter: 220VAC
Distance: 20KM Wavelength: 1310nm
Maximum Pixel Clock: 165MHz Resolution Range: Up To 1920X1200@60Hz
Impedance: 100Ω Keyword: DVI Fiber Optic Converter
Product Name: Fiber Optical DVI Video Converter Fiber: Single Fiber

All digital, uncompressed video transmission+data,20Km DVI Extender over Fiber 1080p ,sc connector





Overview:

1 Channel 1080P/60Hz DVI to Fiber Optic Video Converter over Single Mode Fiber with LC(SFP ) Fiber Port



   SMF or MMF DVI audio video to Optical Fiber Converter 300M~40 KM adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced.It can transfer signal source(1ch DVI-D video,1ch bidirectional analog audio and 1ch RS232 ) to long distance terminal easily, with strong anti-interference performance, ensure the signal completed and stable.Widely used in broadcasting, video conferencing, medical teaching, Education recording and broadcasting, security monitoring and other demanding industries on the video.

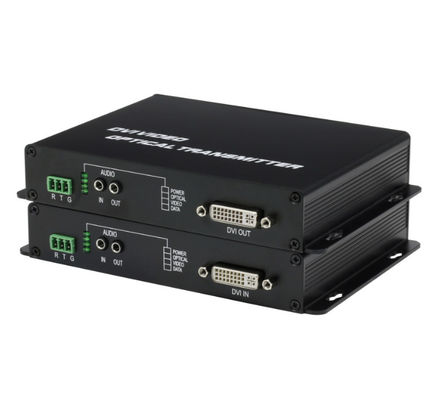

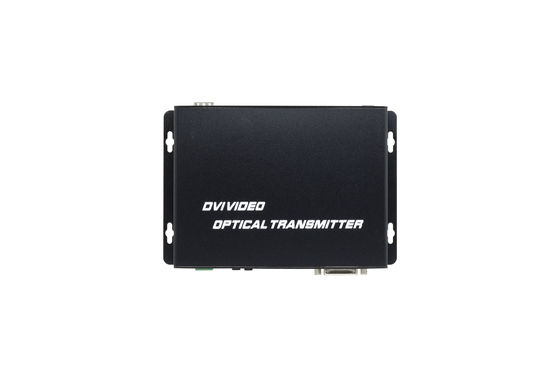

    The product is composed of sender(marked with Sender)and receiver (marked with receiver),Can extended the DVI, USB keyboard mouse signal to the remote through the single core optical fiber. Using high speed FPGA techniques convert the DVI signal to 3G fiber signal transmission. Maximum resolution can reach 1920*1200@60Hz,maximum transmission distance up to 20 km.







Technical parameter:







Video
No. 1-channel
Video type RGB with single and sync H,V
Input level 0.7Vp-p
Output level 0.7Vp-p
Bandwidth (-3 dB) 300MHz
Bit width 10bit
Interface HD-15(DVI-I option)
Audio
No. of channels 1
Input/ output level 5Vp-p,unequilibrium
Total harmonic distortion ≤1%
Bandwidth (-3 dB) 20~20KHz
Audio coding 24bit
Input/ output impedance 600Ω or 100KΩ
Weighted SNR ≥90 dB
Connector Standard 3.5 mm stereo headphone jack
RS232 indication
Input/output interface 9-hole standard RS232 socket
Signal rate 115200bps
Signal level RS232 standard level
Optics
Wavelength 1310nm
Fiber optic Single-mode
Max. link loss 12dB(option)
Output optical power 10dBm
Receiver sensitivity ≥20dBm
Data rate 1.25
Connector SC (FC/ST option)
Reaction speed Better than0.1 second
Power and environmental indication
Freestanding power 5W
Power adapter 220VAC to 5VDC/1A
Temperature rage -40°C to +70°C
Relative humidity

< 95% (no condensation)











Features:



1.Full digital, Uncompressed HD optical fiber transmission

1.Independent bi-directional analog audio

1.Support Full HD,1920*1200@60HZ

1.Support SFP Module,LC Connector

1.Support EDID automatic reading

1.Support DVI 1.0 Protocal

1.Automatic identification and configure display mode

1.Automatic equalization inside, stable and clear graphicsl

1.Built-in ESD protection circuit, can effectively prevent static electricity loss

1.Easily to installation, plug and play, no need to set up




Application



# Remote OB Van/Truck Video Feeds

# Broadcast Studio Camera Feeds

# Long-haul Signal Transport

# TV station/video conference

# broadcasting, video conferencing, medical teaching

# security monitoring and other demanding industries on the video









Shipping and packing:



international standard package

by DHL TNT UPS Fedex EMS etc.
