|Distance:||20KM||Humidity:||10% To 90%|
|Resolution:||1080p/1920x1200@60Hz Max||Voltage:||5V DC|
All Digit Remote Control Fiber Dvi Extender With Umcompressed Audio / Video Signal

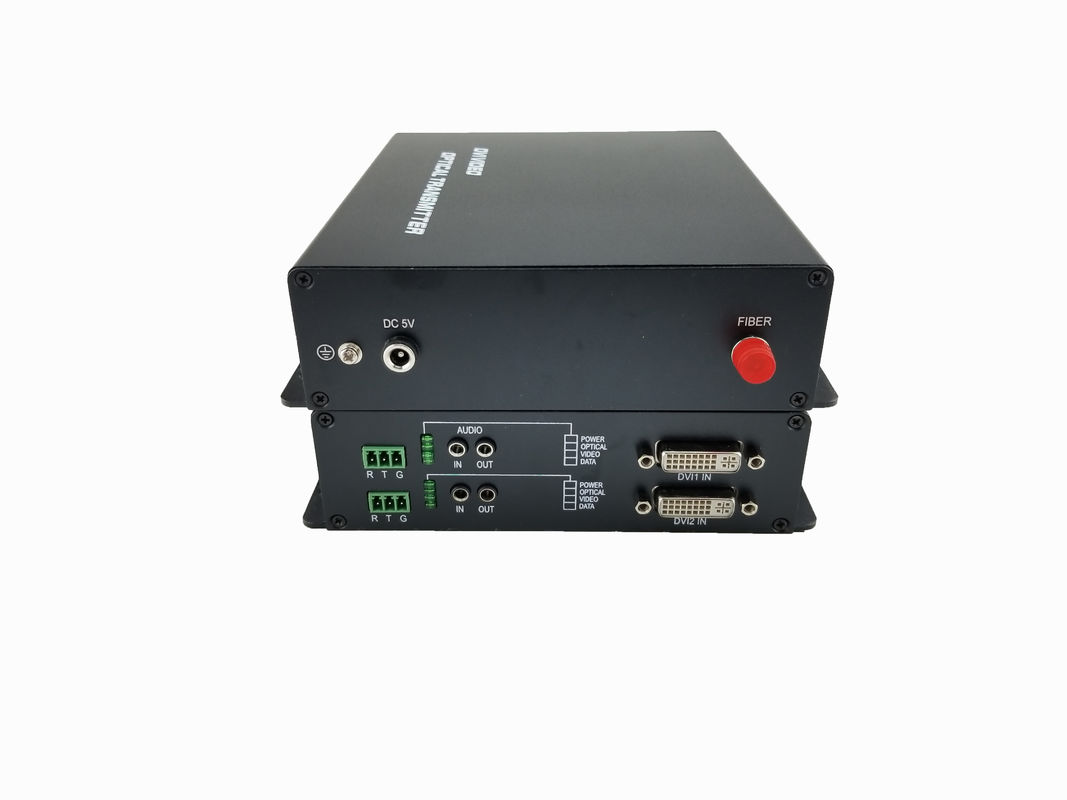

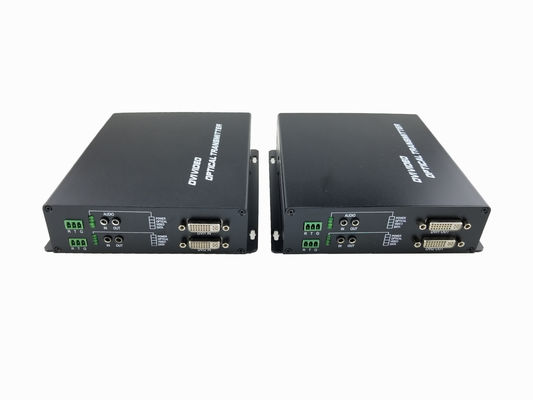

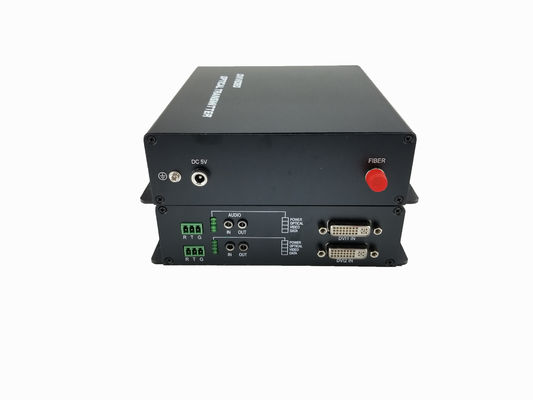

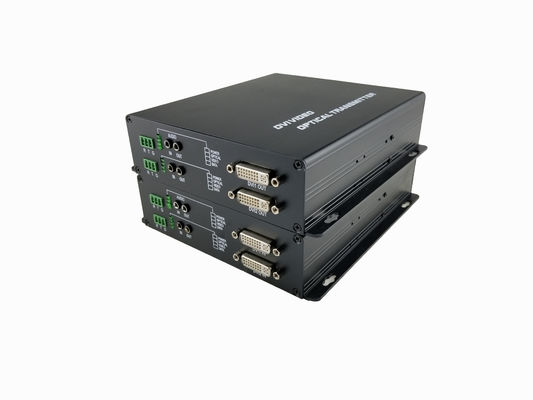

The product consists of a sender and a receiver which showed on the case,it can expand the signal DVI/RS232 to somewhere remote by Single-core optical fiber,the high-speed Optical FPGA technology has been used that converting DVI signal into an optical fiber signal transmission 3G resolution up to 1920*1080@60Hz, max distance 10KM.Widely used in a variety of industries and areas of security monitoring, hospitals, banks, splicing systems, multimedia information release system.
The DVI over Fiber Converter/Extender is a high-speed, HDCP compliant fiber optic transport system capable of distributing high resolution HDMI or DVI signals over fiber cable while maintaining flawless image quality. An DVI input signal from a source device such as a set-top box or Blu-Ray player is converted into light pulses by an optical transmitter module for transmission over two (2) strands of fiber optic cable. On the display side, an optical receiver module converts the light pulses back to an DVI signal for display on a monitor or projector.
1. Sharing the Ethernet port and connect the audio/video to the display, TV or project that have the HDMI or VGA port. To extender the audio/video info to display by network.
2. Compatible with Ethernet and USB 1.1//2.0 specification.
3. Provide 2 x USB 2.0 ports, can connect to keyboard, mouse or other USB devices.
4. Supports audio input and output, Provide one mic and audio interface.
5. Supports mirror desktop and extended desktop video modes.
6. Up to 1920x1080(QWXGA).
7. Installs in minutes
8. Need DC5V/2A power supply
|Compliance||DVI v1.0, HDMI v1.4, HDCP v1.4|
|Maximum Pixel Clock Frequency||Supports pixel clock rates up to 340 MHz|
|Maximum Video Bit Rate||Supports digital signal bit rates up to 3.4 Gbps per color|
|Supported Color Depth||Supports 1080p resolution with up to 16 bits/pixel|
|Digital Audio Support||Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio|
|Supported HDTV Formats||Supports all HDTV resolutions including 1080p, 2K and 4K (UHD) formats|
|Supported PC Resolutions||Supports resolutions up to 4096x2160 / 24p, 30p|
|Optical Transmitter||Laser Source: 1310nm FP / 1310nm DFB / 1550nm DFB|
|Optical Receiver||PIN Photo Diode O/E Converter|
|Fiber Cable Type / Max. Length||50/125μm multi-mode optical fiber / 350 meters
9/125μm single-mode optical fiber / 10km
|HDMI Input / HDMI Output||19-pin female HDMI connectors|
|Optical Input / Output||Duplex female LC optical connectors|
|Construction||Extruded Aluminum enclosure with black anodized finish|
|Dimensions||104 mm x 104 mm x 28 mm|
|Operating Temperature||+32°to +122°F. (0°to +50°C.)|
|Storage Temperature||-4°to +158°F. (-20°to +70°C.)|
|Humidity (storage/operating)||10% to 90% (non-condensing)|
|Power Source||Both Tx and Rx units must be powered using the supplied external AC power adapters|
|External AC Power Adapter||Input: 100~240VAC / 50-60Hz, 0.5A Output: 5VDC, 2.0A|
|Maximum Power Consumption||TX Unit: 3.5 watts RX Unit: 3.5 watts|
