1 channel Uncompressed HDMI video over fiber optic extender , HDMI 1.3 standard audio to optical converter

China 1 channel Uncompressed HDMI video over fiber optic extender ,  HDMI 1.3 standard audio to optical converter supplier
1 channel Uncompressed HDMI video over fiber optic extender ,  HDMI 1.3 standard audio to optical converter supplier 1 channel Uncompressed HDMI video over fiber optic extender ,  HDMI 1.3 standard audio to optical converter supplier 1 channel Uncompressed HDMI video over fiber optic extender ,  HDMI 1.3 standard audio to optical converter supplier 1 channel Uncompressed HDMI video over fiber optic extender ,  HDMI 1.3 standard audio to optical converter supplier 1 channel Uncompressed HDMI video over fiber optic extender ,  HDMI 1.3 standard audio to optical converter supplier

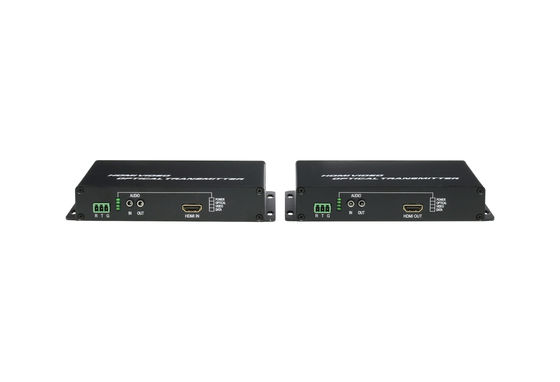

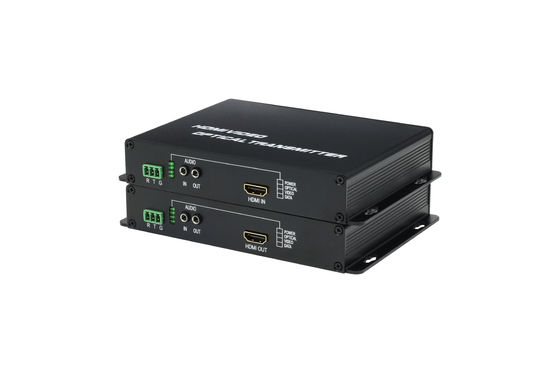

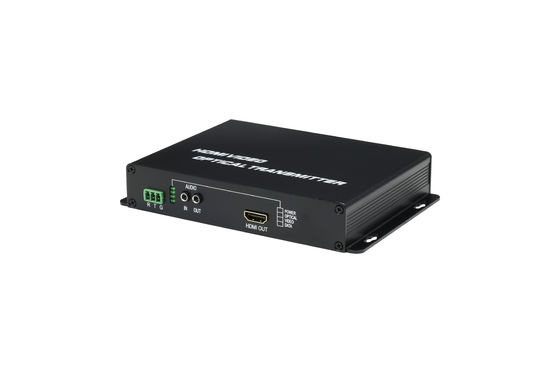

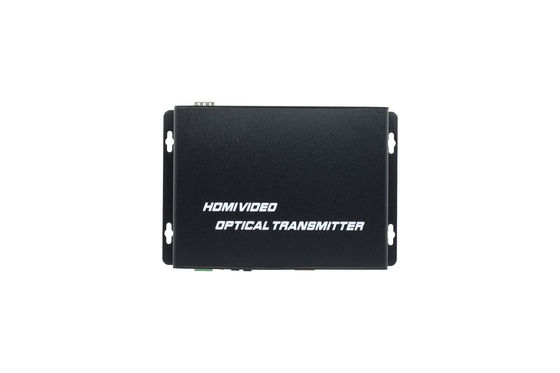

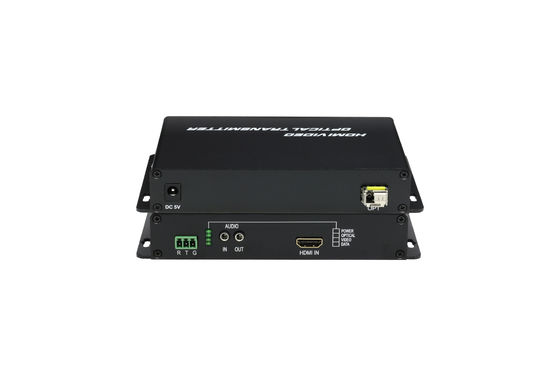

Large Image :  1 channel Uncompressed HDMI video over fiber optic extender , HDMI 1.3 standard audio to optical converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-HDMI-1V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pair per month
Contact Now
Detailed Product Description
Product Name: HDMI Over Fiber Converter Operating Temperature Range: -10 To +70 °C
Output Video: HDMI 1.3,HDCP1.2 Video Format: Up To 1920X1080P@60Hz
Fiber Distance: 20Km Fiber Wavelenth: SM,1310nm

Uncompressed HDMI Fiber Optic Converter Up to 1920*1080P&60hz for Advertising,Single Fiber Mode,20Km







Packaging Details:


1. Weight: 1.8 kg
2. Package size: 30*25*10 cm
3. Package: carton









Specifications:




IR HDMI to fiber converter over fiber optics wire for fiber optic transmission systems Video Parameter
Video Resolution 640X480 @ 60fps 800X600 @ 60fps
1024X600 @ 60fps 1024X768 @ 60fps
1152X864 @ 60fps 1280X600 @ 60fps
1280X720@ 60fps 1280X768@ 60fps
1280X800@ 60fps 1280X960@ 60fps
1280X1024@ 60fps 1440X1050@ 60fps
1440x900 @ 60fps 1600x900 @ 60fps
1660x1200 @ 60fps 1680x1050 @ 60fps
1920x1080 @ 60fps 1920 x1200 @ 60fps
Audio 32kHz, 44.1kHz and 48kHz
Infrared Support 38KHz; NEC code
HDMI Version HDMI 1.3
HDCP Version HDCP 1.2
IR HDMI to fiber converter over fiber optics wire for fiber optic transmission systems
Other Parameters
Power input AC input: 100V - 240V (50 - 60Hz)
Max Power Consumption WL-HD200T: 5W
WL-HD200R: 5W
Size (L-W-H) 110×80×30 mm
Net Weight 456g*2pcs
Operating Temperature/Humidity 0℃ - 70℃ / 10% - 80%RH(no condensation)
Storage Temperature/Humidity -10℃ - 80℃/ 5% -90% RH(no condensation)






Overview:


H-HDMI-1V1D1A-T/RL HDMI to Fiber Optic Converter provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 1080P,EDID
copy function. The extender can use for a wide range of applications requiring long
distance transmission of high resolution with high quality by its good stability and
powerful security.






Each LED indicator lamp:


Indicator Light HDMI Transmitter HDMI Receiver
VIDEO On Video signal on
Off Video signal off
LOCK On Fixed video signal
Off Not fixed video signal
RUN On Device works smoothly
Off Device not works smoothly
POWER On Power on
Off Power off








Main Features:

1, Transmits HDMI video signals up to 2km-10km over one fiber optic cable

2, Support video resolution up to 1920*1200@60Hz, 3D signal

3, Compliance with HMDI 1.3 and HDCP 1.2 standard

4, High compatibility, can auto-match source and display device

5, Built-in automatic adjustment system, make the image smooth, clear and stable

6, Built-in ESD protection system

7, Simple to install, plug and play



1 channel Uncompressed HDMI video over fiber optic extender ,  HDMI 1.3 standard audio to optical converter


Applications:

1 channel Uncompressed HDMI video over fiber optic extender ,  HDMI 1.3 standard audio to optical converter





How does your factory do regarding quality control?



Quality is priority.Every product must testy quality one by one before shipping.PWAY people always attached great importance to quality controlling from the very beginning to the very end.



If we/I am no clear about how to use products.what should we do?



Each of your products have a manual,you may read it or you may consult us. You may get a reply within 24 Hours.
