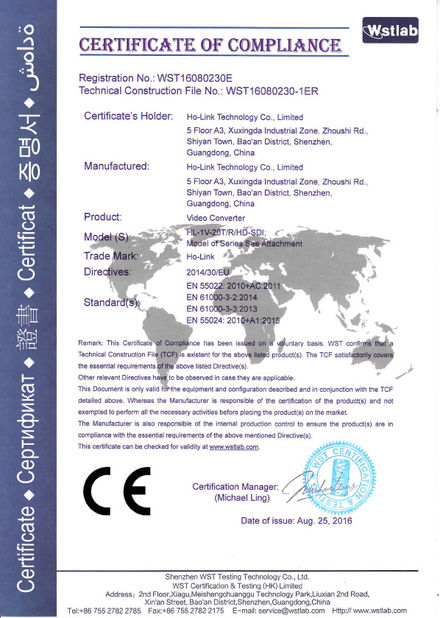

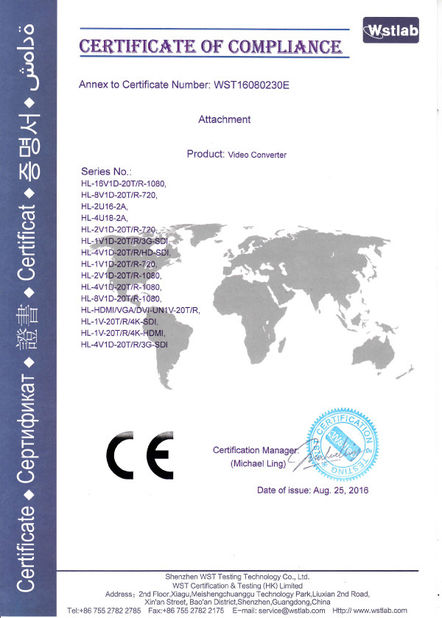

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector

China HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector supplier
HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector supplier HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector supplier HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector supplier

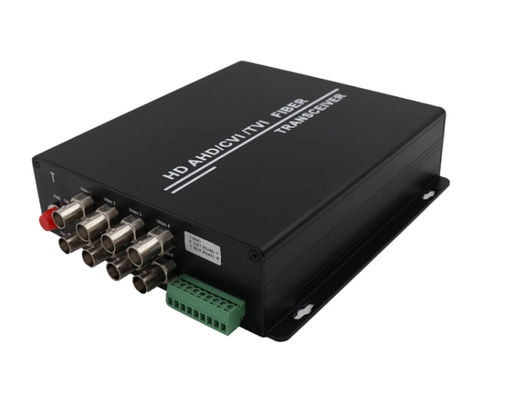

Large Image :  HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/ROHS/FCC/SGS
Model Number: H-AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Fiber Connector: FC Connector Fiber Type: Single Mode Fiber
Transmission Media: Coaxial Cable Baud Rate: 1200~9600bit/s
Operation Mode: Half-Duplex Application: CCTV/Protection/monitor Ect
Fuction Support: Video,Audio,date,hd-sdi,AVI,AHD,HDMI Warranty: 3 Year
Fiber Power: -9~ -5dBm

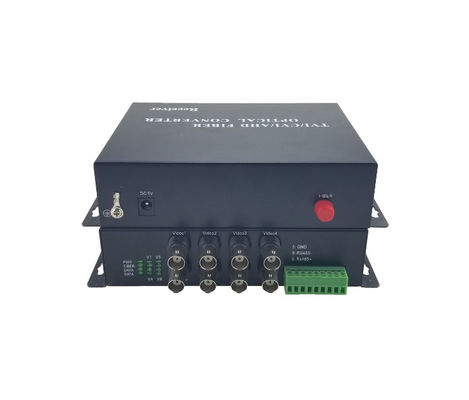

HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector







Overview:



      Our 1-64 channel video multiplexers can simultaneously transmit 1-64 channels of 10-bit digitally encoded broadcast quality video / return or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Switching value over one multimode or singlemode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .

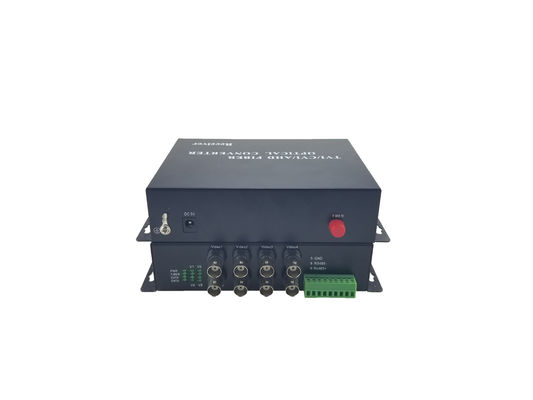

HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector



Feature

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation





Opitcal:



Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~80KM (SM)



Video:



Number of Channels 1
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC



Other:



Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Installation Wall mount
MTBF ≥ 100000Hours









Applications:

  • City traffic monitoring system
  • Public security, safe city monitoring system
  • Highway security protection, charging system
  • Building, campus monitoring net
  • Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • electric power, oilfield, television program transmission system
  • Gymnasium (live video, audio transmission)







Competitive Advantage:



    Ho-Link AHD Video Over Fiber Converter can simultaneously transmit 1~16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.









AHD TO Fiber Converter System connection diagram

HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector







Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector





Payment



HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector



Our Services



Welcome to inquire!



HDCVI/TVI/AHD 45MHz Single Mode Fiber Video Converter Coaxial Cable FC / ST / SC Connector


Ho-Link Technology Co.,Ltd



TVI/AHD/HD CVI fiber optical converter 1 to 16 channels HD coaxial Fiber video converter









Company Information


Company Profile



    Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

    Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.
