1 Channel 1080P/60Hz Uncompressed DVI to Video Fiber Transmitter Receiver Over Dual Fiber Optic Cable SMF

China 1 Channel 1080P/60Hz Uncompressed DVI to Video Fiber Transmitter Receiver Over Dual Fiber Optic Cable SMF supplier

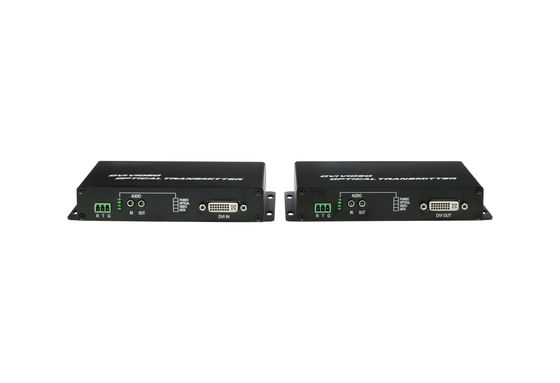

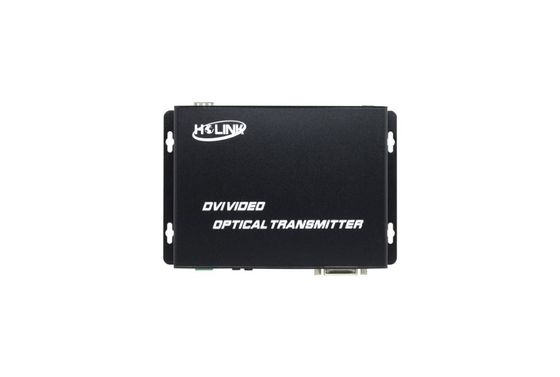

Large Image :  1 Channel 1080P/60Hz Uncompressed DVI to Video Fiber Transmitter Receiver Over Dual Fiber Optic Cable SMF

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-DVI-2V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: within 3 working days after payment confirmed
Payment Terms: T/T or western Union or Paypal
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Product Name: DVI To Fiber Converter Input Voltage: DC 5V,inside+ Outside-
Fiber Type: SMF Maximum Data Rate: 10Gbps
Device Size: L*W*H(mm)120X97.5X25.2 Wavelength: 1310nm/1550nm

DVI RS232 video fiber transmitter and receiver over dual fiber optic cable for audio video transmission







Overview:



      H-DVI-1V1D1A-T/RL includes a sender and a receiver, which can transmit video and IR signal to a remote location over single/duplex fiber cable, so that user can see the real-time picture image remotely.
The product support DVI video and IR signal transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz, max distance 2KM (MM fiber cable)/ 20KM(SM fiber cable).



      DVI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital
optical fiber transmission technology advanced.It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR) to long distanceterminal easily,with strong anti-interferance performance,ensure the signal completed and stable









Specification:





Temperature -5 to +35°C
Humidity 5 to 90 % RH (no condensation)
The signal of Input and output DVI
Video format



1920*1080P60

1920*1080P50

1920*1080P30

1920*1080P25

1920*1080P24

1920*1080I60

1920*1080I50

1280*720P60

1280*720P50

The signa of Audio input and output 3.5MM Audio
Audio format 44.1K,48K,96K,176K,192K
The Maximum transmission distance of DVI and Audio

10KM

20KM

40KM

60KM

Input voltage DC 5V,inside+ outside-
Power consumption

DVI receiver 2.5W

DVI transmitter 2.5W

Device size L*W*H(mm)120X97.5X25.2









Main features:


  • Ø Full digital, Uncompressed HD optical fiber transmission
  • Ø Exact match HDMI1.3b standard,HDCP1.1 protocal,support CEC
  • Ø With Independent analog audio
  • Ø Automatic identification and configure display mode
  • Ø Support resolution up to 1080P60 and below
  • Ø Single mode,multi mode optical transmission
  • Ø ESD protection circuit inside, to ensure the ESD damage.
  • Ø Easily to installation, plug and play, no need to set up







Installation:



1. Connect HDMI input signal to HDMI_IN port by HDMI cable


2. Connect HDMI output signal to HDMI_OUT port by HDMI cable


3, Connect Audio input signal to AUDIO IN port


4, Connect Audio output signal to AUDIO OUT port


5, Connect LC fiber to OPT IN and OPT OUT


6, Power on.











Applications:




1 Channel 1080P/60Hz Uncompressed DVI to Video Fiber Transmitter Receiver Over Dual Fiber Optic Cable SMF







Shipping and packing:



Package:neutral /standard/customized packing



Shipment :DHL /TNT /EMS etc.(enable the fastest delivery to your place)




4ch HD DVI digital video to fiber optic media converter, 10km on SMF
