BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter

China BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter supplier
BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter supplier BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter supplier BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter supplier BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter supplier

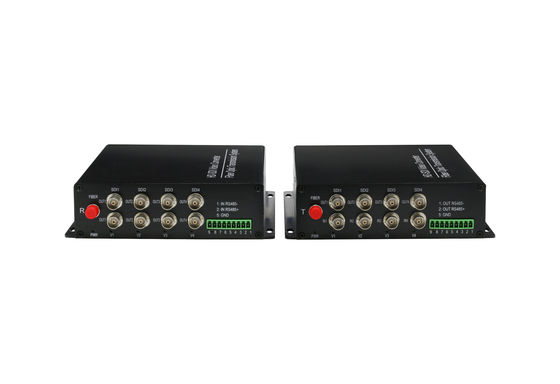

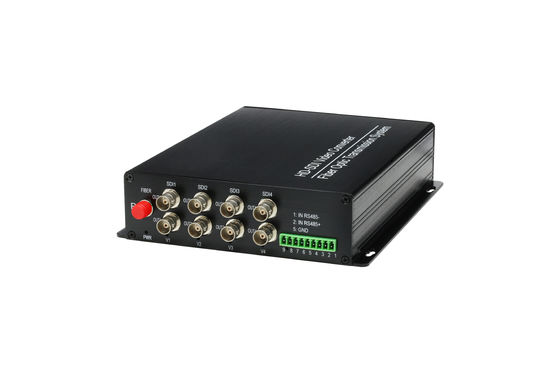

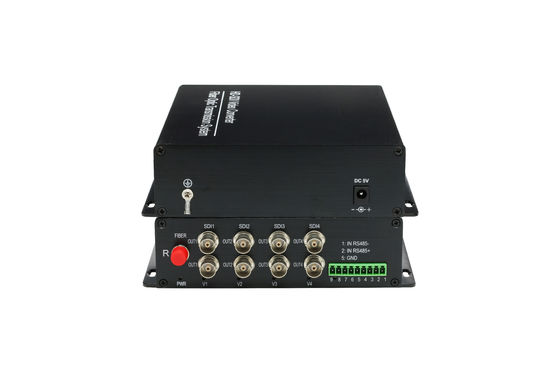

Large Image :  BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-8V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: HD-SDI To Fiber Converter Support Definition: 1080P@30Hz
Operating Temperature: -40~85℃ Comply Standard: SMPTE-292M HD-SDI And SMPTE-259M SD-SDI
Data Rate: 2.97Gb/s,1.485Gb/s And 270Mb/s Fiber Type: SM Or MM

fiber optical HD SDI converter SDI fiber media converter RS485 BNC level waterproof HD-SDI cctv camera in dubai, hd-sdi




Product Description



   It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m







Features



•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

The Max rate of work is 3.2Gb/s

Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

LED Status Indication to monitor the working conditions

Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94









Typical application

BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter



BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter







Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization







Specifications







Parameter Description
Video connector BNC
The interface bandwidth 1.4835Gbps,1.485Gbps,2.97Gbps
impedance 75Ω
Resolution

1920*1080@60Hz; 1920*1080@50Hz; 1920*1080@30Hz; 1920*1080@25Hz; 1920*1080@24Hz; 1280*720@60Hz;

1280*720P@50Hz; 525i; 625i

RS485 connector Industrial terminals
Baud rate Self-adaptive, Max:115200bps
Optical fiber Self-adaptive, Max:115200bps LC/SC
Wavelength Single-mode 1310nm
Transmission distance Single-mode:3/20/40/80km
Other Power Power adapter:DC 5V/2A
Power dissipation MAX 2.5W
Size 120mmX97.5mmX25.2mm















Packaging & Shipping





Sdi Fiber Optical Transmitter /sdi Optical Transceiver/sdi Receiver


BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter







Payment



BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter



Our Services



Welcome to inquire!



BNC level waterproof HD SDI Extender for cctv camera , 0 ~ 20km fiber optic video transmitter
