Uncompressed Dvi To Fiber Converter , Rs232 Audio Dvi To Fiber Optic Converter No Loss

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

Uncompressed Dvi To Fiber Converter , Rs232 Audio Dvi To Fiber Optic Converter No Loss

China Uncompressed Dvi To Fiber Converter , Rs232 Audio Dvi To Fiber Optic Converter No Loss supplier

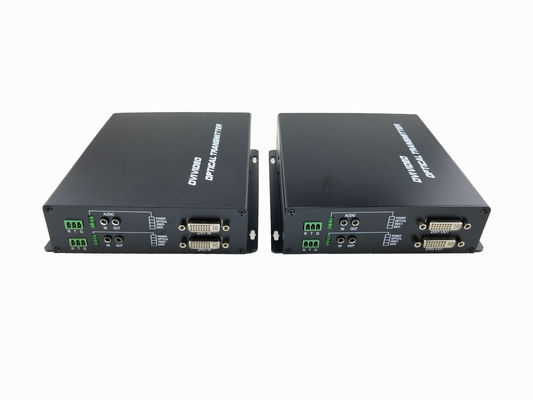

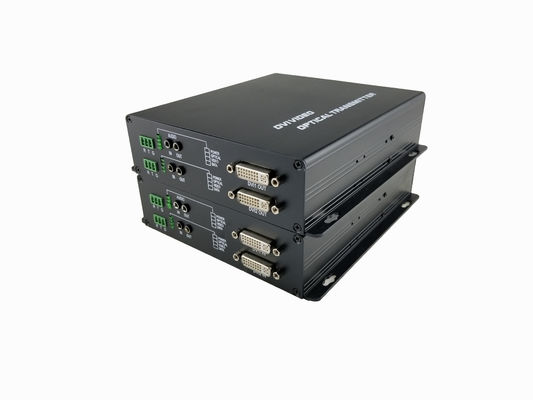

Large Image :  Uncompressed Dvi To Fiber Converter , Rs232 Audio Dvi To Fiber Optic Converter No Loss

Product Details:

Place of Origin: China(mainland)
Brand Name: HOLINK
Certification: CE FCC RoHS
Model Number: HL-DVI-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after mayment confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Brand Name: Holink Corlor: Black
Warranty: 3 Years Delivery Date: 3 -5 Days
Certification: CE FCC RoHS Unit: Pair





Uncompressed Dvi To Fiber Converter , Rs232 Audio Dvi To Fiber Optic Converter No Loss





Overview:



      DVI to Fiber Converter is a set of extender device of high-definition video transmission which use fiber optic, just need a single fiber will be able to transmit 1080p signal over long distances, it support audio transmission and RS232 transmission. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.





Feature:



1. Transmits DVI or HDMI, RS232, audio over a single fiber

2. Uncompressed data, 1080P, 1920x1200@60Hz, no loss

3. Supports auto/manual EDID reading.

4. Plug and play, no software or driver

5. Including a sender, a receiver, a DVI cable, an audio cable, 2*power supply and manual



Suited for video wall, security monitoring, media broadcasting, advertisement, etc.













Product Specification:



Function Number of input signal 1channel (DVI,Audio,RS232)
Number of output signal 1channel (DVI,Audio,RS232)
Extending distance 500m(multi mode)/10KM(single mode)
Video Specification Video Input DVI-I (supports DVI-D)
Video Output DVI-I (supports DVI-D only)
Resolution 1080p/1920x1200@60Hz max
DVI Protocol DVI1.0
Audio Specification Audio Jack 3.5mm Stereo Jack
Audio Frequency 10Hz – 20KHz
RS232 Specification RS232 Connector DB-9 female
Speed 115Kbps Max
Direction Uni directional
Optical Optical input/output Single/Multi mode LC connector
Transmission wave length 1550nm/1310nm
Power Voltage 5V/2A DC
Power consumption

Sender: <3W

Receiver: <3W

Physical parameters Size(L× W×H)

Sender: 128mm×131mm×32mm

Receiver: 128mm×131mm×32mm

Housing Aluminum
Color Black
Net weight 0.60kg
Environment Storage temperature -40-80℃
Humidity 0-95% (Non-condensing)
Working temperature

-15℃-55℃

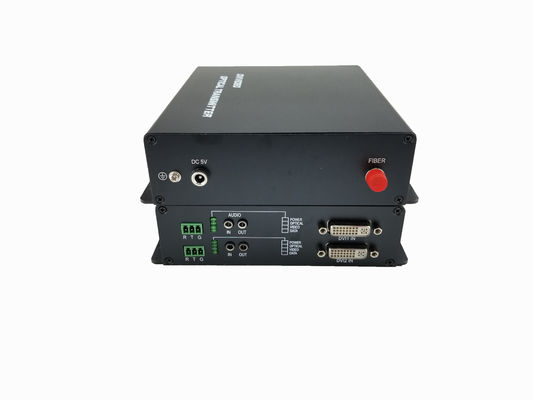

Panel Details





Uncompressed HDMI to Fiber Converter RS232 Audio 1080P No loss
