4channel ROHS DVI To Fiber Converter DVI Transmitter & Receiver With 4ch Reverse Data

China 4channel ROHS DVI To Fiber Converter DVI Transmitter & Receiver With 4ch Reverse Data supplier
4channel ROHS DVI To Fiber Converter DVI Transmitter & Receiver With 4ch Reverse Data supplier 4channel ROHS DVI To Fiber Converter DVI Transmitter & Receiver With 4ch Reverse Data supplier 4channel ROHS DVI To Fiber Converter DVI Transmitter & Receiver With 4ch Reverse Data supplier 4channel ROHS DVI To Fiber Converter DVI Transmitter & Receiver With 4ch Reverse Data supplier 4channel ROHS DVI To Fiber Converter DVI Transmitter & Receiver With 4ch Reverse Data supplier 4channel ROHS DVI To Fiber Converter DVI Transmitter & Receiver With 4ch Reverse Data supplier

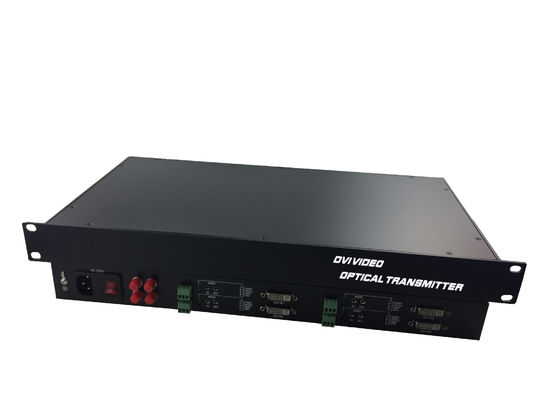

Large Image :  4channel ROHS DVI To Fiber Converter DVI Transmitter & Receiver With 4ch Reverse Data

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-DVI-2V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: within 3 working days after payment confirmed
Payment Terms: T/T or western Union or Paypal
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Optical Fiber Interface: LC Certificate: CE/FCC/ROHS
Transmission Distance: 0-120KM Resolution: 1080P/720P
UNIT: PAIR Temperature: -5℃ To 70℃

Reliable manufacturer of DVI transmitter & receiver, HDMI/DVI/VGA Video Over Fiber Converter with 1ch reverse data





Overview:



 DVI fiber optical converter,with non compressed digital HD video and high speed digital optical fiber transmission technology, can easily transmit various resolution DVI HD signal of host computer, high-definition video signal source, DVD/DVR HD equipment for long distance , has strong anti-interference ability, ensure signal integrity, stability.It supports high resolution up to 1920x1200P60.











Main features:






All digital, uncompressed high definition optical fiber transmission

Support full HD, 1920*1200@60Hz

Optical interface SFP (LC) ,optical attenuation -3db

1 channel analog audio (3.5mm)

Compatible with DVI 1 standard

Support KVM

Automatically identify and configure various display modes

Built-in auto balance, clear and stable picture

Built-in ESD protection circuit, can effectively prevent Electrostatic discharge

Installation: simple and convenient, plug and play, no need to set











Specification:









Video interface DVI-I
Protocol DVI1.0, HDCP1.2
Pixel bandwidth 165MHz
Audio interface 3.5mm audio socket
Format 44.1K,48K,96K,176K,192K
RS232 interface 3 port industrial terminal
baud rate 115200 downward compatibility
Data bit 8 bit
Keyboard / mouse interface USB interface
Optical fiber interface LC
Type SFP single mode
Wavelength 1550/1310nm
Bandwidth 3Gbps
Transmission Distance 10KM 40KM 60KM 80KM optional 20KM
Attenuation -3db
temperature -5℃ to 70℃
Humidity 5 to 90%
Power consumption 4W
Power adapter DC 12V1A
Weight 1500g





Alibaba china factory DVI optical fiber extenderAlibaba china factory DVI optical fiber extender

Alibaba china factory DVI optical fiber extender

Transmitter

Alibaba china factory DVI optical fiber extender



Receiver



Alibaba china factory DVI optical fiber extender



Interface description:



Interface name Description
DVI_IN DVI signal input
DVI_OUT DVI signal output
OPT fiber interface
AUDIO_IN Audio signal input
AUDIO_OUT Audio signal output
EDID Know about monitor EDID
R T G RS232 interface
PC connecting computer USB interface
KEYBOARD/MOUSE Connecting keyboard/mouse
DC-12V DC-12V Power adapter interface



Installation

1.DVI input signal connected the DVI_IN.

2, the DVI output signal connected the DVI_OUT.

3, the audio input signal connected the AUDIO IN.

4, the audio output signal connected the AUDIO OUT.

5, the LC interface fiber connected the OPT IN and OPT on the OUT.

6, Power the equipment













Applications:

  • 1.DVI input signal connected the DVI_IN.

    2, the DVI output signal connected the DVI_OUT.

    3, the audio input signal connected the AUDIO IN.

    4, the audio output signal connected the AUDIO OUT.

    5, the LC interface fiber connected the OPT IN and OPT on the OUT.

    6, Power the equipment











Shipping and packing:

Packing list



DVI transmitter x 1

DVI receiver x1

Power adapter 12V/1A 2

User's Manual



The shipping route is DHL,TNT,UPS,EMS etc.

By airlines or by sea are available as you wish. Our partner shipping company can offer us such service or if you have your own shipping agent in China,we will cooperate with them for shipping

International standard package

shipped: 2-3 working days after payment





Feedback

We depend on your satisfaction ot succeed.Therefore, your feedback is extremely important for us.



1.If you are satisfied with our product and service,Please leave us Positive feedback ,thanks a lot!



2.Contact us before leaving any Negative or neutral feedback, We will try our best to solve your problems, you are our best buyers.



3.Best discount for kindly.Your satisfaction, Our purpose.





Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China
Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03





   We have a large number of HD video converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
