HD DVI To Fiber Converter Transfer Signal Source To Long Distance Terminal

China HD DVI To Fiber Converter Transfer Signal Source To Long Distance Terminal supplier
HD DVI To Fiber Converter Transfer Signal Source To Long Distance Terminal supplier HD DVI To Fiber Converter Transfer Signal Source To Long Distance Terminal supplier HD DVI To Fiber Converter Transfer Signal Source To Long Distance Terminal supplier HD DVI To Fiber Converter Transfer Signal Source To Long Distance Terminal supplier HD DVI To Fiber Converter Transfer Signal Source To Long Distance Terminal supplier

Large Image :  HD DVI To Fiber Converter Transfer Signal Source To Long Distance Terminal

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-DVI-2V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: within 3 working days after payment confirmed
Payment Terms: T/T or western Union or Paypal
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Product Name: DVI To Fiber Converter Certificate: CE/FCC/ROHS
Digital Bits Wide: 10 Bits Standards: DVI 1.0; HDCP 1.2
Power Dissipation: MAX 5W Interface: SFP Model – LC Connector

HD DVI digital video to fiber optic media converter, transfer signal source to long distance terminal, 1080@60Hz







Overview:



  1-channel DVI/VGA video signal and 1-channel stereo audio and 1-ch data RS232 over one fiber, single mode or multimode, without compression, scaling and adjustments. It is ideal for Digital signage, broadcast or corporate studio, auditorium, stadium and theater, airport or transportation hub, distance learning, and surgical or medical imaging applications, to name a few.

   DVI/VGA Digital Video Fiber Optic Transmitter, 1-ch DVI/VGA video input, 1-ch stereo audio input and 1-ch data RS232, single mode, single fiber, SC/PC fiber connector, headphone jack, RS232 interface, standard 20km, stand-alone type
    DVI/VGA Digital Video Fiber Optic Receiver, 1-ch DVI/VGA video output, 1-ch stereo audio output, and 1-ch data RS232, single mode, single fiber, SC/PC fiber connector, headphone jack, RS232 interface, standard 20km, stand-alone type










Main features:






1. Easy to install and operate.

2. HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.

3. Supports DVI/analog audio input and HDMI output.

4. Automatic detection of input format.

5. Operational Frequency of: 225MHz

6. Frequency Bandwidth of: 2.25Gbps (single link).

7. Supports high resolution input/output:

PC: VGA@60/72/75/85Hz, SVGA@60/72/75/85Hz,

XGA@60/70/75/85Hz, SXGA@60/75/85Hz, UXGA@60Hz.

SD/HD: 480i/p@60Hz, 576i/p@50Hz, 720p@50/60Hz, 1080i@50/60Hz

and 1080p@24/50/60Hz.

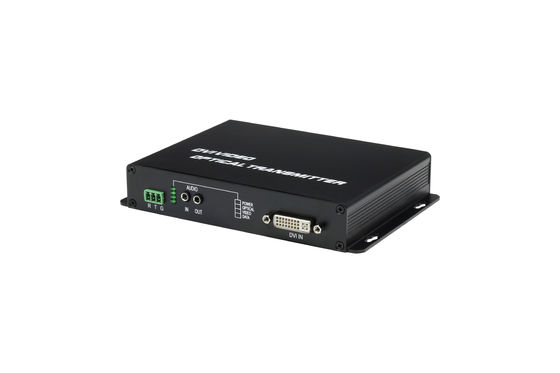

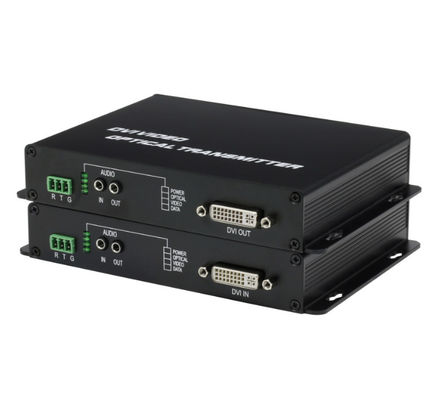

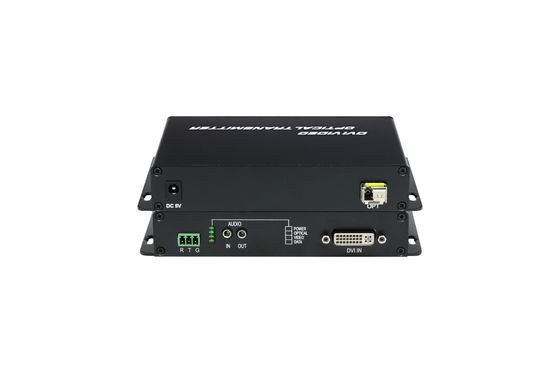

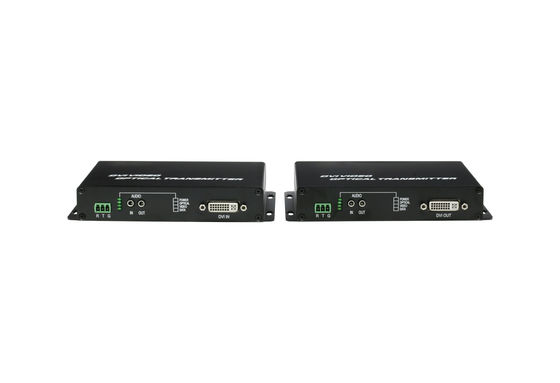

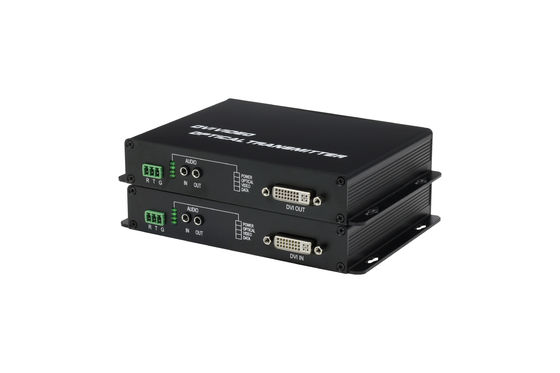

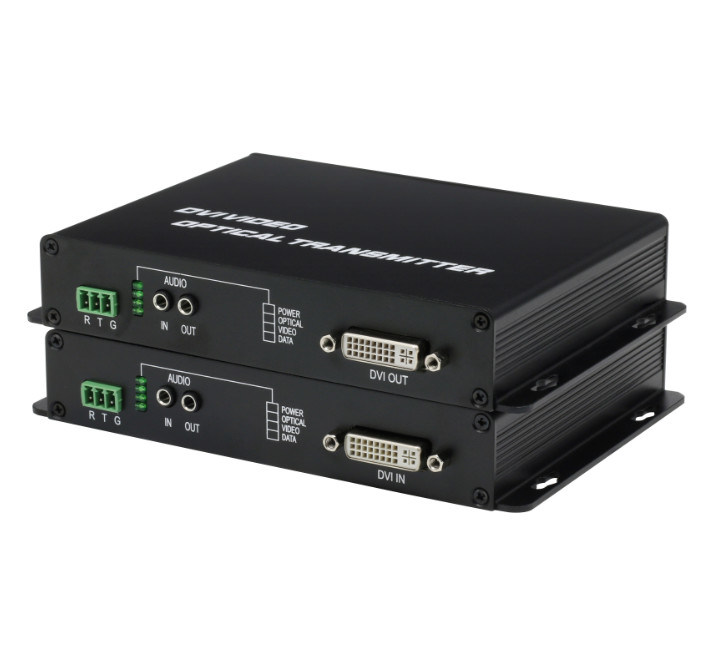

Photo show:

HD DVI To Fiber Converter Transfer Signal Source To Long Distance Terminal

Specification:









Parameter Description
Video Standards DVI 1.0; HDCP 1.2
  Maximum pixel clock 165MHz
  Maximum data rate 6.75Gbps
  Resolution range Up to 1920X1200@60Hz
  Connector DVI-D
  Impedance 100Ω
Optical fiber Interface SFP model – LC connector
  Fiber type Single-mode
  Wavelength Single-mode 1310nm(optional)
  Interface bandwidth 10Gbps
  Transmission distance Single-mode fiber: standard 2km;maximum 10km
Other Power supply The power adapter: DC 5V/2A
  Power dissipation MAX 5W
  Temperature Operating: -5 ~ +70
  Humidity Operating: 5% ~ 90%
  The warranty 3 year free warranty























Applications:

  • Police and safe city monitoring system
  • Express way security protection and toll station system
  • City traffic monitoring system
  • Building and campus monitoring system
  • Industrial monitoring (airport, chemical plant, railway, etc.)
  • Military monitoring (frontier defense, national defense)
  • Electronic power oil field, TV station program broadcasting
  • Gymnasum (live video and audio transmission)
