1080P DVI Fiber Optic Extender 1Channel DVI+1CH Outside Audio+1Ch RS232/RS422 Data

China 1080P DVI Fiber Optic Extender 1Channel DVI+1CH Outside Audio+1Ch RS232/RS422 Data supplier
1080P DVI Fiber Optic Extender 1Channel DVI+1CH Outside Audio+1Ch RS232/RS422 Data supplier 1080P DVI Fiber Optic Extender 1Channel DVI+1CH Outside Audio+1Ch RS232/RS422 Data supplier 1080P DVI Fiber Optic Extender 1Channel DVI+1CH Outside Audio+1Ch RS232/RS422 Data supplier 1080P DVI Fiber Optic Extender 1Channel DVI+1CH Outside Audio+1Ch RS232/RS422 Data supplier 1080P DVI Fiber Optic Extender 1Channel DVI+1CH Outside Audio+1Ch RS232/RS422 Data supplier

Large Image :  1080P DVI Fiber Optic Extender 1Channel DVI+1CH Outside Audio+1Ch RS232/RS422 Data

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-DVI-2V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: within 3 working days after payment confirmed
Payment Terms: T/T or western Union or Paypal
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Product Name: DVI To Fiber Converter Input Voltage: DC 5V,inside+ Outside-
Digital Bits Wide: 10 Bits Interface Bandwidth: 10Gbps
Power Dissipation: MAX 5W Corlor: Black

No delay uncompressed 1080P DVI to Fiber extender,1Channel DVI+1CH Outside Audio+1Ch RS232/RS422 data,20KM,LC,with EDID,HDCP



1080P DVI Fiber Optic Extender 1Channel DVI+1CH Outside Audio+1Ch RS232/RS422 Data



Overview:



  1-channel DVI/VGA video signal and 1-channel stereo audio and 1-ch data RS232 over one fiber, single mode or multimode, without compression, scaling and adjustments. It is ideal for Digital signage, broadcast or corporate studio, auditorium, stadium and theater, airport or transportation hub, distance learning, and surgical or medical imaging applications, to name a few.

   This product with three output ports, and you can choose one of them to use at a time as you demand, the functions of the port as followings:
1.DVI output, connect the DVI devices using a DVI cable.
2.HDMI output, connect the HDMI devices using a HDMI cable.
3.VGA output, connect the VGA devices using a VGA cable.









Main features:




  • Transmits DVI video signals up to 2km-10km over one fiber optic cable;
  • Support video resolution up to 1920*1200@60Hz;
  • Support copy EDID, can match many kind display device;
  • Compliance with DVI 1.0 and HDCP 1.2 standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play;











Specification:









Parameter Description
Video Standards DVI 1.0; HDCP 1.2
  Maximum pixel clock 165MHz
  Maximum data rate 6.75Gbps
  Resolution range Up to 1920X1200@60Hz
  Connector DVI-D
  Impedance 100Ω
Optical fiber Interface SFP model – LC connector
  Fiber type Single-mode
  Wavelength Single-mode 1310nm(optional)
  Interface bandwidth 10Gbps
  Transmission distance Single-mode fiber: standard 2km;maximum 10km
Other Power supply The power adapter: DC 5V/2A
  Power dissipation MAX 5W
  Temperature Operating: -5 ~ +70
  Humidity Operating: 5% ~ 90%
  The warranty 3 year free warranty

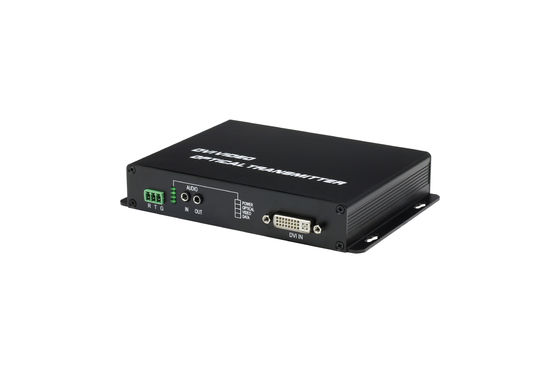

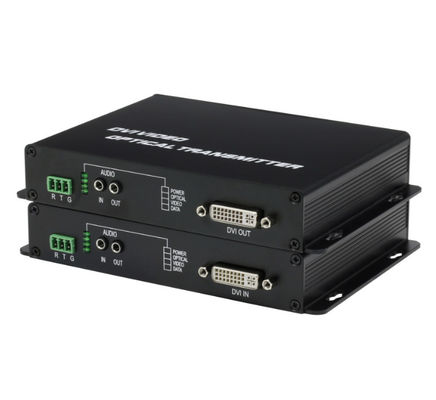

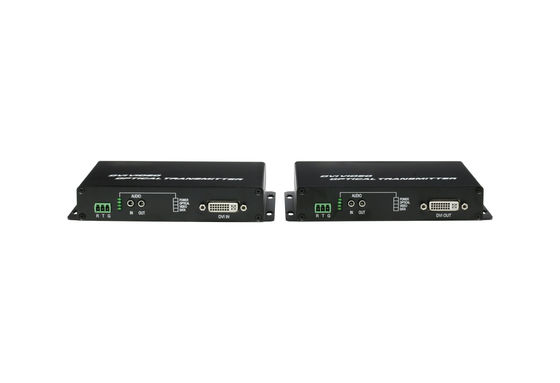

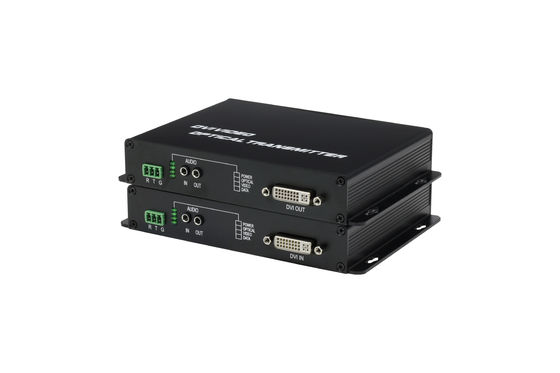

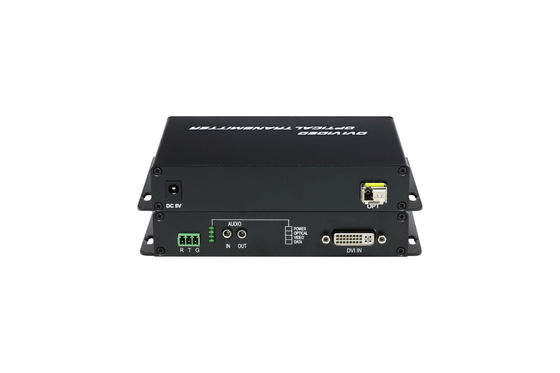

Pannel



Transmitter:

supports DVI audio transmission DIV-D Uncompressed Video Fiber Optical Converter







Receiver:



supports DVI audio transmission DIV-D Uncompressed Video Fiber Optical Converter





Port name Description
DVI IN/OUT DVI signal input/output
EDID EDID button, press 3 second to copy EDID of display device
DC/5V Power adapter socket
FIBER SFP model --- LC connector
LED indicator Description
L Optical fiber signal connection indicator
S Video signal connection indicator
P System power indicator









Applications:

  • Police and safe city monitoring system
  • Express way security protection and toll station system
  • City traffic monitoring system
  • Building and campus monitoring system
  • Industrial monitoring (airport, chemical plant, railway, etc.)
  • Military monitoring (frontier defense, national defense)
  • Electronic power oil field, TV station program broadcasting
  • Gymnasum (live video and audio transmission)













Shipping and packing:





The shipping route is DHL,TNT,UPS,EMS etc.

International standard package

shipped: 2-3 working days after payment








Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China
Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03





   We have a large number of HD video converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.







Company Information


      Holink Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China.We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

      Every month,we can turn out 10,000 units of above products.Before production,our raw mattrials are checked again to make sure they are compliant with RoHS Directives.And all our output is CE and FCC-marked,our first class brand products have long enjoyed good reputation among United Kingdom,Spain,Italy,Poland,Turkey,The US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vienam and India.



1080P DVI Fiber Optic Extender 1Channel DVI+1CH Outside Audio+1Ch RS232/RS422 Data



FAQ

How could I get samples?

Samples are available , we can arrange it to you after we received the payment of samples , most of our customers use paypal , West Union for the payment .

How much the courier freight will be for the samples?
Courier freight depends on the quantity, weight and carton size and your area.

How can I get your price list?

Please send us an inquiry for our price list and order information.
Can we have our logo or company name to be printed on your products or the package?
Yes, you can. We can print your Logo and company name etc in our products by silk screen printing according to your artwork design, normally the MOQ is 500pcs . You can send us the artwork by email in JPG, TIF, AI, EPS, TIFF or CorelDraw formats.

What's your usual payment term for orders?

We accept terms of paypal /WU / TT in advance

Converter:
We offer HDMI converter /SDI converter /DVI/VGA/AV/YPbPr relative converters , and similar products as HDMI splitter /HDMI swither/HDMI matrix .
