1 channnel 20KM Extend distance dvi to video converter , Simplex Fiber audio over fiber converter

China 1 channnel 20KM Extend distance dvi to video converter , Simplex Fiber audio over fiber converter supplier
1 channnel 20KM Extend distance dvi to video converter , Simplex Fiber audio over fiber converter supplier 1 channnel 20KM Extend distance dvi to video converter , Simplex Fiber audio over fiber converter supplier 1 channnel 20KM Extend distance dvi to video converter , Simplex Fiber audio over fiber converter supplier 1 channnel 20KM Extend distance dvi to video converter , Simplex Fiber audio over fiber converter supplier 1 channnel 20KM Extend distance dvi to video converter , Simplex Fiber audio over fiber converter supplier 1 channnel 20KM Extend distance dvi to video converter , Simplex Fiber audio over fiber converter supplier

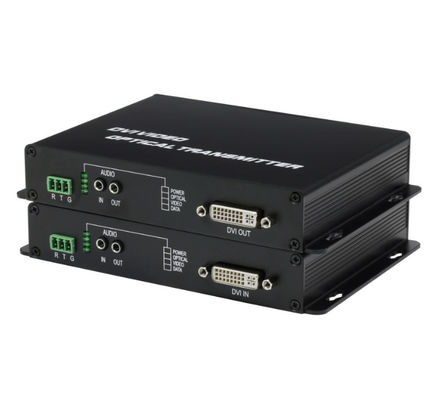

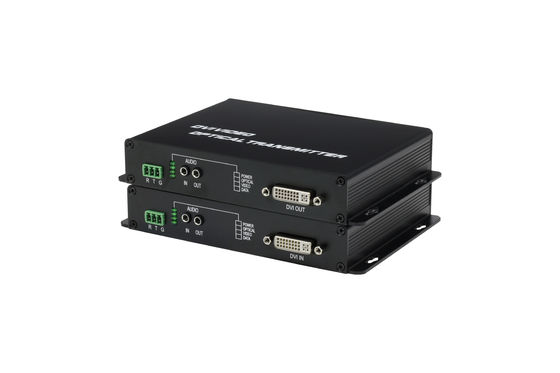

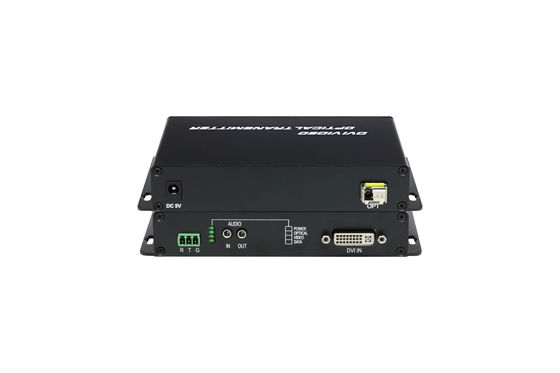

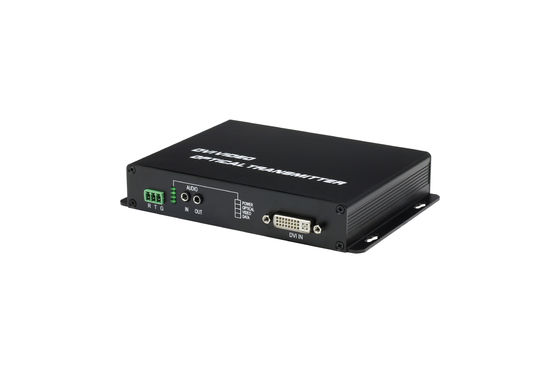

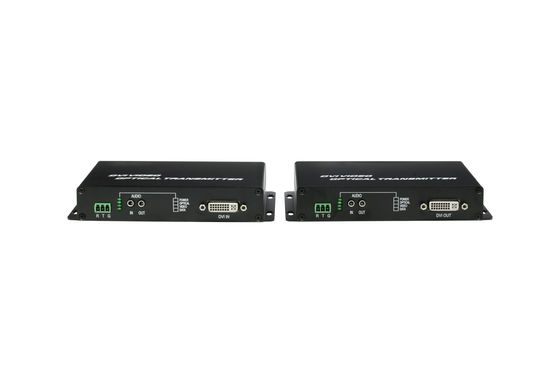

Large Image :  1 channnel 20KM Extend distance dvi to video converter , Simplex Fiber audio over fiber converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-DVI-1V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: within 3 working days after payment confirmed
Payment Terms: T/T or western Union or Paypal
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Product Name: DVI Over Fiber Converter Application: Multimedia Publishing System
Size Of Converter: 16cm*11cm*3cm Max Resolution: 1920*1080
Optical Wavelength: 1310nm,1550nm Fiber Interface: LC Connector


1 Channel Forward DVI Video & Audio & RS232 to Fiber Converter for Advertising ,Support 1080P@60Hz,3G Fiber Bandwidth




Overview:

     H-DVI-1V1D1A-T/RL Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced.
It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR and various resolution DVI signal…) to long distance terminal easily,with strong anti-interferance performance,ensure the signal completed and stable









Main features:

1, Full digital, Uncompressed HD optical fiber transmission


2, Support Full HD 1920*1080@60Hz


3, The attenuation of optical module SFP low to -3db


4, Support DVI 1.3b Protocal


5, Support KVM


6, Automatic equalization inside, stable and clear graphics.


7, ESD protection circuit inside, to ensure the ESD damage.


8, Easily to installation, plug and play, no need to set up


9, Transmit 1-Ch DVI video & 1-ch stereo audio & 1-CH RS232 DATA over one fiber









Specifications:


Product: DVI over fiber converter
Item No: H-DVI-1V1D1A-T/RL
Video Interface DVI
Fiber Simplex, LC, Single Mode
Power AC85-260V/50Hz/DC12V1A
Consumption 〈5w
Environment Working temperature: 0 ℃~+85 ℃; Working Humidity: 0 ~ 95% (non-condensing)
Warranty 3 Years
Connector of the Tx: 1x DVI input, 1x Audio input, 1x LC input, 1x DC input, 1x RS232
Connector of the Rx: 1x DVI output,1x Audio output, 1x LC input,1x DC input, 1x RS232
DVI resolution: 1920*1080
Extend distance: 20KM
Packing in the box: Transmitter x1 Pcs,Receiver x1 Pcs Power Adapter x2 Pcs








Each LED indicator lamp:


Indicator Light DVI Transmitter DVI Receiver
VIDEO On Video signal on
Off Video signal off
LOCK On Fixed video signal
Off Not fixed video signal
RUN On Device works smoothly
Off Device not works smoothly
POWER On Power on
Off Power off











1 channnel 20KM Extend distance dvi to video converter , Simplex Fiber audio over fiber converter



Shipping and packing:

4ch HD DVI digital video to fiber optic media converter, 10km on SMF4ch HD DVI digital video to fiber optic media converter, 10km on SMF







1 channnel 20KM Extend distance dvi to video converter , Simplex Fiber audio over fiber converter
