2chanel 1080P/60Hz Lossless Dvi fiber converter Cable Single Mode with KVM audio

China 2chanel 1080P/60Hz Lossless Dvi fiber converter Cable Single Mode with KVM audio supplier
2chanel 1080P/60Hz Lossless Dvi fiber converter Cable Single Mode with KVM audio supplier 2chanel 1080P/60Hz Lossless Dvi fiber converter Cable Single Mode with KVM audio supplier 2chanel 1080P/60Hz Lossless Dvi fiber converter Cable Single Mode with KVM audio supplier 2chanel 1080P/60Hz Lossless Dvi fiber converter Cable Single Mode with KVM audio supplier

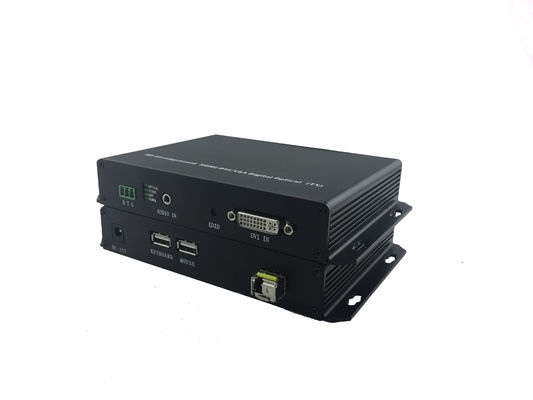

Large Image :  2chanel 1080P/60Hz Lossless Dvi fiber converter Cable Single Mode with KVM audio

Product Details:

Place of Origin: China(mainland)
Brand Name: Holink
Certification: CE FCC RoHS
Model Number: HL-DVI-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pair
Price: Negotiation
Packaging Details: international standard package
Delivery Time: 1-5 working days after mayment confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000Pairs one month
Contact Now
Detailed Product Description
Distance: 20KM Place Of Origin: Shenzhen(Mainland)
Bandwidth: 380MHz Voltage: 5V DC
Input: 100-240VAC Quality: High Quality

Long Distances Dvi To Fiber Converter Transceiver Receiver Over One Fiber Optic Cable Single Mode / Multimode







 Overview:

      The product consists of a sender and a receiver which showed on the case,it can expand the signal DVI/RS232 to somewhere remote by Single-core optical fiber,the high-speed Optical FPGA technology has been used that converting DVI signal into an optical fiber signal transmission 3G resolution up to 1920*1080@60Hz, max distance 10KM.Widely used in a variety of industries and areas of security monitoring, hospitals, banks, splicing systems, multimedia information release system.

      The DVI KVM Extender 20km could transmission high-definition video long distance through a single fiber cable , external independent audio and USB keyboard ,mouse functions, can adapt to a variety of complex applications. The Single Fiber Optic Cable SC/FC VGA KVM Extender 20km device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient DVI singnals to extend the way.

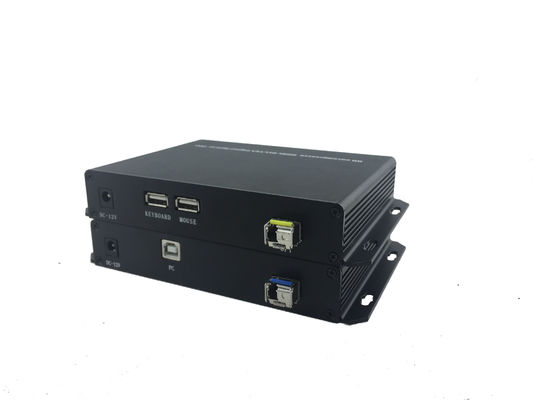

 2chanel 1080P/60Hz Lossless Dvi fiber converter Cable Single Mode with KVM audio

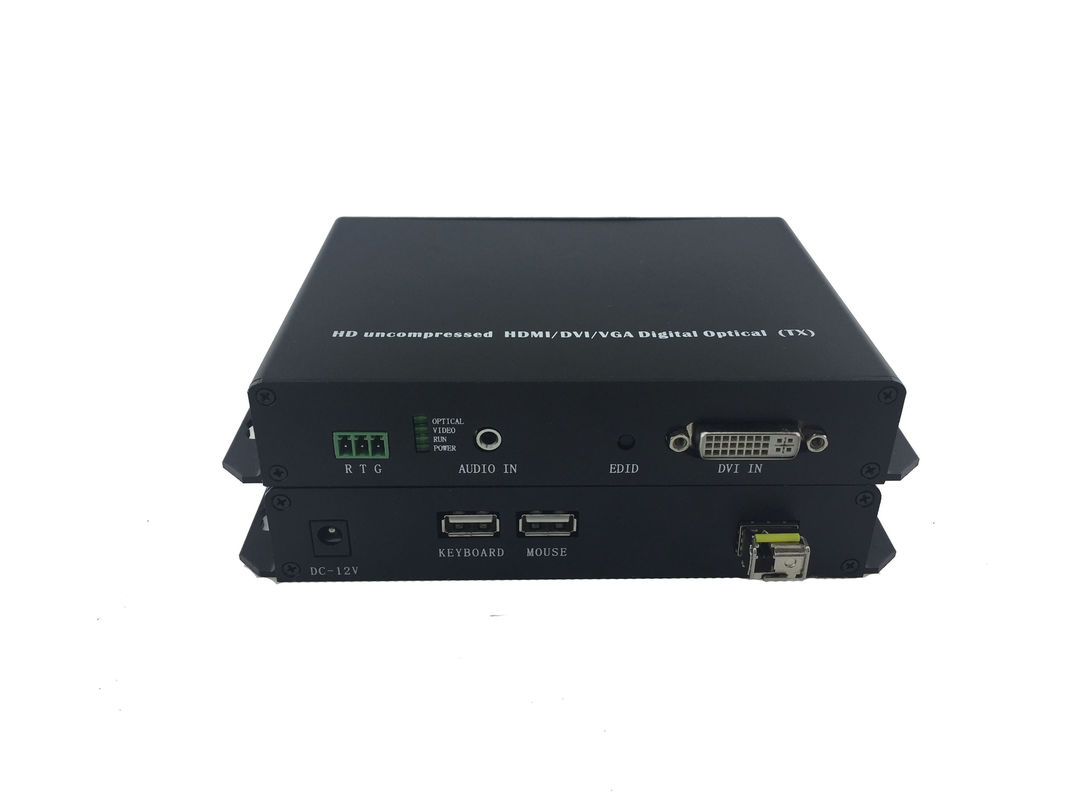

2chanel 1080P/60Hz Lossless Dvi fiber converter Cable Single Mode with KVM audio

Feature:

1. .Transmit DVI video and audio over long distances through the Fiber, up to 20KM or DVI port. To extender the audio/video info to display by network.
2. .The highest resolution HD video signals up to 1080P @ 60Hz
3. Built-in ESD Protection Circuit, comprehensive protection system security
4. Supports audio input and output, Provide one mic and audio interface.
5. Supports mirror desktop and extended desktop video modes.
6. Installs in minutes
7. Need DC5V/2A power supply


Product Specification:


Performance:
Compliance DVI v1.0, HDMI v1.4, HDCP v1.4
Maximum Pixel Clock Frequency Supports pixel clock rates up to 340 MHz
Maximum Video Bit Rate Supports digital signal bit rates up to 3.4 Gbps per color
Supported Color Depth Supports 1080p resolution with up to 16 bits/pixel
Supported HDTV Formats Supports all HDTV resolutions including 1080p, 2K and 4K (UHD) formats
Optical:
Optical Transmitter Laser Source: 1310nm FP / 1310nm DFB / 1550nm DFB
Fiber Cable Type / Max. Length 50/125μm multi-mode optical fiber / 350 meters
9/125μm single-mode optical fiber / 10km
Connectors:
HDMI Input / HDMI Output 19-pin female HDMI connectors
Optical Input / Output Duplex female LC optical connectors
Environmental:
Operating Temperature +32°to +122°F. (0°to +50°C.)
Storage Temperature -4°to +158°F. (-20°to +70°C.)
Humidity (storage/operating) 10% to 90% (non-condensing)
Power Requirements:
External AC Power Adapter Input: 100~240VAC / 50-60Hz, 0.5A Output: 5VDC, 2.0A
Maximum Power Consumption TX Unit: 3.5 watts RX Unit: 3.5 watts





Application

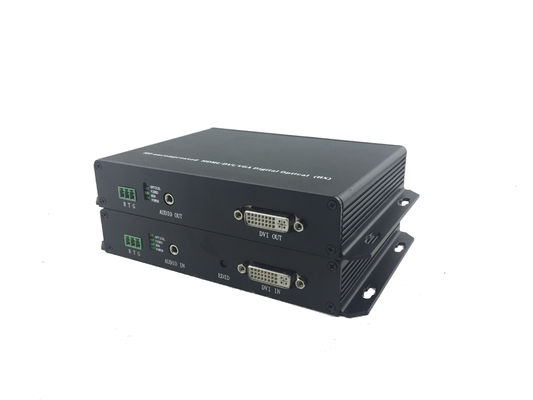

 2chanel 1080P/60Hz Lossless Dvi fiber converter Cable Single Mode with KVM audio

shipping and packing:



  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
