Payment & Shipping Terms:
|Distance:||20KM||Place Of Origin:||Shenzhen(Mainland)|
Long Distances Dvi To Fiber Converter Transceiver Receiver Over One Fiber Optic Cable Single Mode / Multimode

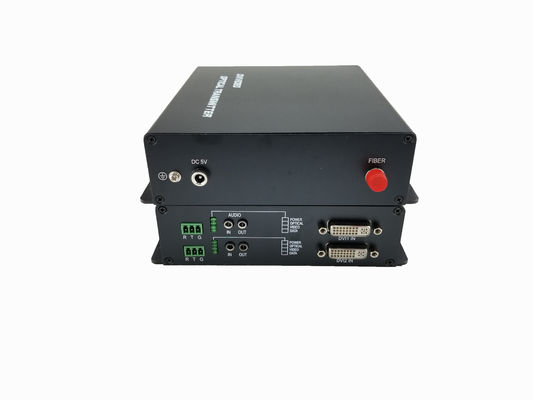

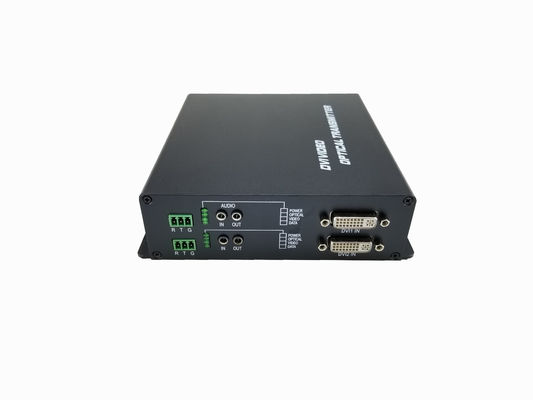

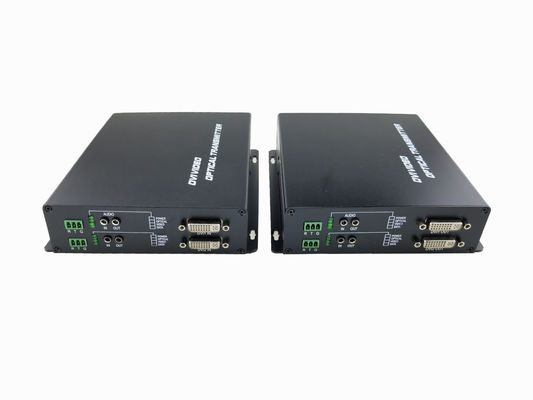

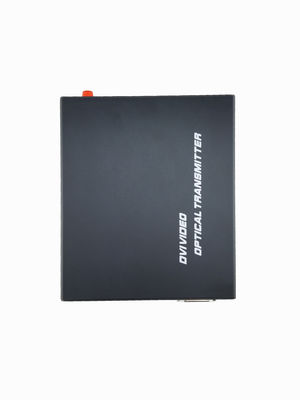

The product consists of a sender and a receiver which showed on the case,it can expand the signal DVI/RS232 to somewhere remote by Single-core optical fiber,the high-speed Optical FPGA technology has been used that converting DVI signal into an optical fiber signal transmission 3G resolution up to 1920*1080@60Hz, max distance 10KM.Widely used in a variety of industries and areas of security monitoring, hospitals, banks, splicing systems, multimedia information release system.
The DVI KVM Extender 20km could transmission high-definition video long distance through a single fiber cable , external independent audio and USB keyboard ,mouse functions, can adapt to a variety of complex applications. The Single Fiber Optic Cable SC/FC VGA KVM Extender 20km device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient DVI singnals to extend the way.
1. .Transmit DVI video and audio over long distances through the Fiber, up to 20KM or DVI port. To extender the audio/video info to display by network.
2. .The highest resolution HD video signals up to 1080P @ 60Hz
3. Built-in ESD Protection Circuit, comprehensive protection system security
4. Supports audio input and output, Provide one mic and audio interface.
5. Supports mirror desktop and extended desktop video modes.
6. Installs in minutes
7. Need DC5V/2A power supply
|Compliance||DVI v1.0, HDMI v1.4, HDCP v1.4|
|Maximum Pixel Clock Frequency||Supports pixel clock rates up to 340 MHz|
|Maximum Video Bit Rate||Supports digital signal bit rates up to 3.4 Gbps per color|
|Supported Color Depth||Supports 1080p resolution with up to 16 bits/pixel|
|Supported HDTV Formats||Supports all HDTV resolutions including 1080p, 2K and 4K (UHD) formats|
|Optical Transmitter||Laser Source: 1310nm FP / 1310nm DFB / 1550nm DFB|
|Fiber Cable Type / Max. Length||50/125μm multi-mode optical fiber / 350 meters
9/125μm single-mode optical fiber / 10km
|HDMI Input / HDMI Output||19-pin female HDMI connectors|
|Optical Input / Output||Duplex female LC optical connectors|
|Operating Temperature||+32°to +122°F. (0°to +50°C.)|
|Storage Temperature||-4°to +158°F. (-20°to +70°C.)|
|Humidity (storage/operating)||10% to 90% (non-condensing)|
|External AC Power Adapter||Input: 100~240VAC / 50-60Hz, 0.5A Output: 5VDC, 2.0A|
|Maximum Power Consumption||TX Unit: 3.5 watts RX Unit: 3.5 watts|
