8 channel uncompressed DVI forward video to fiber converter + 8 ch RS232+ 8 channel audio

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

8 channel uncompressed DVI forward video to fiber converter + 8 ch RS232+ 8 channel audio

China 8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio supplier
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio supplier 8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio supplier 8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio supplier 8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio supplier

Large Image :  8 channel uncompressed DVI forward video to fiber converter + 8 ch RS232+ 8 channel audio

Product Details:

Place of Origin: China
Brand Name: Ho-link
Certification: CE FCC ROHS
Model Number: HL-DVI-8V8D8A-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: neutral packing
Supply Ability: 100 pairs per month
Contact Now
Detailed Product Description
Wavelength: 1310/1550nm Product Name: Video Digital Optical Converter
Transmission Distance: 20km Warranty: 3 Years
Fiber Type: Single Mode Single Fiber Input/output Impedance: BNC 75Ω (unbalance)
Operating Temperature: 0℃ To +70℃ Power: DC 5V2A
Color: Black Distance: 20km
Video Interface: BNC

Product Description
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio

Ho-Link DVI video over fiber converter adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced.It can transfer signal source(1ch DVI-D video,1ch analog audio and 1ch RS232 ) to long distance terminal easily, with strong anti-interference performance, ensure the signal completed and stable.Widely used in broadcasting, video conferencing, medical teaching, Education recording and broadcasting, security monitoring and other demanding industries on the video.

Video Parameter
Signal standard
UXVGA;SXGA;XGA;SVGA
Format
DVI-D
Bandwidth
300MHZ
Tx Input/Rx Output level
1VP-P
Sampling Digit
10Bit
Support Resolution
1920*1200@60HZ;1920*1080@60HZ/50HZ;
1920*1080@30HZ/25HZ;1600*1200@60HZ;
1280*1024@60HZ;800*600@60HZ;640*480@60HZ
Connector
24+5 DVI-I Female
Tx Output power/Rx Sensitivity
-5~-10Dbm/-20Dbm
Input/Output
Analog Audio
Connector
3.5MM Jack
Format
44.1K,48K,96K,176K,192K

Features



Full digital, Uncompressed HD optical fiber transmission

Independent bi-directional analog audio

Support Full HD,1920*1200@60HZ

Support SFP Module,LC Connector

Support EDID automatic reading

Support DVI 1.0 Protocal

Automatic identification and configure display mode

Automatic equalization inside, stable and clear graphics

Built-in ESD protection circuit, can effectively prevent static electricity loss

Easily to installation, plug and play, no need to set up



8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio

User instructions

1. This product supports DVI-D signal, HDMI interface, display or signal source does not guarantee that all signals are compatible, if your front-end equipment is the HDMI interface, we recommend that you use the companys HDMI optical transceiver.

2. Follow the instructions to connect the device correctly.

8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio

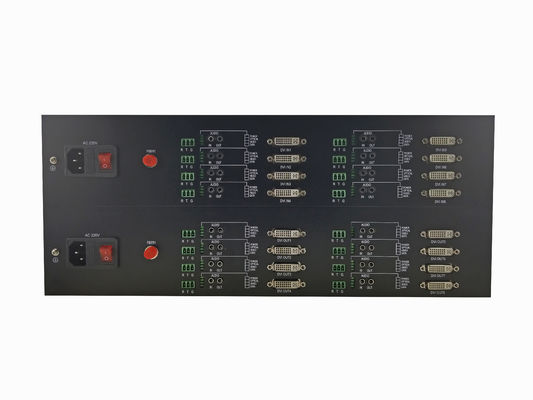

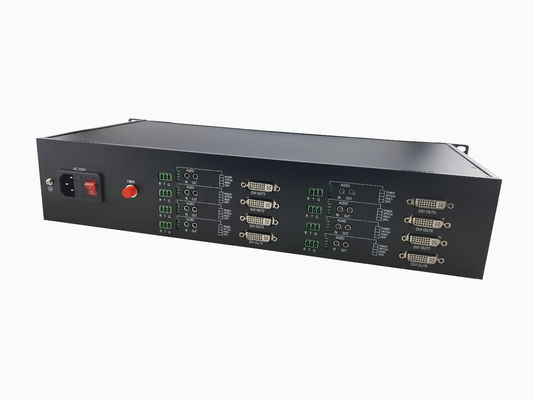

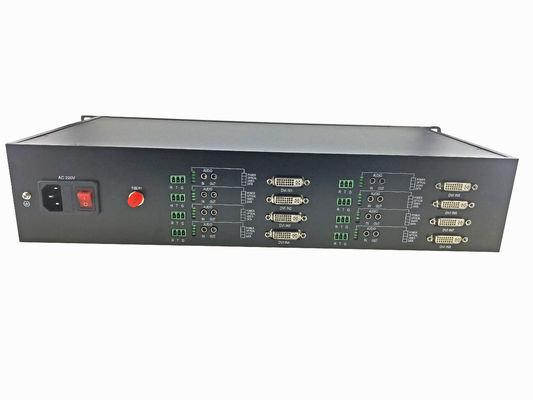

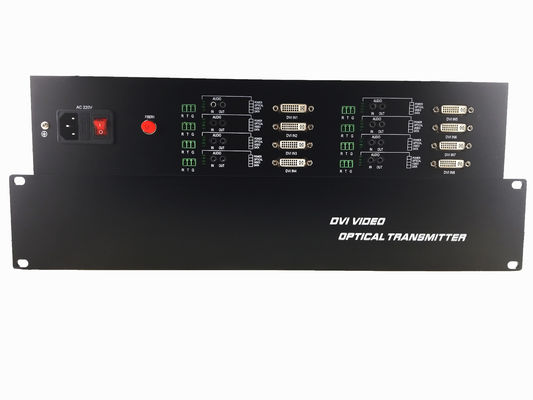

Detailed Images
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
Other Products
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
Our Company
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China.We manufacture full range fiber optic transmission products , from 4K UHD SDI/4K HDMI/3G SDI/HD SDI/ASI/HDMI/VGA/DVI/TVI/CVI/AHD/CVBS|Ethernet Media Converter|SFP Transceiver. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month,we can turn out 10,000 units of above products.Before production,our raw mattrials are checked again to make sure they are compliant with RoHS Directives.And all our output is CE and FCC-marked,finding good markets in many countries and regions including United Kingdom,Spain,Italy,Poland,Turkey,The US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.

Certifications
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
Packing & Delivery
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
8 channel uncompressed DVI forward video to fiber converter + 8 ch  RS232+ 8 channel audio
Our most professional packaging

Transport of large trucks to the seaport

And international transport cooperation

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
