Hot Selling Audio Transmission 3G SDI Converter For Security Monitoring System 1080P / 60Hz
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 3G-SDI To Fiber Converter | Application: | Network, Telecommunications |
|---|---|---|---|
| Support Resolution: | 1920X1080@60fps | Fiber Optical: | Simplex FC |
| Certification: | CE,ROHS,FCC/ISO9001 | Single-mode Wavelength: | 1310nm/1550nm |
| Highlight: | hd sdi receiver,cctv camera video converter |
||
(MINI) 3G-SDI to fiber video converter,180mm x 123mm x 30mm support 1080p/60hz
System Design
Fiber Optic Video Transmitter & Receiver
HD-SDI series can transmission 2-Channel
HD-2HD-20/3G-SDI video over 1 single core fiber.
Stand-alone or rack-mounted optional
The HD-SDI cards (W/O metal case )
Can be inserted into our 16-slot, 19inch 2U
Rack-mountable chassis with redundant power
(HD-SDI-2U).
Single-Mode or Multi-Mode
HD-SDI units are designed to support LC /PC
Optical connector ( We will offer free patch cord + adaptor
for your request for SC/PC or ST/PC or FC/PC optical connector ).
The Transmission distance Range according to the
Optical Budget. Manufacturer's default standard
Is single mode 20Km .
Features
•1 Video of HD-2HD-20/3G-SD can be transmitted via 1 single fiber
•The Max rate of work is 3.2Gb/s
• Support SMPTE 292M (2.9Gb/s) clock recovery
• Support standard of 270Mbps(SD-SDI) ,1.485Gbps/M(HD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)
• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)
• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)
• LED Status Indication to monitor the working conditions
• video transmission system can support many application branches structure
•The fiber port Support SFP transceiver hot-plugged
•The SDI video format support:
625/25 PAL
525/29.97 NTSC
525/23.98 NTSC
720p50,720p59.94
1080P 23.98/24/30/50/60
1080i 23/24/30/50/59.94
Application Dialogue:
Applications:
►Intelligent transport monitoring system
►safety and security monitoring system
►campus network, industrial monitoring (electric power, chemical industry, steel, oil, railway and water conservancy etc.)
►military monitoring (warehouse, guard and confidentiality etc.) TV program transfer system
Specifications
| Parameter | Description | |
| Video | connector | BNC |
| The interface bandwidth | 1.4835Gbps,1.485Gbps,2.97Gbps | |
| impedance | 75Ω | |
| Resolution |
1920*1080@60Hz; 1920*1080@50Hz; 1920*1080@30Hz; 1920*1080@25Hz; 1920*1080@24Hz; 1280*720@60Hz; 1280*720P@50Hz; 525i; 625i |
|
| RS485 | connector | Industrial terminals |
| Baud rate | Self-adaptive, Max:115200bps | |
| Optical fiber | Self-adaptive, Max:115200bps | LC/SC |
| Wavelength | Single-mode 1310nm | |
| Transmission distance | Single-mode:3/20/40/80km | |
| Other | Power | Power adapter:DC 5V/2A |
| Power dissipation | MAX 2.5W | |
| Size | 120mmX97.5mmX25.2mm | |

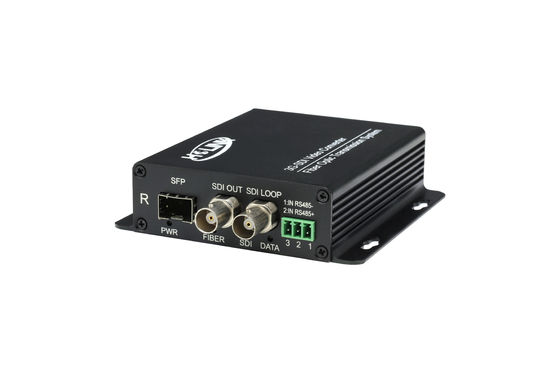

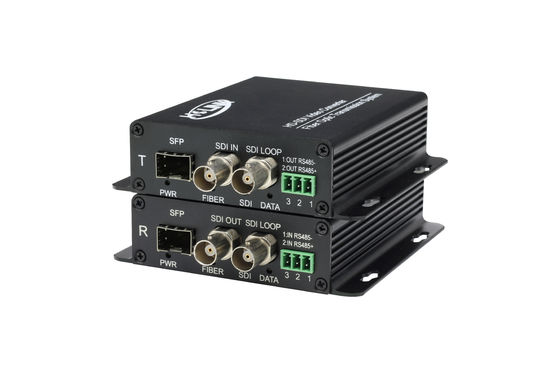

Photo Display
