SDI series can transmission 1/2/4/8-Channels SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

SDI series can transmission 1/2/4/8-Channels SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.

China SDI series can transmission 1/2/4/8-Channels SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber. supplier
SDI series can transmission 1/2/4/8-Channels SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber. supplier SDI series can transmission 1/2/4/8-Channels SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber. supplier

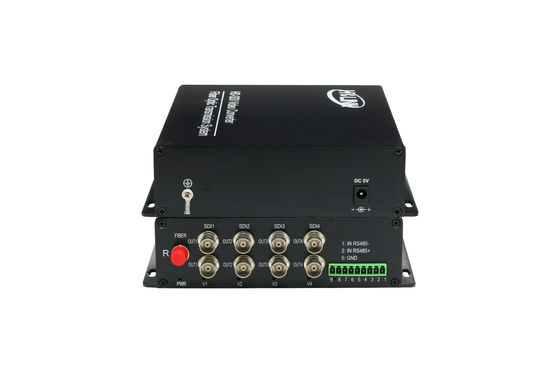

Large Image :  SDI series can transmission 1/2/4/8-Channels SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: within 3 working days after payment confirmed
Payment Terms: TT,Western Union.Paypal
Supply Ability: 10000pairs/year
Contact Now
Detailed Product Description
Transmission Distance: Standard 10km Product: HD-SDI To Fiber Converter
Fiber Port: FC/LC/ST Resolution Range: Up To 1920X1080P@60Hz
Data Rate: 1.485Gbps Dimension: 85mm X 76mm X 30mm



HD SDI to Fiber Converter




Product Description



System Design Fiber Optic Video Transmitter & Receiver



SDI series can transmission 1/2/4/8-Channels

SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.







Single-Mode or Multi-Mode



SD-SDI/HD-SDI/3G-SDI units are designed to support LC /PC Optical connector

We will offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical

connector.



The Transmission distance Range according to the Optical Budget.



Manufacturer's default standard is single mode 20Km .











Product features



1. It is compatible with SDI and ASI signal, SDI/ASI signal adaptive



2. In accord with SMPTE259M, SMPTE297M, SMPTE310, SMPTE305( SDTI ) standard


3. Automatic adaptation of SDI143Mbps,177 Mbps,360270Mbps, Mbps,540Mbps,1.48Gbit,3Gbit rate


4. High precision PCR correction, the average PCR jitter are usually kept in20~60ns


5. The transmitter output optical power0~-14dBm (according to the actual chain loss for determining transmission power )


6. According to the Pathological ( extreme harsh environment test )


7. Support 1080P/1080I/720P; applicable to high-definition SDI monitoring system and broadcasting system.


8. Double power supply redundancy backup


9. The whole surface mount technology



10. All digit, no-compress, high definition optical transmission


11. Support 1 channel DVI high definition vedio transmission


12. Compatible support HDMI 1.3b standard


13. Automatic identify and configurate various display mode


14. Support UXGA 1600*1200/WUXGA 1920*1200@60Hz, HDTV 1080p 2048*1080@60Hz resolution ratio, the max bandwidth 5.4Gbps


15. Max support 12bi color depth


16. Max pixel clock 225MHz


17. Built-in auto equalization and re-fixed time function, frames clear and steady


18. Support E-DDC display mode memory and remote read function, guarantee display mode load correct at any time


19. Giga optical transmission technology, high-capacity, easy to upgrade


20. Optical WDM/CWDM/DWDM technology


21. Single mode, multimode fiber transmission


22. No need software set, support plug and play, and hot plug


23. Built-in surge and static protection, three-level lightning protection design


24. Apply to extreme hot and low temperature etc Industrial harsh environment


25. Surface mount technology


26. Industrial design, high reliability


27. Support custom and OEM for users










SDI series can transmission 1/2/4/8-Channels SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.



Application

1. The city intelligent traffic monitoring system ( ITS ), safe city
2. The expressway monitoring system, road monitoring, electronic snapshot system
3. In large factories, network security monitoring system of multi function system
4. Remote multimedia teaching / campus monitoring system, video conference system
5. The long distance radio and television, high quality video and audio transmission system
6. The building intercom, military communications, military control






Specification:



Serial TV, BNC Input Signal standard: SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and Telecom/Datacom
rate 1.485Gb/s)
Input number: 1
Reflection loss: >15DB
Equilibrium: 0-150m @1.485Gb/s
Connector: FC/PC(SC/PC optional)
Optics Channel: 1
Type: SM/MM
Wavelength: 1310nm /1550nm
Trasmission distance 0-80Km
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: FC/PC (SC/PC optional)
Serial TV, BNC output (EO/OE) Output number:1
Signal level: 800mV nominal
Rise/fall time: 200ps indication
Overshoot: < 10% amplitude
Reflection loss: >15dB
Dithering: < 0.2UI
Connector: 75Ω BNC
Data Channel: 1
Data format: RS-485/422/RS232 (full/half duplex) and support NRZ, RZI and Manchester
Data rate: DC to 100 Kb/s
Mode: Full/half duplex
Connector: wire connecting terminal
Power and environmental indication Operating temperature: -40℃~+85
Pressure: 1A@12VDC
Power: 12 W
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
Average time trouble-free: >100000 hours







Application:



SDI series can transmission 1/2/4/8-Channels SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.







Shipping:

SDI series can transmission 1/2/4/8-Channels SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.



SDI series can transmission 1/2/4/8-Channels SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.
