Single Mode 1080P Video 4 Channel 3G-SDI Video to Fiber Converter

China Single Mode 1080P Video 4 Channel 3G-SDI Video to Fiber Converter supplier
Single Mode 1080P Video 4 Channel 3G-SDI Video to Fiber Converter supplier Single Mode 1080P Video 4 Channel 3G-SDI Video to Fiber Converter supplier

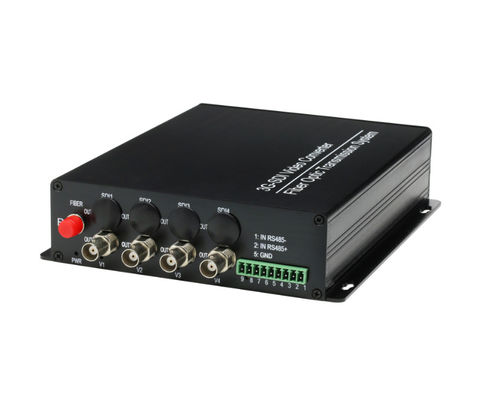

Large Image :  Single Mode 1080P Video 4 Channel 3G-SDI Video to Fiber Converter

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V-20T/R/3D-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: within 3 working days after received your payment
Payment Terms: TT,Paypal,Western Union
Supply Ability: 3000pair/month
Contact Now
Detailed Product Description
Product Name: 3G-SDI To Fiber Converter Working Range: 19.4Mb/s To 2.97Gb/s
Support Resolution: 1920X1080@60fps Wavelength: 850nm/1310nm/1550nm/CWDM
Transmission Distance: 20Km Single-mode Wavelength: 1310nm/1550nm



12W 3G SDI Video To Fiber Optic Converter BNC 75 Ohm Interface 270Mbit/S - 2.97Gbit/S




Product Description



System Design Fiber Optic Video Transmitter & Receiver



SDI series can transmission 1/2/4/8-Channels

SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.







Single-Mode or Multi-Mode



SD-SDI/HD-SDI/3G-SDI units are designed to support LC /PC Optical connector

We will offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical

connector.



The Transmission distance Range according to the Optical Budget.



Manufacturer's default standard is single mode 20Km .

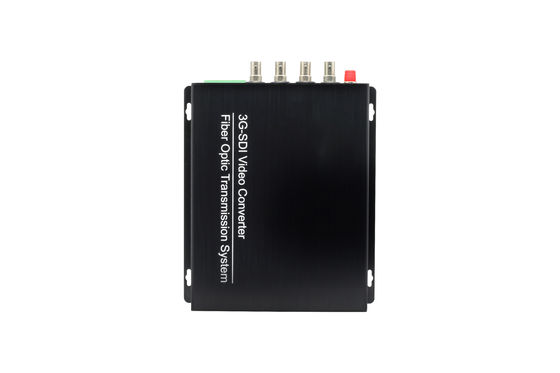

Single Mode 1080P Video 4 Channel 3G-SDI Video to Fiber Converter







Features



•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

The Max rate of work is 3.2Gb/s

Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

LED Status Indication to monitor the working conditions

Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94











Typical application

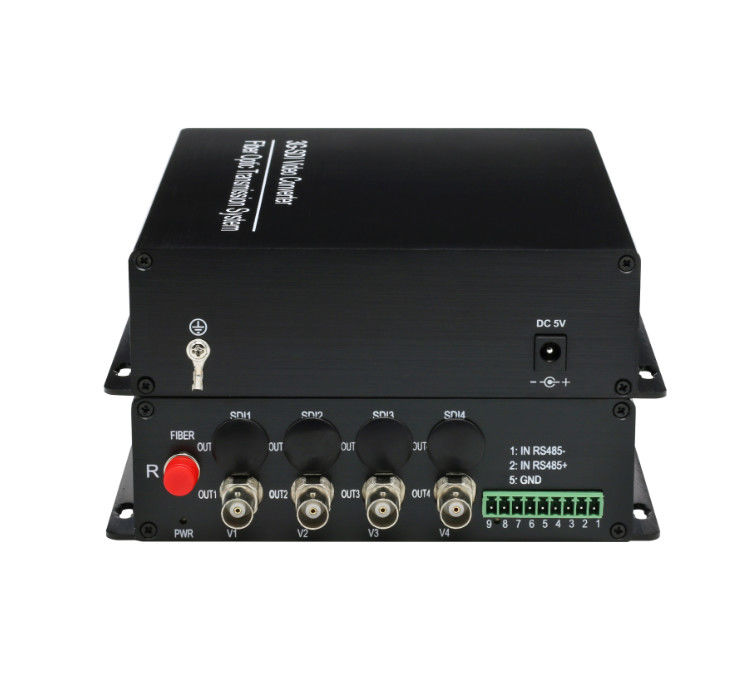

Single Mode 1080P Video 4 Channel 3G-SDI Video to Fiber Converter

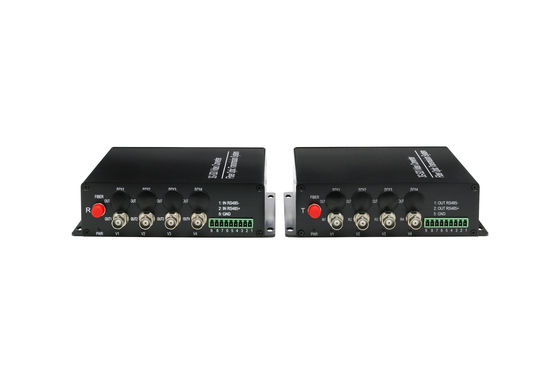

Single Mode 1080P Video 4 Channel 3G-SDI Video to Fiber Converter





Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization









Specification:



SDI input/output
Signal format SMPTE 424M,SMPTE 292M, SMPTE 259M
Data rate 270Mbit/s - 2.97Gbit/s
Cable Equalization Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s
SDI interface BNC 75 Ohm
Fiber interface FC/PC or ST/PC
Number of tranmitter channel 2
Transmitter wavelength CWDM wavelength optional
Transmitter output power -9~-3dBm(0±3dBm optional)
Number of receiver output 2
Receiver sensitivity -18dBm~0 dBm
General index
Input power AC 100~240V
Power consumption Transmitter: 12W Receiver: 12W
Work Temp -20°C to 55°C
Storage Temp -40°C to 85°C
humidity 0 ~ 95% (non-condensing)
Net weight 2kg /pair
