1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel

China 1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel supplier
1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel supplier 1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel supplier 1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel supplier 1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel supplier

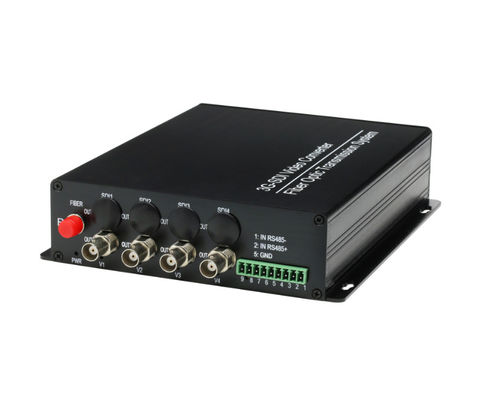

Large Image :  1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-4V-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G SDI To Fiber Converter Fiber Module: 3G SFP
Transmission Distance: 0-80KM Warranty: 3 Years
Fiber Connector: FC/SC/ST Max Rate: 2.97Gbps

Full HD 1080P 3G SDI to Fiber Converter 4Ch 1080P SDI video,180mm x 123mm x 30mm







Overview:



    Ho-link 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.

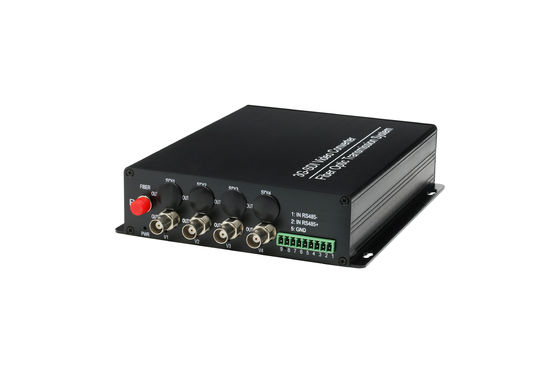

1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel



Feature:

  1. all-digital,uncompressed,HD-SDI fiber transmission.
  2. support 3G/HD/SD-SDI serial video signals
  3. support common serial rate from 270Mbps to 1.485Gbps
  4. max serial rate can reach 3.125Gbps
  5. gigabit fiber transmission,large capacity,easy to upgrade
  6. surface mount technology
  7. built-in auto equalizer,clock retiming
  8. compatible SMPTE259M,292M,344M,ITUserial digital video standard
  9. Transparent support for any RS232/485/422 communication protocols







Specification:

Model/Name HL-4V-20T/R/3D-SDI
Quantity/Type Single Mode, Single Fiber
Video port SD/HD-SDI
Transmission Distance 0m-20Km/30km/40km/60KM optional
Fiber Connector SC/FC
Wave Length 1310nm/1550nm
Transmitted power "-11dbm~-4dbm
MaximumReceiving Sensitivity <-26dbm
Signal Type SD-SDI(270Mbps)/HD-SDI(1.485Gbps)
Video Standard SMPTE259M/292M/344M/ITU
DATA comm. method RS232/422/ RS-485
Digital Audio 48KHz
Bandwidth (-3db)20Hz-20khz
Power Supply ac220v/50hz
Power Consumption 3~5 Watts
Operating Temperature Operating: -30℃ ~ +75℃
Storage Temperature Operating: -40 ~ +85
Relative Humidity 0~95% RH (Non-condensation)
Dimension 180mm x 123mm x 30mm
Weight 2kg









Application:

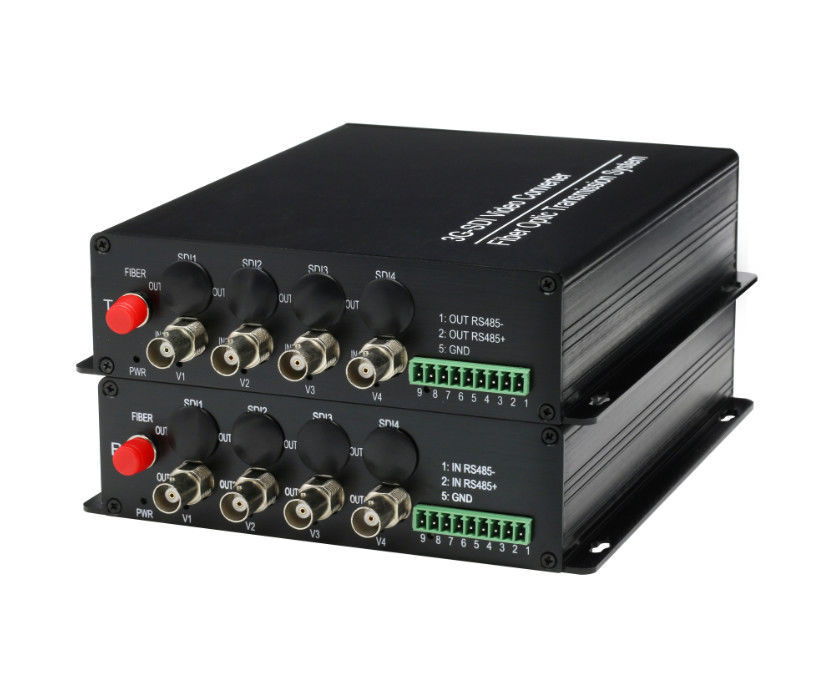

1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel







Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

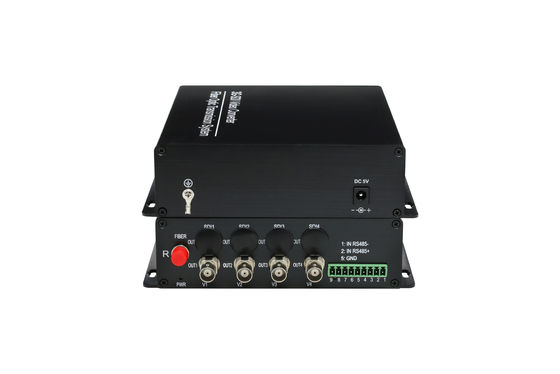

1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel





Payment



1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel



Our Services



Welcome to inquire!



1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel
