1CH Audio + Data SC 1080p Hdmi To Fiber Optic Converter Single Fiber

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

1CH Audio + Data SC 1080p Hdmi To Fiber Optic Converter Single Fiber

China 1CH Audio + Data SC 1080p Hdmi To Fiber Optic Converter Single Fiber supplier
1CH Audio + Data SC 1080p Hdmi To Fiber Optic Converter Single Fiber supplier 1CH Audio + Data SC 1080p Hdmi To Fiber Optic Converter Single Fiber supplier 1CH Audio + Data SC 1080p Hdmi To Fiber Optic Converter Single Fiber supplier 1CH Audio + Data SC 1080p Hdmi To Fiber Optic Converter Single Fiber supplier

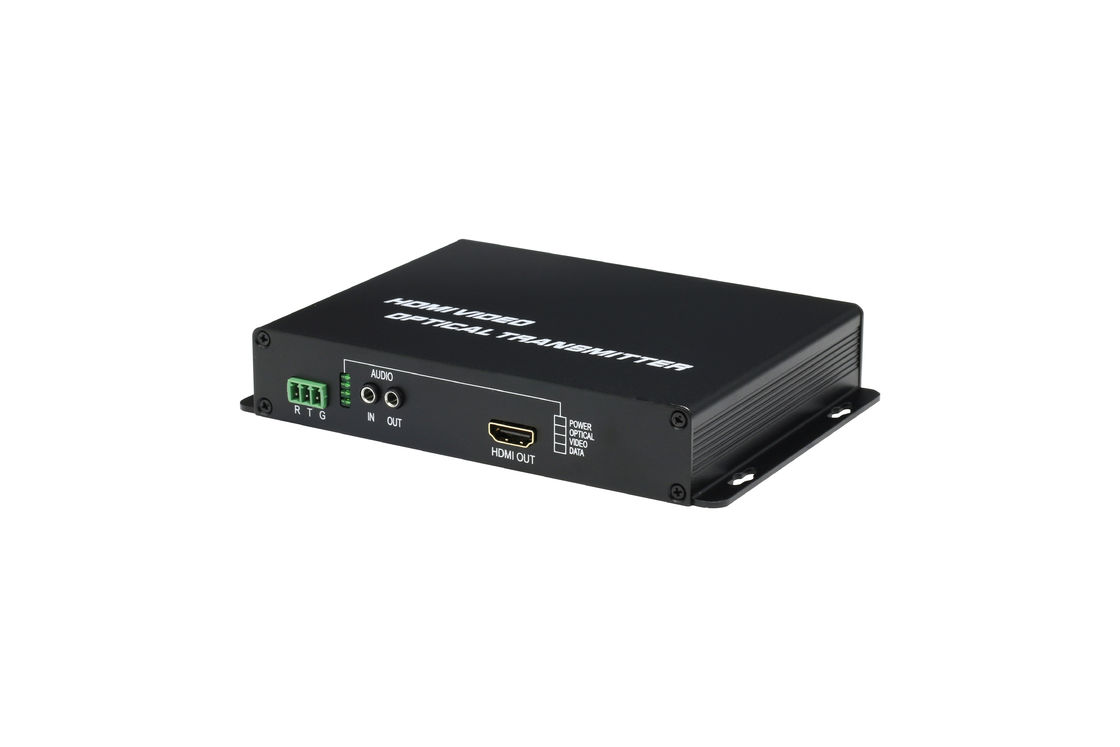

Large Image :  1CH Audio + Data SC 1080p Hdmi To Fiber Optic Converter Single Fiber

Product Details:

Place of Origin: China(mainland)
Brand Name: HOLINK
Certification: CE FCC RoHS
Model Number: HL-HDMI-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after mayment confirm
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 6000paris one month
Contact Now
Detailed Product Description
Warranty: 3 Years Fiber Type: Single Fiber /dual Fiber
Fiber Connector: Sc Fc St Wavelength: 850/1310/1550nm
Factory: Yes Power Adapter: AC100-240V


HDMI Extender Over Single Optical Fiber SC 1080p With IR (Up to 20 km) 1CH Audio + Data + Fiber Port. Single Fiber



Overview:

    This HDMI over fiber optic incorporates HDBitT transport technology, allowing you to extend 20KM distance between the source device to display end and supporting IR pass back function. It can be widely applied in video conference, medical system, shopping mall, multimedia presentation etc filed.

    This uncompressed Optical Transmitter use high-speed FPGA technology, Converted HDMI (up to 1920 X 1080@60Hz) into 3G optical signal. Maximum distance up to 20 km. For home theater, security monitoring, hospitals, prisons, banks and other applications.
 1CH Audio + Data SC 1080p Hdmi To Fiber Optic Converter Single Fiber

Features
Full digital, Uncompressed HD optical fiber transmission
Support single mode,multi mode optical transmission
Easily to installation, plug and play, no need to set up
Transmit 1080p signal up to 20KM
Support IR pas back for easy control
Avoid the electromagnetic interference in environment for long distance transmission
Low signal loss, wide frequency band and strong anti-interference
High-end aluminum alloy enclosure design
Wall-mountable design for convenient installation




Specification

Operating Temperature -5 to +35°C(+23 to +95°F)
Storage Temperature -10°C~70°C(+14 to +158°F)
Operating Humidity 10 to 90%RH (No Condensation)
Storage Humidity 5 to 90%RH (No Condensation)
Fiber Module 1310nm Multimode Transceiver
Fiber Connector SC Duplex Connector
Transmission Distance 1080P 36bit @60Hz 20Km(Maximum)
Power consumption TX:8watts;RX:8watts((Maximum)
Device size 109.5(L)*152(W)*29.3(H)mm
Packing box size 328(L)*273(W)*90(H)mm
Weight 1500g
LED Indicators Power,Link/Act and Speed









Shipping and packing

1.Faster delivery:
Sample order in stock, bulk order 5~12 business days

2.Shipping:
1)By air /By sea/By express (DHL,UPS,FedEx,TNT,EMS)
2)You can also choose your own shipping forwarder

3.Payment:
You can make the payment via:T/T Western Union, MoneyGram, Paypal
