20KM HDMI Optical Fiber Extender Converter , Uncompressed Hdmi Optical Audio Converter

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

20KM HDMI Optical Fiber Extender Converter , Uncompressed Hdmi Optical Audio Converter

China 20KM HDMI Optical Fiber Extender Converter , Uncompressed Hdmi Optical Audio Converter supplier
20KM HDMI Optical Fiber Extender Converter , Uncompressed Hdmi Optical Audio Converter supplier 20KM HDMI Optical Fiber Extender Converter , Uncompressed Hdmi Optical Audio Converter supplier 20KM HDMI Optical Fiber Extender Converter , Uncompressed Hdmi Optical Audio Converter supplier 20KM HDMI Optical Fiber Extender Converter , Uncompressed Hdmi Optical Audio Converter supplier

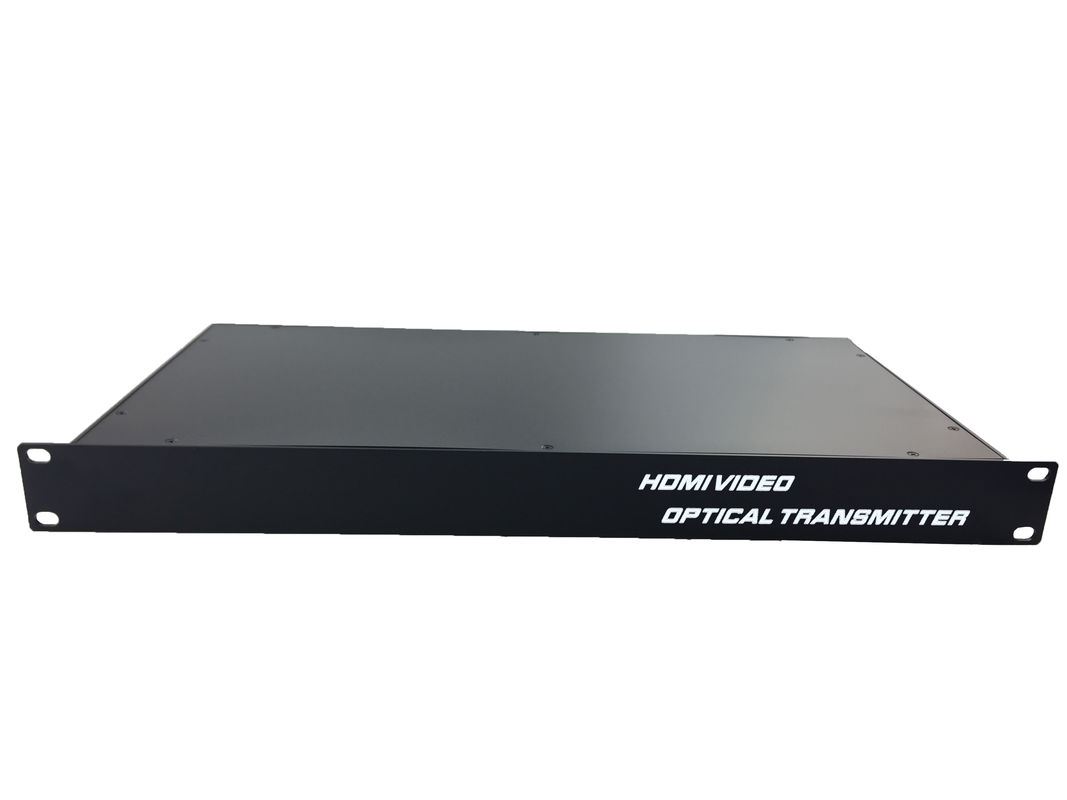

Large Image :  20KM HDMI Optical Fiber Extender Converter , Uncompressed Hdmi Optical Audio Converter

Product Details:

Place of Origin: china (mainland)
Brand Name: HO-link
Certification: CE FCC RoHS
Model Number: HL-HDMI-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after mayment confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pair one month
Contact Now
Detailed Product Description
PC Highest Resolution: 1920×1200@60Hz Optical Interface: LC
Optical Fiber Wavelength: 1310nm FP Signal Level: RS232 Standard Level
Power Consumption: 5W Corlor: Black


20KM HDMI Optical fiber Extender Converter,Uncompressed hdmi optical audio converter,single mode single fiber,LC port



Overview

    HDMI without compression optical transceiver is a set of extender device of high-definition video transmission which use fiber optic, just need a single fiber will be able to transmit 1080p signal over long distances, it support audio transmission and RS232 transmission. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.






Features

« Support highest resolution: 1920×1200@60Hz
« Support HDTV highest resolution up to 1080P
« Support HDMI1.3 interface, compatible with HDMI1.2a standards

«HDCP1.2
« Support 1-channel HDMI with 1-channel embedded audio
« SC interface, hot swap
« Single-mode, 1-core fiber
« Transmits HDMI video signals up to 10km over one fiber optic cable
« Support OEM/ODM
« Support KVM

« Real-time transmission of high-definition uncompressed digital HDMI video signal, the video is clear and stable

« Built-in ESD protection circuitry, can effectively prevent electrostatic damage

« Support serial unidirectional transmission, baud rate adaptive.

« hdmi optical audio converter





Specifications



hdmi optical audio converter interface port specification:



Operating Temperature Range -5 to +35°C
Operating humidity range 5 to 90 % RH (no condensation)
Input video signal 0.5-1.0 volts p-p
Input DDC signal 5 volts p-p (TTL)
Support Video Format DTV/HDTV;
1080P/1080i/720P/576P/480P
/576i/480i
Audio output Stereo
The maximum transmission distance single mode single fiber 10KM
Optical interface LC fiber optic interface
Optical fiber wavelength 1310nm FP
Input Power DC 5V / 2A
Power Consumption Transmitter 5W
Receiver 5W
Transmitter port Function Description
INPUT HDMI Input(support DVI-D input)
Audio IN Stereo audio input, when accessed to audio, HDMI audio is not transmitted
RS232 DB9 serial port
DC/5V Power input 5V2A
Fiber Optical interface LC interface
Receiver port Function Description
OUTPUT HDMI Output(Support DVI-D output)
Audio out Stereo audio output, when inserted into the speakers, HDMI no audio output
RS232 DB9 serial port
DC/5V Power input 5V2A
Fiber Optical interface LC interface







Application:
20KM HDMI Optical Fiber Extender Converter , Uncompressed Hdmi Optical Audio Converter






Packing and shipping:

1 All of our package are international standard package
2 We will deliver our products as soon as the order confirmed
3 by DHL TNT UPS EMS etc.



packing list:

1 HDMI transmitter 1pcs
2 HDMI receiver 1pcs
3 Power Supply Unit 12V/1A 2pcs
4 User Guide 1 pcs




Our Services

1. OEM Manufacturing welcome: Product, Package...
2. Sample order MOQ:1 pcs is ok to assess quality first
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

5.Our Delivery Terms is upon your choose

Uncompressed hdmi optical audio converter
