full Hd310nm / 1550nm HDMI To Fiber Converter , Optical Fiber Audio Video Transmitter And Receiver

China full Hd310nm / 1550nm HDMI To Fiber Converter , Optical Fiber Audio Video Transmitter And Receiver supplier
full Hd310nm / 1550nm HDMI To Fiber Converter , Optical Fiber Audio Video Transmitter And Receiver supplier full Hd310nm / 1550nm HDMI To Fiber Converter , Optical Fiber Audio Video Transmitter And Receiver supplier full Hd310nm / 1550nm HDMI To Fiber Converter , Optical Fiber Audio Video Transmitter And Receiver supplier full Hd310nm / 1550nm HDMI To Fiber Converter , Optical Fiber Audio Video Transmitter And Receiver supplier full Hd310nm / 1550nm HDMI To Fiber Converter , Optical Fiber Audio Video Transmitter And Receiver supplier

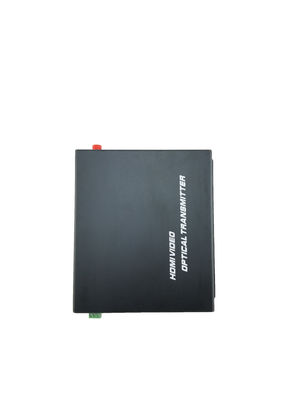

Large Image :  full Hd310nm / 1550nm HDMI To Fiber Converter , Optical Fiber Audio Video Transmitter And Receiver

Product Details:

Place of Origin: china (mainland)
Brand Name: HO-link
Certification: CE FCC RoHS
Model Number: HL-HDMI-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after mayment confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pair one month
Contact Now
Detailed Product Description
PC Highest Resolution: 1920×1200@60Hz Signal Bandwidth: 1.65Gpbs
Pressure: 5V DC Signal Level: RS232 Standard Level
Operating Temperature: -25°C~+70°C Corlor: Black


20km HDMI Fiber Converter extender optical fiber audio video transmitter and receiver,1310/1550nm,FC connector,RS232data




Overview

    HL-HDMI-1V-T/RF  could achieve HDMI digital audio/video signal long-distance transmission. No attenuation, bandwidth, good anti-jamming performance, security performance, small size, light weight and so on during transmission, with incomparable advantages in the long distance and special environment; adoption HDMl interface, one HDMl cable connects HDTV, which could be up to crisp and clear image, 192K sampling rate and 8-channel high-fidelity audio; save construction cost and complexity of the alignment, also ensure high quality. HL-HDMI-1V-T is optical transmitter; HL-HDMI-1V-R is optical receiver, conjunction with the two

    HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced,It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR and various resolution HDMI signal…)to long distance terminal easily.






Features

« Support highest resolution: 1920×1200@60Hz
« Support HDTV highest resolution up to 1080P
« Support HDMI1.3 interface, compatible with HDMI1.2a standards
« Support 1-channel HDMI with 1-channel embedded audio
« SC interface, hot swap
« Single-mode, 1-core fiber
« Transmits HDMI video signals up to 10km over one fiber optic cable
« Support OEM/ODM
« Support KVM





Specifications



PC highest resolution1920×1200@60Hz
HD-DVD resolution720p/1080i/1080p
Signal bandwidth1.65Gpbs
TDMS Signal pressure1.2volts p-p
DDC signal pressure5volts p-p (TTL)

Power and environmental indicator
Consumption5W
Pressure5V DC
Operating temperature-25°C~+70°C
Storage temperature~+
Relative humidity< 95% (no condensation)
Relative humidity0~95%(no condensation)

Audio
No1
Input/ output level5Vp-p,unequilibrium
ConnectorStandard stereo headphone jack

Optics
Type1000BASE_LX optical connection
Wavelength1310nm
Launch power-9.5~-3dBm, average power @850nm
Receiver sensitivity-23dBm
Output Modulation amplitude180μW
Input Modulation amplitude≤15μW
Signal strength-116 DB/Hz
Return loss≤10 dB
Transmission bit rateHz~ Hz
Transmission distancemultimode, single-mode

RS232 indication
Input/output interface9-hole standard RS232 socket
Signal rate115200bps
Signal levelRS232 standard level







Application:
full Hd310nm / 1550nm HDMI To Fiber Converter , Optical Fiber Audio Video Transmitter And Receiver






Packing and shipping:

1 All of our package are international standard package
2 We will deliver our products as soon as the order confirmed
3 by DHL TNT UPS EMS etc.



packing list:

1 HDMI transmitter 1pcs
2 HDMI receiver 1pcs
3 Power Supply Unit 12V/1A 2pcs
4 User Guide 1 pcs
