HD Full / Half Duplex SDI Video Converter , Fiber Optical Transmitter And Receiver Extender

China HD Full / Half Duplex SDI Video Converter , Fiber Optical Transmitter And Receiver Extender supplier
HD Full / Half Duplex SDI Video Converter , Fiber Optical Transmitter And Receiver Extender supplier HD Full / Half Duplex SDI Video Converter , Fiber Optical Transmitter And Receiver Extender supplier HD Full / Half Duplex SDI Video Converter , Fiber Optical Transmitter And Receiver Extender supplier HD Full / Half Duplex SDI Video Converter , Fiber Optical Transmitter And Receiver Extender supplier

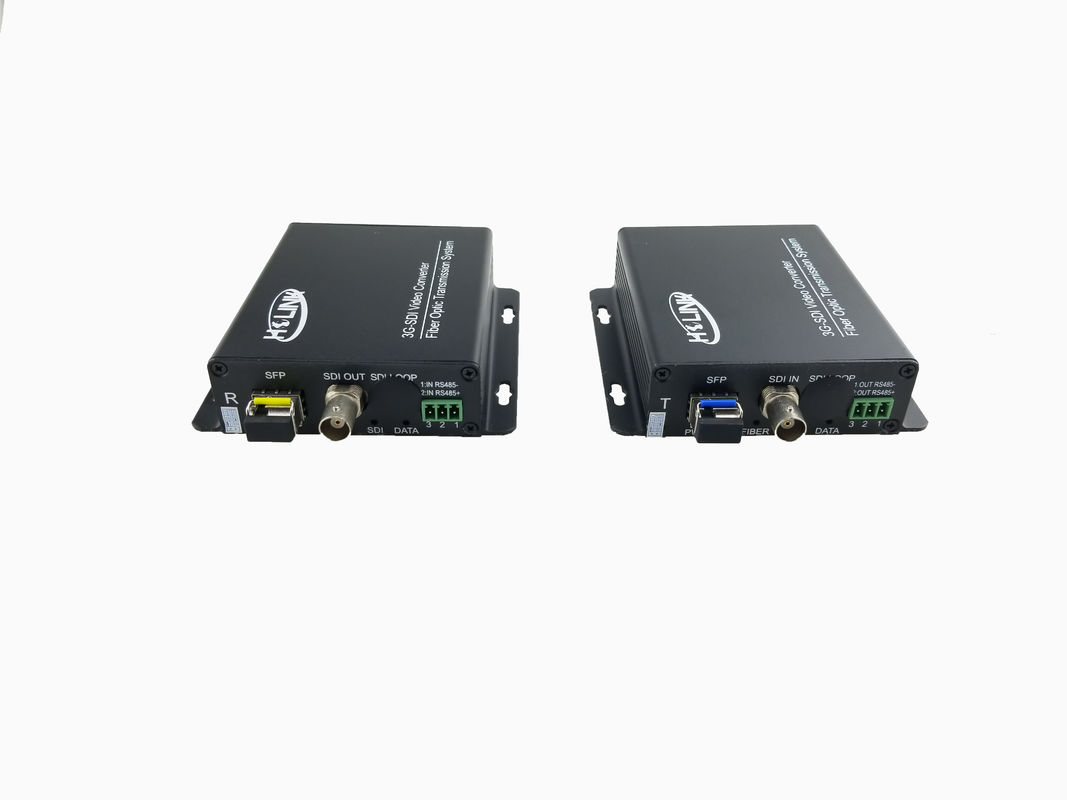

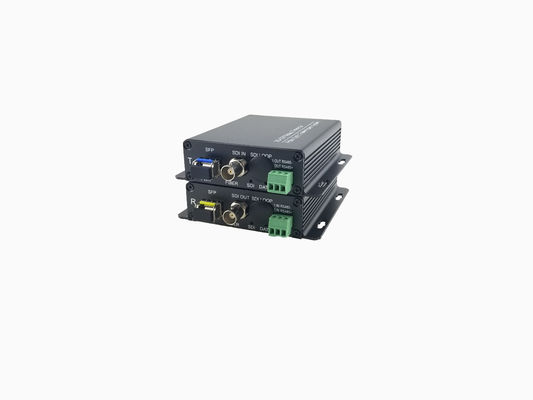

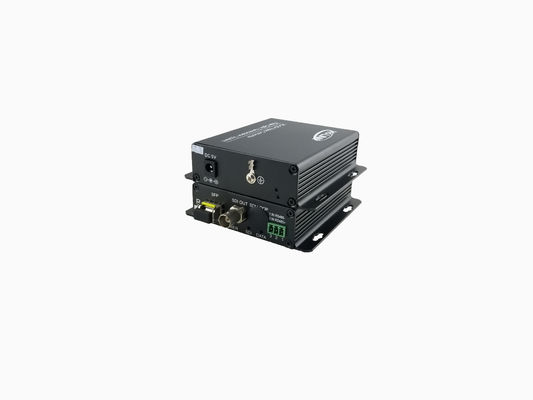

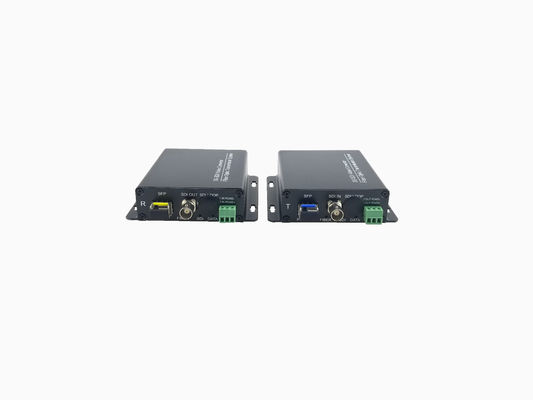

Large Image :  HD Full / Half Duplex SDI Video Converter , Fiber Optical Transmitter And Receiver Extender

Product Details:

Place of Origin: CHINA(MAINLAND)
Brand Name: HO-LINK
Certification: CE FCC RoHS
Model Number: HL-HDSDI-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after mayment confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Input Number: 1 Type: Single/multi Mode( Optional)
Power Adaptor: AC 100-240V To DC 5V 2A Reflection Loss: > 15dB
Working Mode: Full / Half Duplex Full Duplex Pressure: DC 5V 2A


Video and Audio signal hd-sdi fiber optical transmitter and receiver extender,850/1310nm,Full / half duplex Full duplex



Introduction




     HD/SD-SDI over one fiber optic, 1310nm/1550nm and 16 kinds CWDM wavelength, SMPTE 305M (SDTi),SMPTE 310M (19.4Mb/s),SMPTE 344M (540Mb/s),M2S and DVB-ASI(270Mb/s, embedded audio, reclocker, hot swap, high reliability and performance.



     The HD-SDI Video Converter could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. The transmitter features a re-clocked and equalized SDI looping out; the receiver features two re-clocked and equalized SDI outputs.



.





 Features:

  • 1-ch unidirectional HD-SDI video with 1-ch embedded audio + 1-ch reversed RS485 ( terminal block) over one fiber

  • Optional network management system

  • LED status indicators monitor the critical parameters

  • 1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

  • Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

  • The fiber port Support SFP transceiver hot-plugged

  • Optical WDM/CWDM/DWDM technology

  • Single mode, multimode fiber transmission

  • Apply to extreme hot and low temperature etc Industrial harsh environment
    Surface mount technology

  • Industrial design, high reliability

  • Support custom and OEM for users









Parameter of HD-sdi transmitter and receiver





Serial TV BNC input
Input number 1
Number of Optical port

Number of Optical port

Connector Simplex LC
Single-mode

20Km – 80Km

connector 75Ω BNC

Output number 1-channel receiver end
Rack power AC line cord
Power adaptor AC 100-240V to DC 5V 2A
Power consumption <3W
Reflection loss > 15dB
Physical interface Industrial standard screw terminal

























Optic output
Output number 1
Type single mode (multimode optional)
Wavelength 1310nm /1550nm
Reflection loss > 15dB
Jitter < 0.2UI















































Application



HD Full / Half Duplex SDI Video Converter , Fiber Optical Transmitter And Receiver Extender








Packing and shipping:





1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed



packing list:   1pcs transmitter and 1 pcs receiver , 2 pcs adapter, 1 pcs warranty card, 1 user guide,
