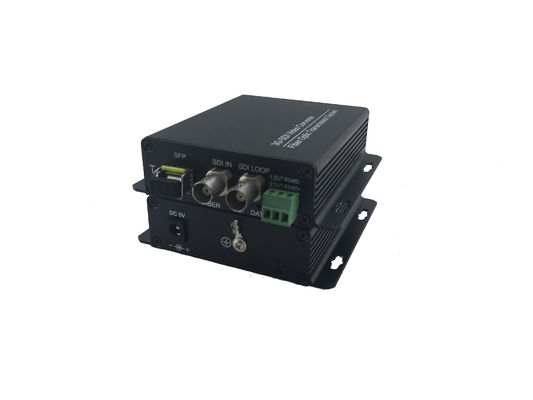

1 Channel Forward 3G-SDI to Fiber Video Converter Audio with Reverse Data 485/232/422

China 1 Channel Forward 3G-SDI to Fiber Video Converter Audio with Reverse Data 485/232/422 supplier

Large Image :  1 Channel Forward 3G-SDI to Fiber Video Converter Audio with Reverse Data 485/232/422

Product Details:

Place of Origin: CHINA(MAINLAND)
Brand Name: HO-Link
Certification: CE FCC RoHS
Model Number: HL-3GSDI-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pairs
Price: Negotiation
Packaging Details: international standard package
Delivery Time: 1-5 working days after mayment confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Model: HL-3GSDI-1V1D-T/RF Transmitted Power: -10dbm~-3dbm
Wavelength: Mulitmode:850/1310nm Data Channel: RS485 422 232
Relative Humidity: 20~90% RH (Non-condensation) MTBF: >100,000 Hours



1-Channel 3G-SDI to Fiber Video Transmitter and Receiver, audio+data 485/232/422,+switch for option,3G sfp module,FC /LC
 1 Channel Forward 3G-SDI to Fiber Video Converter Audio with Reverse Data 485/232/422


Introduction



     3G-SDI with 1-ch Banlanced Audio To Fiber Extender is an ideal and economic solution for broadcasting or surveillance applications. It receives one HD-SDI electrical input, perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).

    Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with Transwan advanced fiber technology, VSDI can easily pass pathological pattern to prove its complete transmission.







 Features:


  • Support 1channel 3G-SDI video embedded audio signal via fiber
  • SD,HD auto-detection, supported transmission rate from 270M bit/s to 1.485G bit/s
  • Transmission distance is from 0km to 80KM via multimode fiber or single mode fiber.
  • Support SMPTE 259M (1.485Gbps),SMPTE 259M (270Mbps),and DVB-ASI
  • Support plug and play function
  • Operation status indication by LED











Parameter of 3g-sdi transmitter and receiver



3G-SDI Fiber Optic
ModelHL-3GSDI-1V1D-T/RF
Quantity/TypeSingle Mode, Single Fiber
Max. Distance0m-20Km (40km/60km optional)
ConnectorFC
Wave Length1310nm/1550nm
Transmitted power-10dbm~-3dbm
Maximum Receiving Sensitivity<-34dbm
Signal TypeSD-SDI(270Mbps)/ HD-SDI(1.485Gbps)
Support Input FormatSD: 525i @ 59.94Hz, 625i @ 50Hz<p >HD: 720p @ 25Hz / 29.97Hz / 30Hz<p > 720p @ 50Hz / 59.94Hz / 60Hz<p >1080i @ 50Hz / 59.94Hz / 60Hz<p >1080p @23.98Hz/24Hz/25Hz/29Hz/3 0Hz
Video StandardSMPTE 292M and SMPTE 259M
DATA comm. methodRS-485 232 422/Half duplex
Power SupplyDC 5V 2A
Power Consumption3~5 Watts
Operating Temperature0°C ~ 60°C / 32°F ~ 140°F
Storage Temperature-30°C ~ 70°C / -22°F ~158°F
Relative Humidity20~90% RH (Non-condensation)







Application




Video and Audio signal hd-sdi fiber optical transmitter and receiver extender
