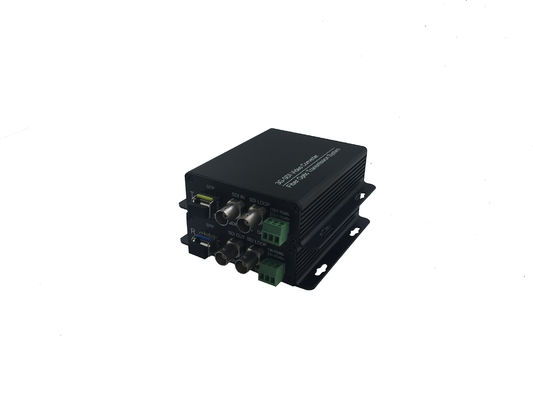

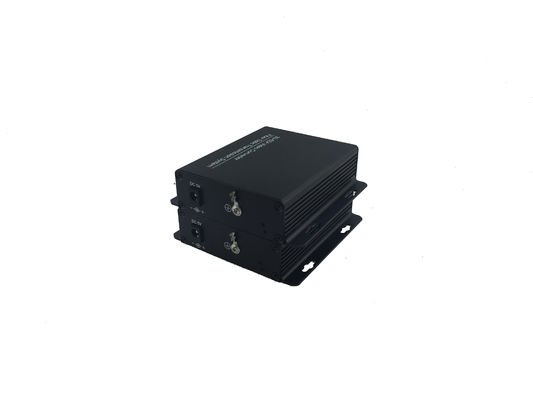

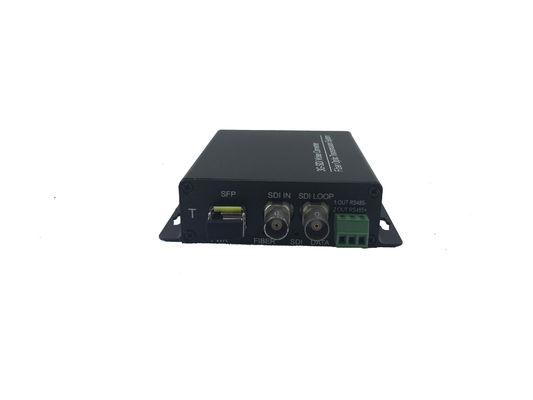

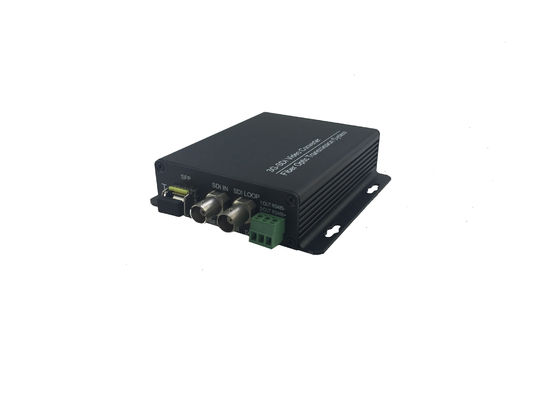

Ho-link Uncompressed 3G SDI Video Converter Video To Fiber Converter For Intelligent Monitoring System

China Ho-link Uncompressed 3G SDI Video Converter Video To Fiber Converter For Intelligent Monitoring System supplier
Ho-link Uncompressed 3G SDI Video Converter Video To Fiber Converter For Intelligent Monitoring System supplier Ho-link Uncompressed 3G SDI Video Converter Video To Fiber Converter For Intelligent Monitoring System supplier Ho-link Uncompressed 3G SDI Video Converter Video To Fiber Converter For Intelligent Monitoring System supplier Ho-link Uncompressed 3G SDI Video Converter Video To Fiber Converter For Intelligent Monitoring System supplier

Large Image :  Ho-link Uncompressed 3G SDI Video Converter Video To Fiber Converter For Intelligent Monitoring System

Product Details:

Place of Origin: CHINA(MAINLAND)
Brand Name: HO-LINK
Certification: CE FCC RoHS
Model Number: HL-3GSDI-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after mayment confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Number Of VideoChannels: 1 Video Interface: BNC
Wavelength: 1310/1550nm Data Channel: RS485 422 232
Error Rate: < 10-9 Operating Temperature: -40 To+85

3G,SDI Video to Fiber converter transmitter+receiver for intelligent monitoring system, CCTV,,1310/1550nm,uncompressed



Introduction



     Internationally advanced SOC digital signal processing technology and full digital video non-compression transmission technology are used in HO-link full digital video + optional optical
transceiver, to real-time synchronize one-way high-definition SDI video and data/ switching value
in single-core optical fiber and achieve lossless and high-quality transfer. Advanced high-stability components are used in optic circuit and core circuit of holink high-definition full digital video optical transmitter and receiver, and all optical/electric interfaces are in accordance with international standards, free of adjustment prior to mounting and applicable in various operating environments.



 Features:


1.Full digital non-compression broadcast level transmission;

2. point -to-point, cascade connected, distributed network connection supported, and with steady SNR;

3. level 3 lightning protection;

4. free of cross interference resulted from FM/PM/AM optical transmitter and receiver;

5.all high-resolution video signal supported

6. Lossless video regeneration & relaying supported;

7. super optic dynamic range and free of adjustment prior to use;

8. surface coating technique;

9.fiber optic WDM/CWDM/DWDM technique;

10.1000 M optical fiber transmission, easy for update;

11. industry level ultra-broad temperature range (-40~+85), adaptable to various environments;

12.on-power hot plug;

13.wall-mounted or 2U rack-mounted;

14.user's customization and OEM supported.



Parameter of 3g-sdi transmitter and receiver

Product Name 3G-SDI video converter
Model HL-3GSDI-1V1D-T/RF
Description Compatible with SDI and ASI signal,SDI/ASI signal self-adaption
Ports 4 channel 3G-SDI, + 1 channel reverse data(RS485/232/422 data)
Transmission Distance 20km-100km
Fiber Interface FC, 1310nm/1550nm
Video Interface BNC
Reflection loss >15dB
Working Environment Operating Temperature: -40°~ 85°C
Storage Temperature: -45°~ 95°C
Operating Humidity: 5%~95%, non-condensing
EMI Compatiblity FCC Class A, CE
Total power consumption 3w(Input:DC5V2A)
Power Supply AC85-260V/50Hz
Warranty 3 year warranty



Application Industries



Intelligent transport monitoring system, safety and security monitoring system, campus network, industrial monitoring (electric power, chemical industry, steel, oil, railway and water conservancy etc.); military monitoring (warehouse, guard and confidentiality etc.) TV program transfer system.



Shipping and packing:



delivery: 3-5 working days after payment confirm

package: international standard package

shipped: by UPS,TNT DHL Fedex ,EMS.etc.
