1 Channels SDI Video Converter with default FC optical conector , single core fiber SDI video to fiber media converter

China 1 Channels SDI Video Converter with default FC optical conector  , single core fiber SDI video to fiber media converter supplier
1 Channels SDI Video Converter with default FC optical conector  , single core fiber SDI video to fiber media converter supplier 1 Channels SDI Video Converter with default FC optical conector  , single core fiber SDI video to fiber media converter supplier 1 Channels SDI Video Converter with default FC optical conector  , single core fiber SDI video to fiber media converter supplier

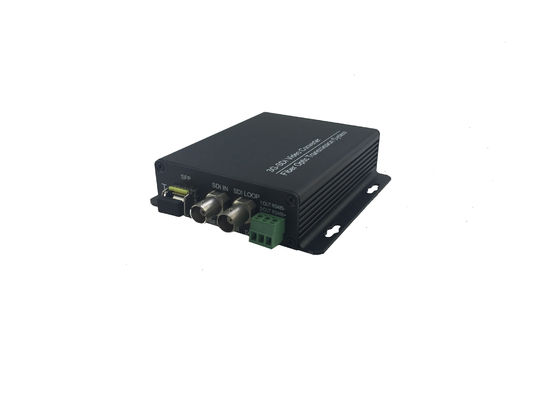

Large Image :  1 Channels SDI Video Converter with default FC optical conector , single core fiber SDI video to fiber media converter

Product Details:

Place of Origin: CHINA
Brand Name: HO-LINK
Certification: CE RoHS FCC
Model Number: HL-3GSDI-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Main Products: 3G/HD-SDI, Tvi/cvi/ahd Video Converter Operating Humidity: 0 ~ 95% (non-condensing)
Audio Channel: Forward/ Reverse Audio SM Distance: 0-120KM
Operating Temperature: 0°C To 55°C After-sales: 3 Year’s Warranty





1 Channels SDI Video Converter with default FC optical conector , single core fiber SDI video to fiber media converter



Overview



     Fiber optic Video+Data+ Audio Multiplexer/Converter-Transmitter+Receiver can transmit and extend a maximum of video up to a few tens of kilometers. The fiber video converters operate as a transmitter/receiver pair for the transmission of NTSC or PAL video signal with bi-directional audio and bi-directional RS422 or RS485 data over fiber cables. We supply 1, 2, 4, 8, 16, 24, 32 channels fiber video converter with return or bidirectional data&bi-directional RS422 or RS485 data. Plug and Play design ensures the ease of installation and operation. Please feel free to contact us for all your video to fiber and other video conversion requirements.













Features





  • Uncompressed Digital Composite Video over one fiber
  • Compatible with all PAL, NTSC,SECAM Video Systems
  • Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
  • Single-Mode Fiber Support for Distances up to 100 km
  • LED Status Provide Rapid Indication of Operating Parameters
  • No EMI or RFI and no ground loops
  • Support Coarse Wavelength Division Multiplexing (CWDM)
  • Stand alone
  • Produce according to customer's specifications,providing OEM
















Specifications





Wavelength 1310nm&1550nm
Output Power -9~-3dBm / -3~+2dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -18dBm
Optical connector LC/FC (optional)
Distance 0~2KM (MM) / 0~80KM (SM)



Video:



SDI Input
Signal Type SDI SMPTE 424M, SMPTE 292M, SMPTE 259M
Data Rates 270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization

Automatic cable EQ (Belden 1694A cable)

250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s

Connector BNC 75 Ohm
Number of tranmitter channel 1
Number of tranmitter Loopout 1
Number of receiver output 2
General:
Input Power 5 V DC
Operating temperature 0°C to 55°C
Storage temperature -10°C to 70°C
Operating humidity 0 ~ 95% (non-condensing)
Case material Aluminum









Connection Diagram:

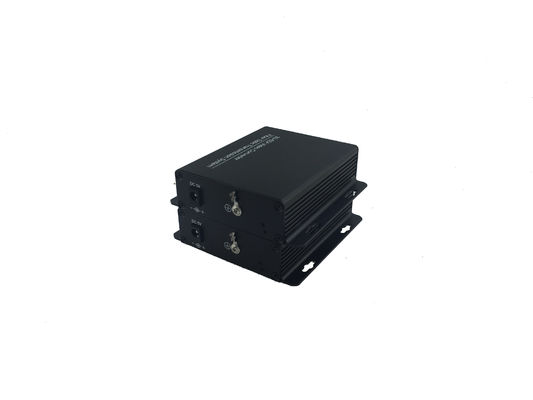

1 Channels SDI Video Converter with default FC optical conector  , single core fiber SDI video to fiber media converter





















Shipping and packing:

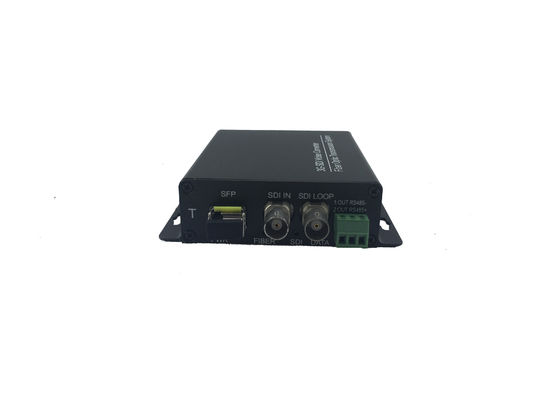

1 Channels SDI Video Converter with default FC optical conector  , single core fiber SDI video to fiber media converter






1 Channels SDI Video Converter with default FC optical conector  , single core fiber SDI video to fiber media converter





Packing Contents: SDI Fiber Extender

1 SDI Fiber Optic Transmitter

1 SDI Fiber Optic Receiver

1 Manual and so on
