Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam

China Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam supplier
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam supplier Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam supplier Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam supplier Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam supplier

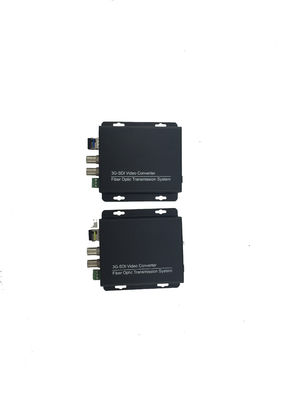

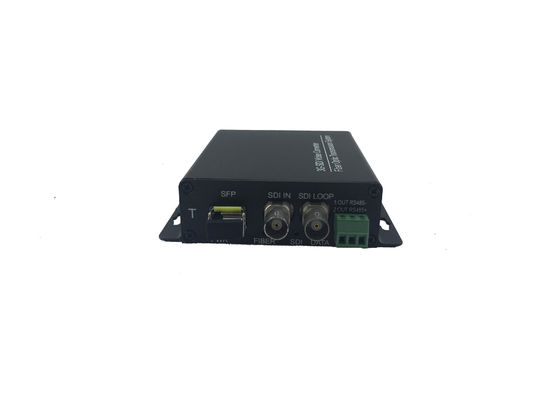

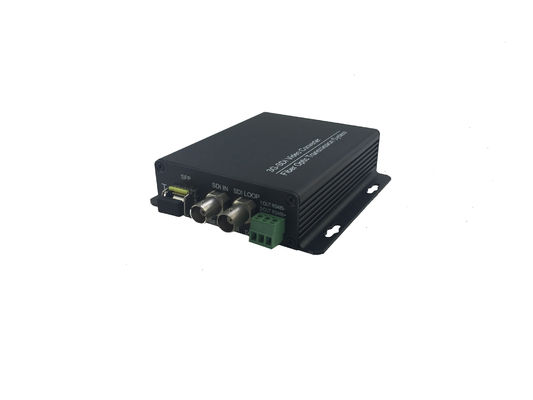

Large Image :  Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam

Product Details:

Place of Origin: CHINA
Brand Name: HO-LINK
Certification: CE RoHS FCC
Model Number: HL-3GSDI-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Main Products: 3G/HD-SDI, Tvi/cvi/ahd Video Converter Delivery: 3-5 Working Days
Audio Channel: Forward/ Reverse Audio Input Rating Voltage: 5V
Optical Interface: FC SC ST MOQ: One Pair



Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam





Overview









HD-SDI over Fiber high power video transmitter and Receiver

telecommunication equipment Transmitter and Receiver 1080P HD-SDI over Fiber

The HO-Link 3G-SDI Series offers broadcast quality HD/3G-SDI transmission over a single fiber. The 3G-SDI Series is SMPTE compliant ensuring consistent and reliable results, even when connecting through third-party SMPTE 297-2006 devices.

Ensuring interoperability is provided by adhering to SMPTE 259M-2006, 292-2006 and 297-2006.
Single mode support expands your installation possibilities and limits the technical hassles. When using Single Mode fiber, you will enjoy distance capabilities of up to 80 km. Choose from SMPTE compliant LC . Review our comprehensive data sheet for the precise specifications for your application.









Features





  • SMPTE 424M and 292M Compliant
  • Singlemode and multimode fiber options
  • Uses all-digital processing for crystal clear picture with no compression
  • Real-time video transmission for exceptional quality and resolution
  • Receiver contains SMPTE compliant cable driver and reclocker
  • Transmitter contains SMPTE compliant cable driver, adaptive cable equalizer, and reclocker
















Specifications









3G-SDI Video



Power

Channels   1   Stand-alone   2A@5VDC
Signal Format   SMPTE292M/259M/297M/305M/310M/344M   Rack-mount   2A@5VDC
Input / output level   0.8Vpp±10%   Power Consumption   5W
Reflection Loss   >15dB



Cable transmission

(Belden 1694A)

  0~150m (1.485Gbps)
Physics

Rise/fall time   < 270pS (1.485Gbps)
Jitter   < 0.2UI
Overshoot   < 10%   Stand-alone (kg)   1.0
Connector Type   BNC 75Ω   Rack-mount (kg)   0.7



Optical

Wavelength   1310/1550nm or CWDM
Fiber type   SM or Multimode
Link loss   12~30dB
Fiber   1
Connecter   LC (FC/SC/ST optional)
Transmission Distance

20~100km



















Connection Diagram:





Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam





















Shipping and packing:





Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam









Our Services


1.Any inquiries will be replied within 24hours

2.Professional manufacturer.

3.OEM/ODM avaliable:

1)Silk print logo on the front panel

2)Customized housing

3)Any your idea on our equipments we can help you to design and put it into production

4.High quality, fashion designs, reasonable and competitive price, fast lead time

5.After-sale service:

1)All products will have been strictly quality checked in house before packing

2)All products will be well packed before shipping

3)All our products have 1year warranty.

6.Faster delivery:

Sample order 1~3working days, and 3~7 working days for bulk production

7:Payment:

You can pay fro the order via: T/T,Western Union, Paypal and others, or place order directly on Aliexpress

8.Shipping:

We have strong cooperation with DHL, TNT,UPS,FEDEX,EMS and China Air Post

You also can choose your own shipping forwarder.
