2 Channel 3g SDI Video Converter / fiber optical transmitter and receiver for Security system

China 2 Channel 3g SDI Video Converter / fiber optical transmitter and receiver for Security system supplier
2 Channel 3g SDI Video Converter / fiber optical transmitter and receiver for Security system supplier 2 Channel 3g SDI Video Converter / fiber optical transmitter and receiver for Security system supplier 2 Channel 3g SDI Video Converter / fiber optical transmitter and receiver for Security system supplier 2 Channel 3g SDI Video Converter / fiber optical transmitter and receiver for Security system supplier

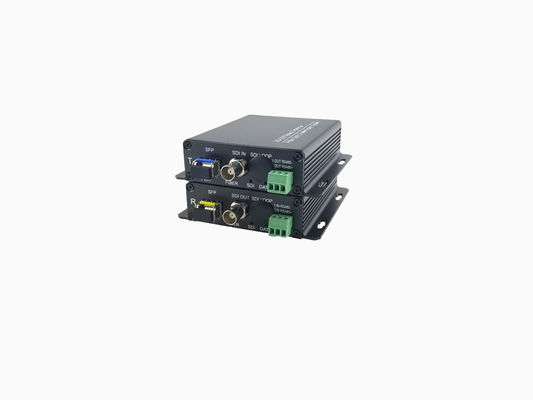

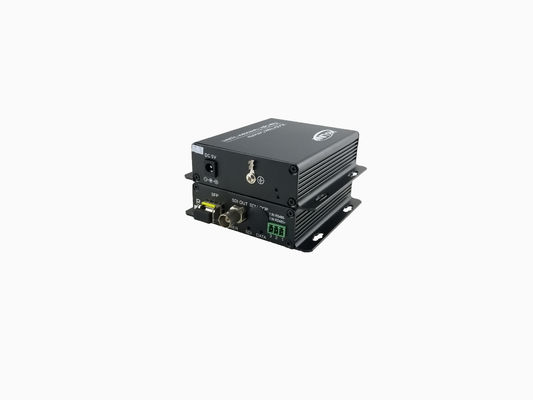

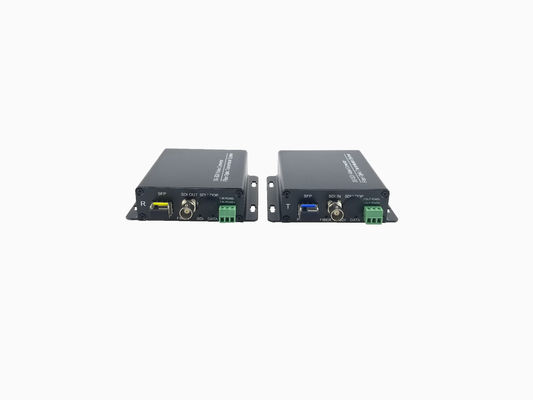

Large Image :  2 Channel 3g SDI Video Converter / fiber optical transmitter and receiver for Security system

Product Details:

Place of Origin: CHINA
Brand Name: HO-LINK
Certification: CE RoHS FCC
Model Number: HL-3GSDI-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Fiber Type: SMF Video Digital Bit Width: 8/10 Bit
Place Of Origin: Guangdong China(mainland) In Stock: YES
Optical Interface: FC SC ST Service: OEM/ODM



2 Channel 3g SDI Video Converter / fiber optical transmitter and receiver for Security system





Overview







    The video series transceivers are high performance, cost effective modules for simplex video transmission application over single mode fiber.

The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates.





     3G/SD/HD-SDI Optical Transmitter  & Receiver is designed for use to transmit 3G/SD/HD-SDI without embedded audio and data over a single fiber. It is compliant with SMPTE297-2006 for seamless interoperability with other SMPTE297-2006 equipment. The system delivers noise-free transmission that retains all of initial signals’ parameters, regardless of fiber optic cable attention.









Features





  • Robust metal casings
  • Thunder-proof solution
  • Low optical link loss-max 30dB
  • Without EMI, RFI and ground loop
  • Bi-di transmission on 1 fiber with WDM
  • High quantification level of 8BIT and 10BIT
  • Hot plug-and-play with switch power supply
  • Available in standalone, module, and rack
















Specifications











Video characteristics



Video interface 1channel 1 RS485 data
standards PAL/NTSC/SECAM
Digital Bit Width 8/10bit
Input/Output Impedance BNC 75Ω Unbalanced Interface
Input/Output Voltage Typical Value 1.0 VPP
Maximum Value 1.5 VPP
Signal Bandwidth ≥ 8 MHz
Differential Gain < 1.0 %( Typical Value)
Differential phase < 1.0° (Typical Value)
SNR ≥71dB (Weighted Value)

Data characteristics



Physical interface RJ-45 or Euro socket
transmit direction forward and reverse or bidirectional
Electrical interface RS232/RS422/RS485
Signaling control Support RS232/RS422/RS485 Protocols
Transmit range 1200 m
Bit rates RS232 DC-115.2 Kbps
RS422/485 DC-1.25 Mbps
BER ≤ 10
Operating Temperature -40 to 70°C
Storage Temperature -40 to 85°C (40 to 185F) 95% RH
Relative humidity 95%
Power AC AC220V (185~265V)/(50/60HZ)
Consumption <5Walt
Size 118mm×114mm×28mm
Mean Time between Failures >100.000 hours

















Connection Diagram:



  • Police and safe city monitoring system
  • Express way security protection and toll station system
  • City traffic monitoring system
  • Building and campus monitoring system
  • Industrial monitoring (airport, chemical plant, railway, etc.)
  • Military monitoring (frontier defense, national defense)
  • Electronic power oil field, TV station program broadcasting
  • Gymnasum (live video and audio transmission)



2 Channel 3g SDI Video Converter / fiber optical transmitter and receiver for Security system





















Shipping and packing:





Payment terms:

By T/T, Western Union, Paypal etc



Delivery time:

2-3 working days after payment for sample order

5-7working days after payment for mass order

2 Channel 3g SDI Video Converter / fiber optical transmitter and receiver for Security system
