2 channels BNC to HD Converter , 3G SDI to HD Converter 720P / 1080P for intelligent monitoring system

China 2 channels BNC to HD Converter , 3G SDI to HD Converter 720P / 1080P for intelligent monitoring system supplier
2 channels BNC to HD Converter , 3G SDI to HD Converter 720P / 1080P for intelligent monitoring system supplier 2 channels BNC to HD Converter , 3G SDI to HD Converter 720P / 1080P for intelligent monitoring system supplier 2 channels BNC to HD Converter , 3G SDI to HD Converter 720P / 1080P for intelligent monitoring system supplier 2 channels BNC to HD Converter , 3G SDI to HD Converter 720P / 1080P for intelligent monitoring system supplier

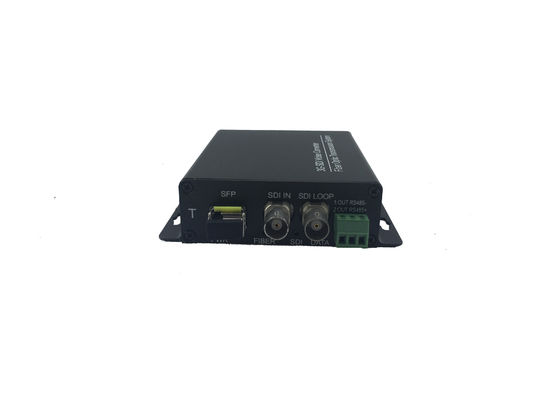

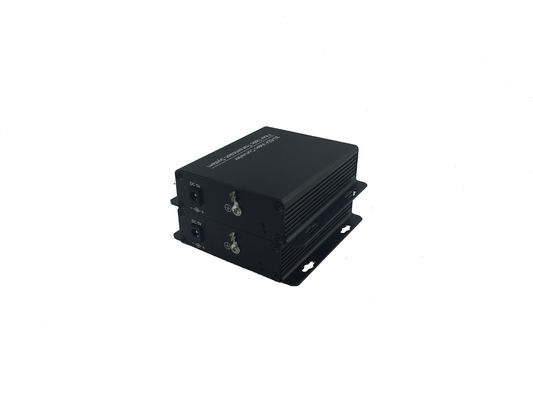

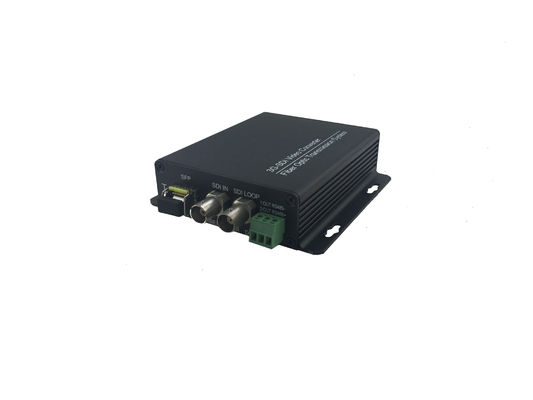

Large Image :  2 channels BNC to HD Converter , 3G SDI to HD Converter 720P / 1080P for intelligent monitoring system

Product Details:

Place of Origin: CHINA
Brand Name: HO-LINK
Certification: CE RoHS FCC
Model Number: HL-3GSDI-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Fiber Type: SMF Video Digital Bit Width: 8/10 Bit
Place Of Origin: Guangdong China(mainland) In Stock: YES
Optical Interface: FC SC ST Service: OEM/ODM



BNC to HD Converter , 3G SDI to HD Converter 720P / 1080P for intelligent monitoring system







Overview







    The video series transceivers are high performance, cost effective modules for simplex video transmission application over single mode fiber.

The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates.





OEM and ODM



OEM/ODM order is available



we can supply products according to your requirements, and design products label for your company.



2 channels BNC to HD Converter , 3G SDI to HD Converter 720P / 1080P for intelligent monitoring system







Features





  • 1, Multi-service integrated platform, flexible configuration.

    3G-Sdi SDI Video Fiber Converter hd-sdi video transmitter and receiver

    2, Support any high-resolution video signal.

    3, Industrial level design, high level of integration.

    4, 8-bit digital code and non-compressed type video transmission.

    5, Broadcast level transmission with full digital coding without compression and lost.

    6, Automatic compatible PAL,NTSC and SECAM video system.

    7, High-quality of real-time transmission, high reliability in various outdoor conditions.

    8, Simple installation without adjustment.

    9, Desktop and rack mounting are all available.

    10, Built-in 3 level lightning protection circuit.

    11, Perfect function of status indication to facilitate maintenance and management.

    12,Have dustproof,salt fog protection and acid mist protection. suitable for maore harsh working conditions environment.

















Specifications











Video characteristics



Video interface 1channel 1 RS485 data
standards PAL/NTSC/SECAM
Digital Bit Width 8/10bit
Input/Output Impedance BNC 75Ω Unbalanced Interface
Input/Output Voltage Typical Value 1.0 VPP
Maximum Value 1.5 VPP
Signal Bandwidth ≥ 8 MHz
Differential Gain < 1.0 %( Typical Value)
Differential phase < 1.0° (Typical Value)
SNR ≥71dB (Weighted Value)

Data characteristics



Physical interface RJ-45 or Euro socket
transmit direction forward and reverse or bidirectional
Electrical interface RS232/RS422/RS485
Signaling control Support RS232/RS422/RS485 Protocols
Transmit range 1200 m
Bit rates RS232 DC-115.2 Kbps
RS422/485 DC-1.25 Mbps
BER ≤ 10
Operating Temperature -40 to 70°C
Storage Temperature -40 to 85°C (40 to 185F) 95% RH
Relative humidity 95%
Power AC AC220V (185~265V)/(50/60HZ)
Consumption <5Walt
Size 118mm×114mm×28mm
Mean Time between Failures >100.000 hours

















Connection Diagram:





2 channels BNC to HD Converter , 3G SDI to HD Converter 720P / 1080P for intelligent monitoring system





















Shipping and packing:



International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.



Payment terms:

By T/T, Western Union, Paypal etc



Delivery time:

2-3 working days after payment for sample order

5-7working days after payment for mass order
