1.25G 2HD - SDI over fiber video converter with audio + 1Ch Return 485/232 data

China 1.25G 2HD - SDI over fiber video converter with audio + 1Ch Return 485/232 data supplier
1.25G 2HD - SDI over fiber video converter with audio + 1Ch Return 485/232 data supplier 1.25G 2HD - SDI over fiber video converter with audio + 1Ch Return 485/232 data supplier 1.25G 2HD - SDI over fiber video converter with audio + 1Ch Return 485/232 data supplier

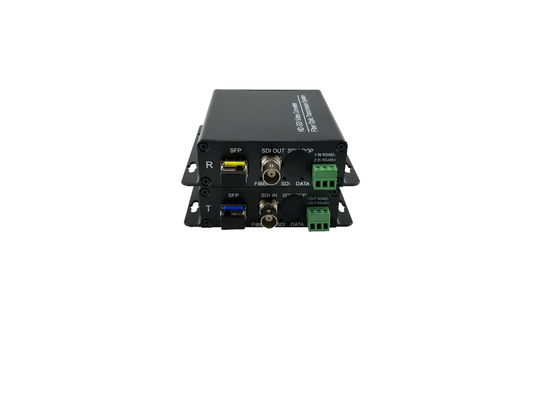

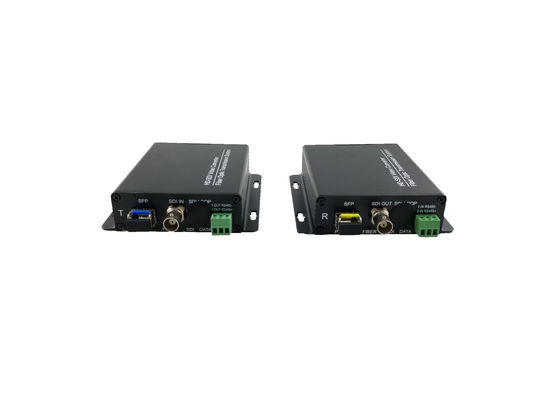

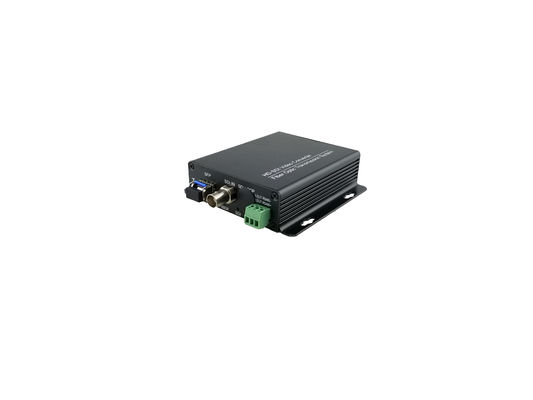

Large Image :  1.25G 2HD - SDI over fiber video converter with audio + 1Ch Return 485/232 data

Product Details:

Place of Origin: CHINA
Brand Name: HO-LINK
Certification: CE RoHS FCC
Model Number: HL-HDSDI-2V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
DC Offset (maximum Allowable): 5V Port: 1-16 Channel
Interface Port: Industrial Standard Data Format: RS-485/422,RS232
Optical Interface: FC SC ST Power Supply: DC 5V1A



1.25G 2HD - SDI over fiber video converter with audio + 1Ch Return 485/232 data







Overview





    It is to transmit 2-line positive digital video broadcasting, to one fiber efficiently. With complete digital and technology, HL-HDSDI-2V1D-T/RF support any high resolution dynamic or stationary picture high-fidelity transmit. It also can be anti-disturbance against several signals, environment, and work stably. It is widely used in security monitoring and control, high way, electronic police, automation, intelligent residential districts and so on.
It can work shortly after it is installed. You could select any data interface by set. It is connected easily and it can indicate power supply, link, and video, also adjust video. There are two ways to install desktop and rack.











Features





  • 1, Digital Video Optical Transmission transmit signals of 1~4 channel video.

    2, One-way or two-way audio/ data and switching capacity through an optical fiber.

    3, Adopt the full digital video non-compressed transmission technology.

    4,Video quality can achieve broadcast standards and Audio quality can achieve CD level.

    5, Adopt independent type or frame structure to install.

    6, Completely suitable for all kinds of harsh working conditions environment.

    7, 100% burn-in test before delivery.

    8, RoHs compliance.











Application








1.25G 2HD - SDI over fiber video converter with audio + 1Ch Return 485/232 data









Specifications







Video Port 1-16
Video interface BNC
Video in/output impedance 75Ω
Video in/output voltage (typical)1.0Vp-p/max 1.5Vp-p
Bandwidth 5-8MHz
Differential gain <1% (typical)
Differential phase <0.6°
SNR ≥68dB
Field tile <0.5%
Data Physical connector phoenix contact (DATA)
Data connector RS-485/422,RS232
Channels of data forward and reverse path data multi-channels
Interface port Industrial standard interface port
Environment Working temperature -30 °C ~ +75 °C
Storage temperature -40 °C ~ +85 °C
Relative humidity 0~95%
Optical Fiber type MM SM SM SM
Budget 20dBm 20dBm 22dBm 25dBm
Transmission Distance 2km 20km 40km 60km
Other Dimension 490mm x 255mm x 45mm
Input rating voltage AC220V/50Hz
Power supply DC 5V/1A
Power 5W
Sampling rate 15MHZ
MTBF 100,000h
Emission/Safety FCCPart15, ClassA, RoHS and CE Mark
