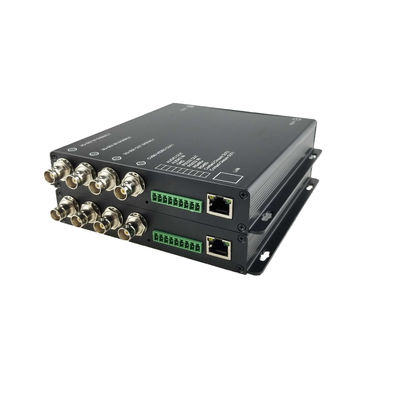

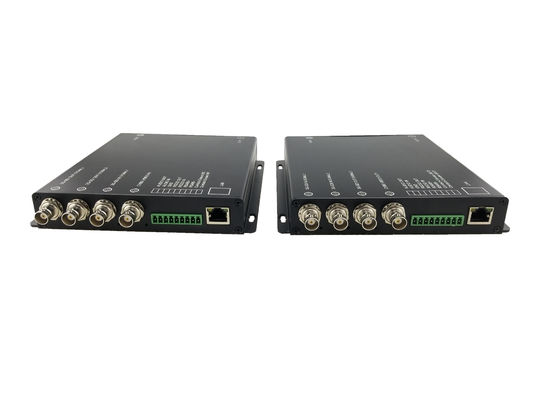

FC SC ST SDI Video Converter and reveiver , SDI to Fiber converter 10-80km Extender

China FC SC ST SDI Video Converter and reveiver , SDI to Fiber converter 10-80km Extender supplier
FC SC ST SDI Video Converter and reveiver , SDI to Fiber converter 10-80km Extender supplier FC SC ST SDI Video Converter and reveiver , SDI to Fiber converter 10-80km Extender supplier FC SC ST SDI Video Converter and reveiver , SDI to Fiber converter 10-80km Extender supplier FC SC ST SDI Video Converter and reveiver , SDI to Fiber converter 10-80km Extender supplier

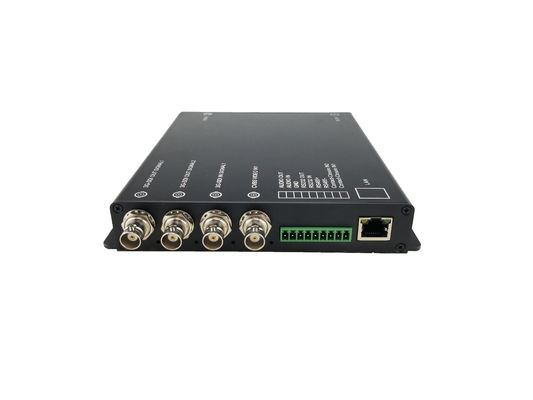

Large Image :  FC SC ST SDI Video Converter and reveiver , SDI to Fiber converter 10-80km Extender

Product Details:

Place of Origin: CHINA
Brand Name: HO-LINK
Certification: CE RoHS FCC
Model Number: HL-HDSDI-4V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Reflection Loss: >15dB Transmission Distance: 20km-100km
Total Power Consumption: 3w(Input:DC5V2A) Data Connector: RS-485/422,RS232
Optical Interface: FC SC ST Wavelength: 1310/1550µm(Single Mode)



FC SC ST SDI Video Converter and reveiver , SDI to Fiber converter 10-80km Extender







Overview



   HD-SDI is a multi-service transmission device which can transfer real-time HD-SDI, audio, data, alarm switching value and Ethernet signals. Compared with the traditional HD-SDI fiber transmitter and receiver, it has the advantages of high capability, multi-service and low cost. This series of products is widely used in city security, high way, rail way, electrical power, petroleum and petrochemical field and other industries which demand real time HD surveillance.











Features





1.Compatible with HD-SDI and ASI signals, SDI / ASI signal adaptive

2.Meet SMPTE259M, SMPTE297M, SMPTE310, SMPTE305 (SDTI) standard
3.Automatically adapt SDI143 Mbps, 177 Mbps, 270Mbps, 360 Mbps, 540Mbps, 1.48Gbitt rate
4.High-precision PCR correction, the average PCR jitter is usually maintained at 20 ~ 60ns
5.Transmitter output power 0 ~ -14dBm (loss determined according to the actual chain of transmission power)
6.By Pathological (extremely harsh environments) Test
7.Support 1080P 30HZ / 1080I / 720P; suitable for HD-SDI monitoring system and the broadcasting system.
8.Full surface mount technology
9.Industrial design, high reliability
10.Support customization and OEM














Applications:
FC SC ST SDI Video Converter and reveiver , SDI to Fiber converter 10-80km Extender













Specifications





Parameter of 3g sdi fiber video converter
Product Name HD-SDI video converter
Model HL-HDSDI-4V1D-T/RF
Description Compatible with SDI and ASI signal,SDI/ASI signal self-adaption
Ports 4 channel HD-SDI, + 1 channel reverse data(RS485/232/422 data)
Transmission Distance 20km-100km
Fiber Interface FC, 1310nm/1550nm
Video Interface BNC
Reflection loss >15dB
Working Environment Operating Temperature: -40°~ 85°C
Storage Temperature: -45°~ 95°C
Operating Humidity: 5%~95%, non-condensing
EMI Compatiblity FCC Class A, CE
Total power consumption 3w(Input:DC5V2A)
Power Supply AC85-260V/50Hz
Warranty 3 year warranty













Shipping and packing:



  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
