HD sdi video transmitter receiver FC / LC , 1310 1550µm Digital Audio Converter Single Mode

China HD sdi video transmitter receiver FC / LC , 1310 1550µm Digital Audio Converter Single Mode supplier
HD sdi video transmitter receiver FC / LC , 1310 1550µm Digital Audio Converter Single Mode supplier HD sdi video transmitter receiver FC / LC , 1310 1550µm Digital Audio Converter Single Mode supplier HD sdi video transmitter receiver FC / LC , 1310 1550µm Digital Audio Converter Single Mode supplier HD sdi video transmitter receiver FC / LC , 1310 1550µm Digital Audio Converter Single Mode supplier

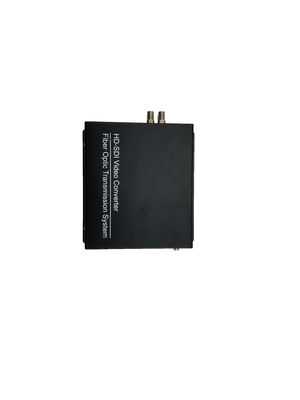

Large Image :  HD sdi video transmitter receiver FC / LC , 1310 1550µm Digital Audio Converter Single Mode

Product Details:

Place of Origin: CHINA
Brand Name: HO-LINK
Certification: CE RoHS FCC
Model Number: HL-HDSDI-4V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Corlor: Black Distance: 0-20KM
Weighted Signal/noise Ratio: ≥65dB Data Connector: RS-485/422,RS232
Optical Interface: FC SC ST Wavelength: 1310/1550µm(Single Mode)

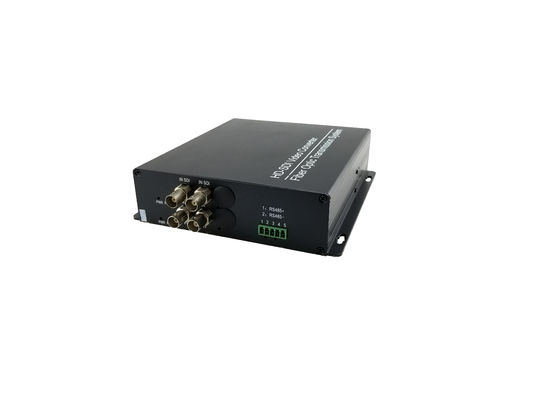

HD sdi video transmitter receiver FC / LC , 1310 1550µm Digital Audio Converter Single Mode



Overview



   HD-SDI is a multi-service transmission device which can transfer real-time HD-SDI, audio, data, alarm switching value and Ethernet signals. Compared with the traditional HD-SDI fiber transmitter and receiver, it has the advantages of high capability, multi-service and low cost. This series of products is widely used in city security, high way, rail way, electrical power, petroleum and petrochemical field and other industries which demand real time HD surveillance.











Features

  • lFull digital non-compression broadcast level transmission;



    lpoint -to-point, cascade connected, distributed network connection supported, and with steady SNR;



    l Fiber optical Mux supports level 3 lightning protection;



    lfree of cross interference resulted from FM/PM/AM optical transmitter and receiver;



    lall high-resolution video signal supported;



    lLossless video regeneration & relaying supported;



    lsuper optic dynamic range and free of adjustment prior to use;



    lsurface coating technique;



    lfiber optic WDM/CWDM/DWDM technique;



    l1000 M optical fiber transmission, easy for update;



    lindustry level ultra-broad temperature range (-40°C~+85°C), adaptable to various environments;



    l Fiber optical Mux spports on-power hot plug;



    lwall-mounted or 2U rack-mounted;



    luser's customization and OEM supported.











Applications:
• Intelligent Transportation System
• Connection of Sub-network for Surveillance Center
• Public Security Surveillance
• High way&Toll Station Surveillance
• High Quality Video Conference
• Industrial Closed Circuit Television Surveillance
• TV-live,audio,phone,ethernet,transmission



Intelligent transport monitoring system, safety and security monitoring system, campus network, industrial monitoring (electric power, chemical industry, steel, oil, railway and water conservancy etc.);military monitoring (warehouse, guard and confidentiality etc.) TV program transfer system.

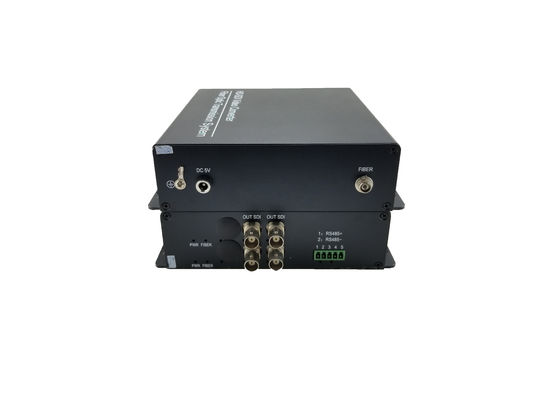

HD sdi video transmitter receiver FC / LC , 1310 1550µm Digital Audio Converter Single Mode













Specifications





Optical Parameters
Wavelength 850/1310µm(Multi-mode)
1310/1550µm(Single Mode)
Optical Interface FC, SC, and ST optional
Video Parameters
Interface BNC outlet
Nominal Input/output PWL 1.0Vp-p
Nominal Input/output Impedance 75Ω(Unbalanced)
Video Bandwidth 5Hz~10MHz
Weighted Signal/noise Ratio ≥65dB
Audio Parameters
Frequency Width 20Hz~20KHz
Audio Direction Forward, reverse, or bi-direction optional
Interface RCA, Terminal block optional
Input/output Impedance 600Ω(Balanced / Unbalanced)
Weighted Signal to noise Ratio >85dB
Data Parameters
Data Type RS232, RS485, RS422, Manchester, Bi-phase
Data Direction Forward, reverse, or bi-direction optional
Interface RJ45, Terminal Block optional
Communication Speed 0~300Kbps
Work Mode FDX/semi duplex
Error Code Rate < 10-9
Ethernet
Work Mode 10/100M automatic, FDX/semi duplex
Interface RJ45
Standard ANSI X3T12TP-PMD, IEEE 802.3/802.3u
Protocol IEEE 802.1q VLAN, IEEE 802.3x FDX fluid control and Back-Pressure semi duplex fluid control











Shipping and packing:



Package:neutral /standard/customized packing



Shipment :DHL /TNT /EMS etc.(enable the fastest delivery to your place)







Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China


Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03









FAQ


Q:Are you a factory or trading company?

We are a factory

Q:Where is your factory located? How can I visit there?

Our factory is located in Shenzhen City, Guangdong Province, China, about 1 hours train from Hongkong. All our clients, from home or abroad, are warmly welcome to visit us!

Q:What’s the most valuable and important parts for fiber optical converter ?

Chipset, fiber transceiver and power adaptor

Q:How does Ho-link make the quality control of media converter/SFP transceiver/video converter ?

Every product must be tested as above process before leaving factory.

Q:How about the Ho-link product price ?

Ho-link can not make sure our price is the lowest in the market, but we can make sure our price is the most competitive based on the same quality.

Q:What’s MOQ for OEM ?

Generally speaking, MOQ should be 500 pcs each item for OEM service; if you are the new customers, 500pcs may be the problem for the trial orders, you can discuss the detailed MOQ which you can accept with the Ho-link sales. Ho-link have never made the MOQ as the obstacle between our cooperation
