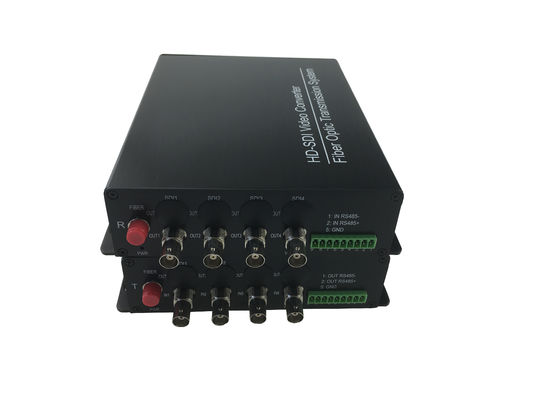

4Ch 1080P HD SDI To Fiber Converter With RS485 Reverse Data , One SDI Loop Out

China 4Ch 1080P HD SDI To Fiber Converter With RS485 Reverse Data , One SDI Loop Out supplier
4Ch 1080P HD SDI To Fiber Converter With RS485 Reverse Data , One SDI Loop Out supplier 4Ch 1080P HD SDI To Fiber Converter With RS485 Reverse Data , One SDI Loop Out supplier 4Ch 1080P HD SDI To Fiber Converter With RS485 Reverse Data , One SDI Loop Out supplier 4Ch 1080P HD SDI To Fiber Converter With RS485 Reverse Data , One SDI Loop Out supplier

Large Image :  4Ch 1080P HD SDI To Fiber Converter With RS485 Reverse Data , One SDI Loop Out

Product Details:

Place of Origin: CHINA
Brand Name: HO-LINK
Certification: CE RoHS FCC
Model Number: HL-HDSDI-4V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Corlor: Black Warranty: 3 Years
Unit: Pair Data Connector: RS-485/422,RS232
Video Interface: BNC Video Broad Band: 5-8MHZ

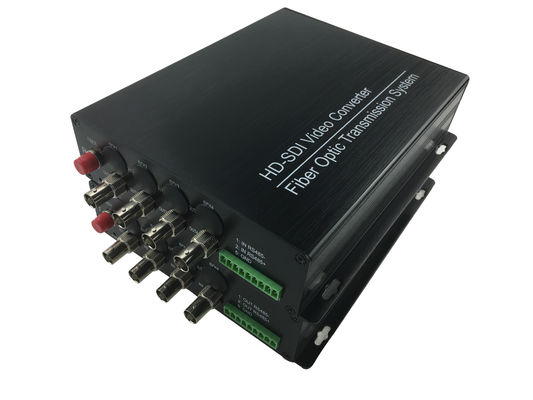

4Ch 1080P HD SDI To Fiber Converter With RS485 Reverse Data , One SDI Loop Out







Overview



     SDI Series supports 4-channel HD-SDI standard high-definition video signal transmitted via single fiber optical cable.HO-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P HD-SDI signal. HO-link HD-SDI Fiber Converters can simultaneously transmit 4-Ch SDI Video, 1/2-Ch Audio, 1/2-Ch Data RS-232/422/485, 1/2-Ch Switching Value, and 1-Ch Ethernet signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level, supports RS-232, RS-422 and RS-485 data communication format and Ethernet connection.











Features

  • SD/HD-SDI video signal supported;
  • Complied with SMPTE 259M SD-SDI, SMPTE 292M HD-SDI
  • Support 1485Mb/s and 270Mb/s transmission data rate
  • Audio, Switching Value, RS232/422/485 Data Oprional
  • Support 1080P@30,29.97,25,24,23.98; 1080I@60,59.94,50; 720P@60,59.94, 50,30,29.97,25,24,23.98 and 625i, 525i video format
  • Full digital non-compression broadcast level transmission;
  • super optic dynamic range and free of adjustment prior to use;
  • surface coating technique;
  • fiber optic WDM/CWDM/DWDM technique;
  • 1000M optical fiber transmission, easy for update;
  • industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;

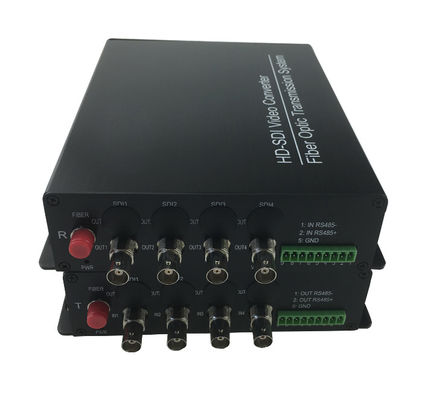

4Ch 1080P HD SDI To Fiber Converter With RS485 Reverse Data , One SDI Loop Out





Specifications



Video specification Port 4
Video Interface BNC
Video In/Out put Impedance 75Ω
Video In/Out put Voltage (typical)1.0Vp-p Max:1.5Vp-p
Video Broad Band 5-8MHZ
Differential Gain <1%(typical)
Differential Phase <0.6°
SNR >=68dB
Field Gradient <0.5%
Data Characteristics Physical connector Phoenix contact(DATA)
Data connector RS-485/422,RS232
Channels of data forward and reverse path data multi-channels
Interface port Industrial standard interface port
Environment Specification Working Temperature range from -30 to +75
Storage Temperature range from -40 to +85
Humidity 0-95%
Optical Budget Fiber type MM SM SM SM
Budget 20dB 20dB 22dB 25dB
Transmission Distance 2KM 20KM 40KM 60KM
Other specification Rated Voltage AC220V/50HZ
Power supply DC5V/1A
Power <5W
Sampling rate 15MHZ
MTBF >=10,000Hours












Shipping and packing:



international standard package

shipped: 3-5 working days after payment









Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China


Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03









Product Advantage:

• Low cost

• Plug-and-play

• Build-in remote diagnostic capability

Since the launch of our products on the domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security, Bank , ect. To be in line with different needs of different customers, we have people to trace the latest market information so as to keep our products competitive and vital.

Our knowledgeable sales, technical support and engineering staff are dedicated to understanding your requirements and designing products & solutions to meet your needs. We shall be pleased to provide you fiber optical network products with our best price, superior quality and fast delivery.











Company Profile



     Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

     Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
