Uncompressed 1 channel HDMI To Fiber Converter 20Km HDMI Extender Over Fiber Video Converter

China Uncompressed 1 channel HDMI To Fiber Converter 20Km HDMI Extender Over Fiber Video Converter supplier
Uncompressed 1 channel HDMI To Fiber Converter 20Km HDMI Extender Over Fiber Video Converter supplier Uncompressed 1 channel HDMI To Fiber Converter 20Km HDMI Extender Over Fiber Video Converter supplier Uncompressed 1 channel HDMI To Fiber Converter 20Km HDMI Extender Over Fiber Video Converter supplier Uncompressed 1 channel HDMI To Fiber Converter 20Km HDMI Extender Over Fiber Video Converter supplier Uncompressed 1 channel HDMI To Fiber Converter 20Km HDMI Extender Over Fiber Video Converter supplier Uncompressed 1 channel HDMI To Fiber Converter 20Km HDMI Extender Over Fiber Video Converter supplier

Large Image :  Uncompressed 1 channel HDMI To Fiber Converter 20Km HDMI Extender Over Fiber Video Converter

Product Details:

Place of Origin: CHINA
Brand Name: ho-link
Certification: CE RoHS FCC
Model Number: HL-HDMI-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10pairs
Price: negotiation
Packaging Details: internatinal standard package
Delivery Time: 3-5 working days
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Features: Uncompressed Fiber Connector: SC Duplex Connector
Single Mode: 20/40/80 Km Resolution: 1920*1080 @ 60Hz.
Brand: Ho-link I/O Connector: HDMI / DVI

1920X1080@60Hz HDMI SFP Optical Extender fiber to 0Km HDMI Extender over Fiber Video Converter 1080p audio video converter via LC connector,uncompressed 20/40/80 km





Overview

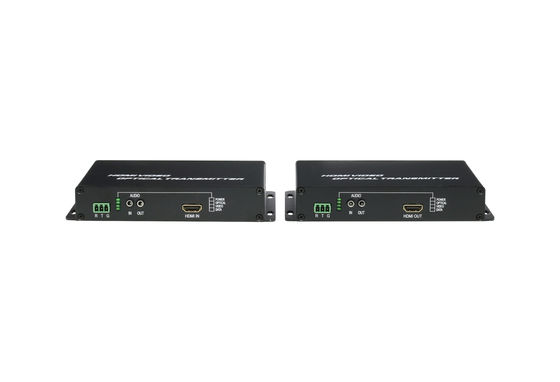

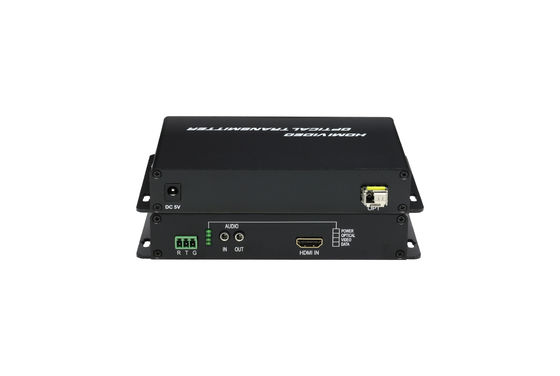

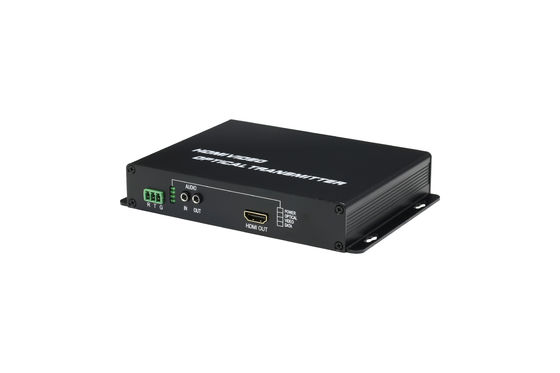

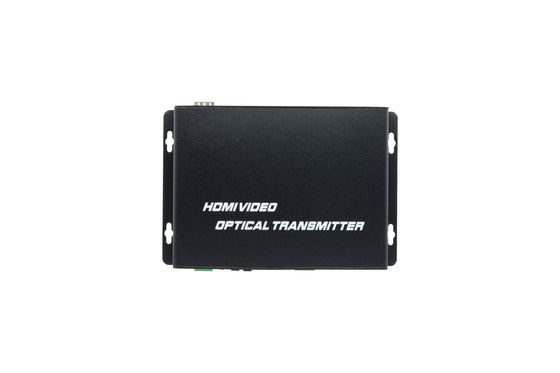

  The device includes a sender and a receiver, which can transmit HDMI video and Audio signal of PC to a remote location over single/duplex fiber cable, so that user can see the real-time picture image remotely.



  This high-end fiber VGA/DVI/HDMI extender is designed specially for the projects that require transmitting high definition signals to remote location . The product includes a transmitter and a receiver, which can extend video, audio, RS232,USB and MIC interfaces of computer max up to 2km/20km over SM/MM fiber cable, so that users can see the picture image and hear the voice of computer remotely.

They are widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.



Uncompressed 1 channel HDMI To Fiber Converter 20Km HDMI Extender Over Fiber Video Converter





 Features



1) Full digital, uncompressed, high-definition fiber optic transmission
2) 1ch unidirectional HDMI/DVI video signal, 2ch bidirectional audio signal, 1ch bidirectional data transmission
3) Function of alarm for remote device power failure, easy for maintenance
4) Standalone and rack-mounted types, with rack-mount type supporting hot spare for power supply, and hot swap for boards

5) Pure hardware design, no need software driver,

6) Support HDMI, Audio interface

7)Support 1920*1080 @ 60Hz.

8)Max extension distance 2KM(MM)/20KM(SM).

9)Support plug and play, compatible with all operation system.

10)Support VGA/DVI/HDMI,USB,audio,MIC,RS232 signals.

11)Support adjustment of sampling frequency, phase, and image horizontal/vertical position, as well as the signal input indication.







Technical Parameter




Video
I/O connector HDMI / DVI
HDMI version HDMI1.1 1.2 1.3
HDCP HDCP1.2
HDMI resolution 1080p/1080i/720p/720i/576p/576i/480p/480i
Video color format 24bit/deep color 30bit/deep color 36bit
Audio format DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
TMDS 0.5-1.5Vp-p(TTL)
DDC 5Vp-p(TTL)
Input cable length ≤20m AWG26 HDMI 1.3 standard cable
Output cable length ≤20m AWG26 HDMI 1.3 standard cable
Optical Connector SM/MM SC/FC/ST
Wave length 1310nm/1550nm
Physical Size (L× W ×H)

transmitter : 168x154x45mm ,

receiver:157mmx81mmx29mm

Case Aluminum
Color Black
N.W. transmitter : 1kg , receiver:0.4Kg
Power Voltage 5~12V DC
transmitter power consumption 5W
receiver power consumption 3.5W
Environment Working temperature -20℃-70℃
Storage temperature -40-85℃
Humidity 0-95% (non-condensing)















Product connection diagram



Remote OB Van/Truck Video Feeds;

Broadcast Studio Camera Feeds;

Long-haul Signal Transport;

TV station/video conference;

Lecture Hall Projector Connectivity;

Medical/Surgical Room Broadcast;

Small corporate campus video links

Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects

fiber optics to rf media converter
