1080P@60hz 1Channel HDMI video embedded +1Ch outside stereo audio+1Ch Return RS232 data,10KM,LC,1310/1550nm

China 1080P@60hz 1Channel HDMI video embedded +1Ch outside stereo audio+1Ch Return RS232 data,10KM,LC,1310/1550nm supplier
1080P@60hz 1Channel HDMI video embedded +1Ch outside stereo audio+1Ch Return RS232 data,10KM,LC,1310/1550nm supplier 1080P@60hz 1Channel HDMI video embedded +1Ch outside stereo audio+1Ch Return RS232 data,10KM,LC,1310/1550nm supplier 1080P@60hz 1Channel HDMI video embedded +1Ch outside stereo audio+1Ch Return RS232 data,10KM,LC,1310/1550nm supplier 1080P@60hz 1Channel HDMI video embedded +1Ch outside stereo audio+1Ch Return RS232 data,10KM,LC,1310/1550nm supplier

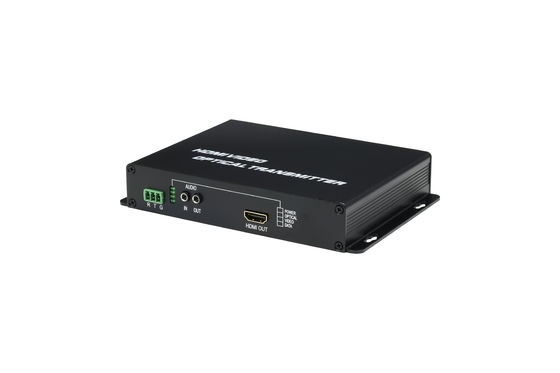

Large Image :  1080P@60hz 1Channel HDMI video embedded +1Ch outside stereo audio+1Ch Return RS232 data,10KM,LC,1310/1550nm

Product Details:

Place of Origin: CHINA
Brand Name: ho-link
Certification: CE RoHS FCC
Model Number: HL-HDMI-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10pairs
Price: negotiation
Packaging Details: internatinal standard package
Delivery Time: 3-5 working days
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Optical Port: FC Distance: 0~100KM
Wavelength: 1310/1550nm AC Power Adapter: US Standard, UK Standard
Converter Unit: CE,FCC,ROHS Corlor: Black

4K Mini 1080P@60hz HDMI to fiber extender,1Channel HDMI video embedded +1Ch outside stereo audio+1Ch Return RS232 data,10KM,LC





Overview

   HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and highspeed digital optical fiber transmission technology advanced,It can transfer signal source(computer signal source,VGAsignal source high digital DVD/DVR…) to long distance terminal easily,with strong antiinterferance performance,ensure the signal completed and stable



1080P@60hz 1Channel HDMI video embedded +1Ch outside stereo audio+1Ch Return RS232 data,10KM,LC,1310/1550nm







 Features

  • Full digital non-compression broadcast level transmission;
  • Supports highest video resolution up to 1080p
  • Supports 8bit per channel (24bit all channel) deep color.
  • level 3 lightning protection;
  • free of cross interference resulted from FM/PM/AM optical transmitter and receiver;
  • 1080P high resolution HD audio and video signal;
  • Lossless video regeneration & relaying supported;
  • super optic dynamic range and free of adjustment prior to use;
  • surface coating technique;
  • fiber optic WDM/CWDM/DWDM technique;
  • 1000 M optical fiber transmission, easy for update;
  • industry level ultra-broad temperature range (-40°C~+85°C), adaptable to various environments;
  • wall-mounted or 2U rack-mounted;
  • user's customization and OEM supported.
  • Easily to installation, plug and play, no need to set up

 Part 2 Standard Package
HDMI transmitter 1 pcs
HDMI receiver 1 pcs  5V/2A 2 pcs
User Guide 1 pcs







Technical Parameter



HDMI High-Definition Digital Video Optical Transmitter and Receiver
Technical Parameters
Number of VideoChannels 1 channel
Video Bandwidth TMDS MAX 10.8GHz
HDMI version 1.0~1.2a,1.3 1.4
Color depth TMDS MAX 48bit/px
Supported VideoFormats MAX 1080P@1920x1080/60Hz
AC Power Adapter US standard, UK standard
Differential Phase <0.6° (typical)"1"
Converter Unit CE,FCC,ROHS
Optical FiberIndexes

Optical Port: FC (optional) Single-Mode:0~100KM

Wavelength: 1310/1550nm

Expanded Options
Data Channel

RS485 (reverse) /422/RS232 and NRA/RZI/Manchester supported

Physical Interfaces: Standard industrial terminal Operating Mode: Simplex

Transfer Rate 0 to 400Kbps

Error Rate < 10-9

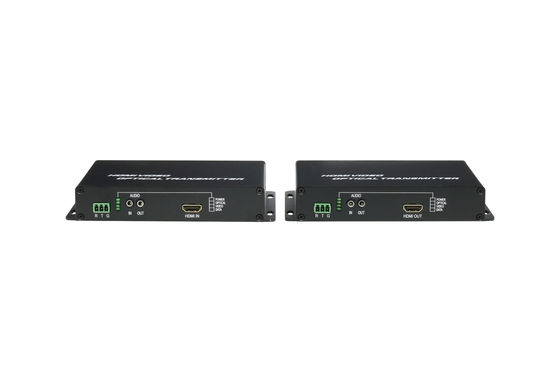

Product connection diagram



Fiber Optic to HDMI video converter





a. Fiber-optic video transceiver mark



T: fiber-optic transmitter



R: fiber-optic receiver



b. Power indication



Light on, Fiber-optic video transceiver is working.



c. Fiber interface



LC interface(SFP) (Warring:When the device is power on,don’t look directly into the eyes,in order to avoid eyesight damage)



d. Receiver indication



Light on, Fiber-optic video transceiver is reciveing signal.



e. Video interface



T: HDMI video signal input interface



R: HDMI video signal output interface



f. Video indication



Light on, Fiber-optic video transceiver is reciveing video signal,or transmitting video signal.



g. Audio indication



Light on, Fiber-optic video transceiver is reciveing audio signal,or transmitting audio signal.



h. Data interface



reverse data output



Left: positive output data



Middle:negative output data



right:ground



i. Reverse data indication



Light on,data is transmitting .



Light off,no data signal.



j. Lock indication



Light on,video data and audio data is locked.



k. struction of the back bord

Fiber Optic to HDMI video converter

DC5V power supply unit for this device.
