|Error Rate:||< 10-9||Corlor:||Black|

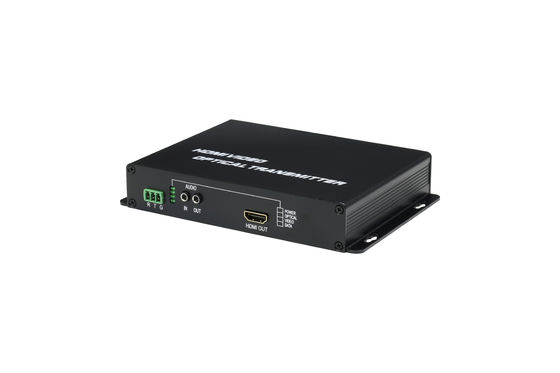

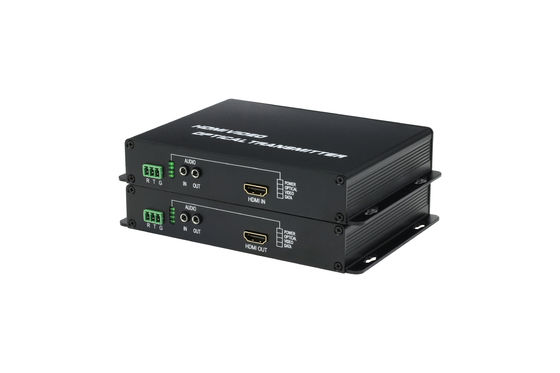

HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and highspeed digital optical fiber transmission technology advanced,It can transfer signal source(computer signal source,VGAsignal source high digital DVD/DVR…) to long distance terminal easily,with strong antiinterferance performance,ensure the signal completed and stable
|HDMI High-Definition Digital Video Optical Transmitter and Receiver|
|Number of VideoChannels||1 channel|
|Video Bandwidth||TMDS MAX 10.8GHz|
|HDMI version||1.0~1.2a,1.3 1.4|
|Color depth||TMDS MAX 48bit/px|
|Supported VideoFormats||MAX 1080P@1920x1080/60Hz|
|Differential Gain||<1% (typical)|
|Differential Phase||<0.6° (typical)"1"|
|Video Interface||HDMI A Type|
Optical Port: FC (optional) Single-Mode:0~100KM
RS485 (reverse) /422/RS232 and NRA/RZI/Manchester supported
Physical Interfaces: Standard industrial terminal Operating Mode: Simplex
Transfer Rate 0 to 400Kbps
Error Rate < 10-9

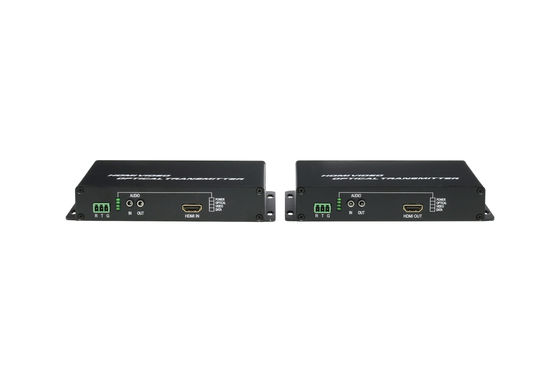

Product connection diagram
a. Fiber-optic video transceiver mark
T: fiber-optic transmitter
R: fiber-optic receiver
b. Power indication
Light on, Fiber-optic video transceiver is working.
c. Fiber interface
LC interface(SFP) (Warring:When the device is power on,don’t look directly into the eyes,in order to avoid eyesight damage)
d. Receiver indication
Light on, Fiber-optic video transceiver is reciveing signal.
e. Video interface
T: HDMI video signal input interface
R: HDMI video signal output interface
f. Video indication
Light on, Fiber-optic video transceiver is reciveing video signal,or transmitting video signal.
g. Audio indication
Light on, Fiber-optic video transceiver is reciveing audio signal,or transmitting audio signal.
h. Data interface
reverse data output
Left: positive output data
Middle:negative output data
i. Reverse data indication
Light on,data is transmitting .
Light off,no data signal.
j. Lock indication
Light on,video data and audio data is locked.

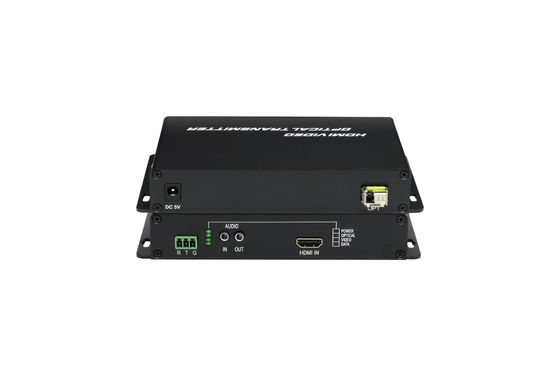

k. struction of the back bord
DC5V power supply unit for this device.
