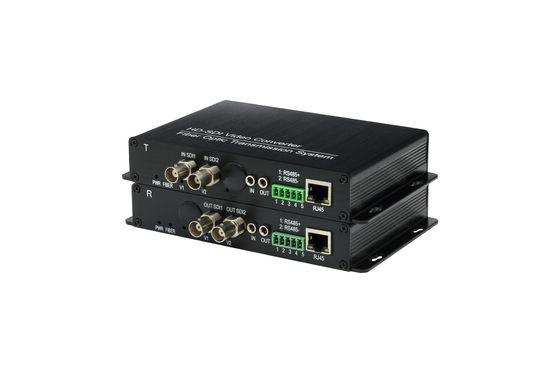

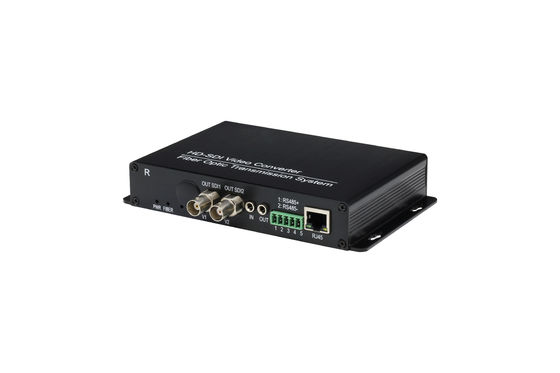

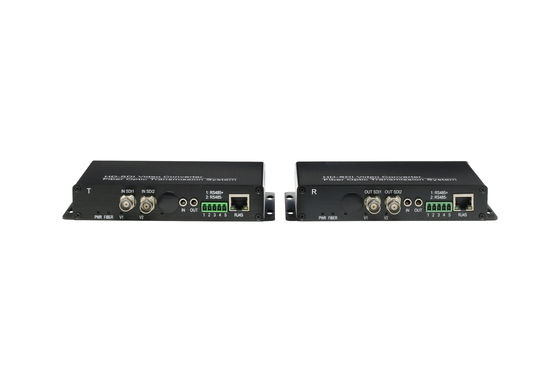

AC Input Coupling 2channel HD SDI To Fiber Converter Transmission Distance 20 / 40 / 80 km
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Channel: | 16 | Signal Type: | HD-SDI Video Converter |
|---|---|---|---|
| Data Format: | RS-232/422/485 | DC Offset: | 5V |
| Transmission Distance: | 20/40/80km | Input Coupling: | AC |
| Highlight: | hd sdi transmitter,hd sdi to fiber optic converter |
||
HD-SDI over fiber video converter,2-Ch HD-SDI video embeded with audio+1Ch Return 485/232/422,data,1.25G
Overview:
This SDI to Fiber extension set includes an SDI to Fiber Transmitter and Receiver for transmitting multi-rate SDI up to 18 miles (30 Km) over fiber using a single-mode or multi-mode fiber optic cable with ST connectors.
It is a miniature-style extension solution that supports all SDI formats up to 3G including; SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), and SMPTE-259M (SD-SDI) protocols.
To prevent signal loss, input signals are equalized and ouputs reclocked to 120 meters for 3G-SDI and 140 meters for HD-SDI.
Features:
« 4-ch HDSDI
« Range from 19.4Mb/s to 1.485Gb/s
« SMPTE 292M (1.485Gb/s) clock recovery
« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
« Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
« 150m automatic cable equalization, all the 1.485 Gb / s rate below(Belden 1694A)
« Optional network management system
« LED status indicators monitor the critical parameters
« Optional network system
« Support hot swap
« Stand-alone, 1U rack mount and 4U rack mount
Parameter of sdi fiber optic transceiver
| SDI Video | Interface | 1 Channel HD-SDI Video Input |
| Connector | 1 BNC Connector | |
| Signal Type | HD-SDI,SDI Digital Video Signal | |
| Support Agreement | SMPTE259-M-C, SMPTE 292M, SMPTE424M, | |
| ITU-R BT. 601, ITU-R BT.1120 | ||
| Gain | Entity | |
| Resolution | 8 or 10bits, Automatic | |
| Rate | 270Mbps, 1.485Gbps, 2.970Gbps | |
| Automatic Data Rate Lock | Yes | |
| The nominal level | 0.8Vp-p | |
| Minimum / maximum level | 0.5V-1Vp-p No offset | |
| Resistance | 75ohms | |
| Return Loss | ≥15Db 5MHz-1.5GHz | |
| ≥10dB 1.5GHz-3GHz | ||
| DC offset (maximum allowable) | 5V | |
| Input coupling | AC | |
| Input cable equalization | Automatic reach of fiber loss -30dB |
networking application
