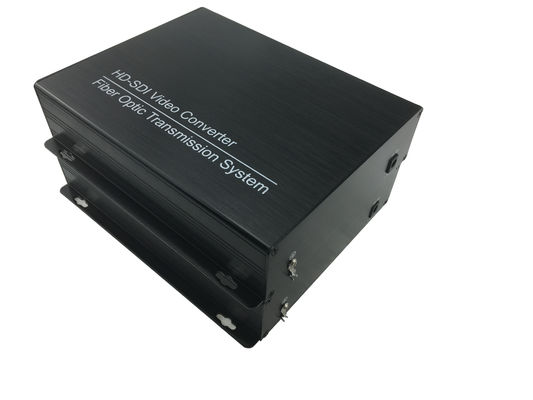

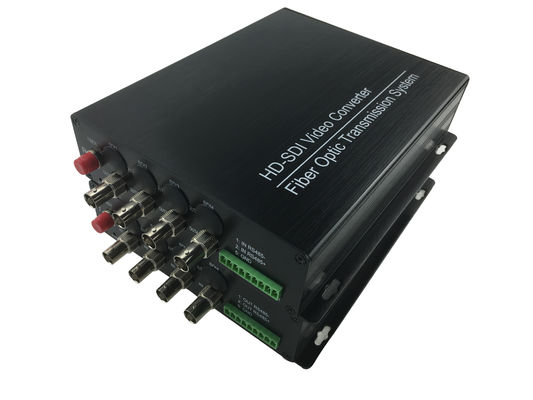

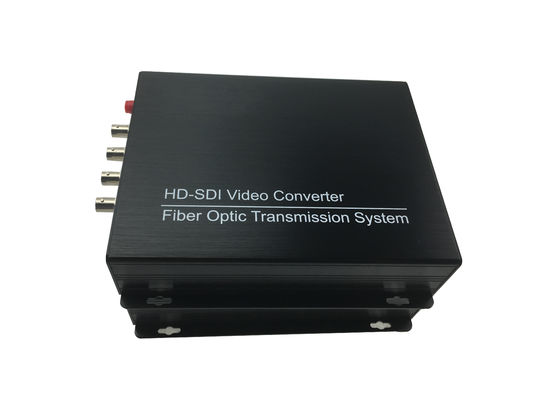

4 channels HD SDI To Fiber Converter CCTV HD-SDI Fiber Transceiver Multimode 1310/1550nm

Large Image : 4 channels HD SDI To Fiber Converter CCTV HD-SDI Fiber Transceiver Multimode 1310/1550nm

Product Details:

Place of Origin:	China
Brand Name:	Ho-link/OEM
Certification:	CE/ROHS/FCC
Model Number:	HL-1V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pair
Price:	Negotiable
Packaging Details:	Neutral /Standard/Customized packing
Delivery Time:	3 working days after received your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10000pairs/month

Contact Now

Detailed Product Description

Product Name:	HD-SDI Video To Fiber Converter	Data Format:	RS422, 485 (2 Or 4line)
Rise/fall Time:	< 270pS (1.485Gbps)	Reflection Loss:	> 15DB
Connector:	FC / PC (SC / PC Optional)	Connecter:	BNC 75Ω
Highlight:	hd sdi transmitter , hd sdi to fiber optic converter

4ch Security HD-SDI TO Fiber Optic/CCTV 4 port HD-SDI fiber transceiver Mulitmode Wavelength 1310/1550nm

Overview:

This SDI to Fiber extension set includes an SDI to Fiber Transmitter and Receiver for transmitting multi-rate SDI up to 18 miles (30 Km) over fiber using a single-mode or multi-mode fiber optic cable with ST connectors.

It is a miniature-style extension solution that supports all SDI formats up to 3G including; SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), and SMPTE-259M (SD-SDI) protocols.

To prevent signal loss, input signals are equalized and ouputs reclocked to 120 meters for 3G-SDI and 140 meters for HD-SDI.

Features:

« 4-ch HDSDI

« Range from 19.4Mb/s to 1.485Gb/s

« SMPTE 292M (1.485Gb/s) clock recovery

« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s

« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard

« Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)

« 150m automatic cable equalization, all the 1.485 Gb / s rate below(Belden 1694A)

« Optional network management system

« LED status indicators monitor the critical parameters

« Optional network system

« Support hot swap

« Stand-alone, 1U rack mount and 4U rack mount

Technical Indexes

HD-SDI Video
Channels		Transmitter-1 input. Receiver-2 output
Signal Format		SMPTE292M/259M/297M/305M/310M/344M (SMPTE424Moptional)
Signal rate		270Mbps~1.485Gbps (2.97Gbpsoptiona)
Input / output level		0.8Vp-p±10%
Reflection Loss		>15dB
Cable transmission (Belden 1694A)		0~150m (1.485Gbps)
Rise/fall time		< 270pS (1.485Gbps)
Jitter		< 0.2UI
Overshoot		< 10%
Connecter		BNC 75Ω

Data
Channel		One (reverse)
Data format		RS422, 485 (2 or 4line)
		Manchester code
Data rate		DC-115Kbps (NRZ)
Operating Mode		Full Duplex or Half Duplex
BER		<10-9 (max link loss)
Connector Type		Phoenix terminal

Optical
Operating wavelength		1310/1550nm or CWDM
Fiber type		SM or Multimode
Link loss		12~30dB
Fiber		1
Connecter Type		LC (FC/SC/ST optional)
Distance		20~120km

Power
Stand-alone		0.6A@12VDC
Rack-mount		0.6A@12VDC
Power Consumption		3W

Dimensional Drawings (mm) Application Diagram
