2 CH Optical Transceiver Module HD-SDI Fiber Optic Converter Extender Up To 60 Km

China 2 CH Optical Transceiver Module HD-SDI Fiber Optic Converter Extender Up To 60 Km supplier
2 CH Optical Transceiver Module HD-SDI Fiber Optic Converter Extender Up To 60 Km supplier 2 CH Optical Transceiver Module HD-SDI Fiber Optic Converter Extender Up To 60 Km supplier 2 CH Optical Transceiver Module HD-SDI Fiber Optic Converter Extender Up To 60 Km supplier 2 CH Optical Transceiver Module HD-SDI Fiber Optic Converter Extender Up To 60 Km supplier

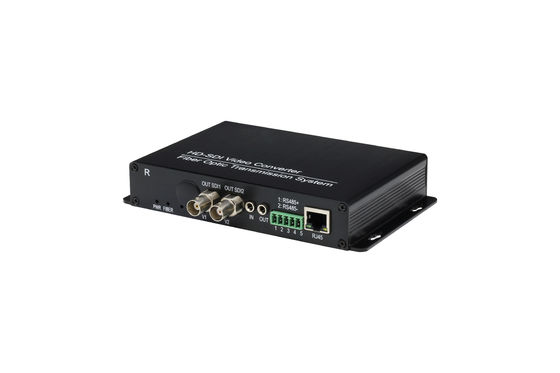

Large Image :  2 CH Optical Transceiver Module HD-SDI Fiber Optic Converter Extender Up To 60 Km

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pairs/month
Contact Now
Detailed Product Description
Product Name: HD-SDI Video To Fiber Converter Mulitmode Wavelength: 850/1310nm
Input Power: 12 VDC @1A Reflection Loss: > 15DB
Connector: FC / PC (SC / PC Optional) Transmission Distance: Standard 10km

2CH optical transceiver module HD-SDI Fiber media converter extender up to 60km







Overview:



    This SDI to Fiber extension set includes an SDI to Fiber Transmitter and Receiver for transmitting multi-rate SDI up to 18 miles (30 Km) over fiber using a single-mode or multi-mode fiber optic cable with ST connectors.

     It is a miniature-style extension solution that supports all SDI formats up to 3G including; SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), and SMPTE-259M (SD-SDI) protocols.

     To prevent signal loss, input signals are equalized and ouputs reclocked to 120 meters for 3G-SDI and 140 meters for HD-SDI.







Features:



1. 8-bit or 10-bit digitally encoded and non-compression video transmission



2. Directly compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-232, RS-422
and RS-482 data protocols



3. Power supply and other parameter state indication, which can monitor the operation condition of system



4. Support no-damage regenerative trunk of video



5. Constant input optical power, and large dynamic range, no electrical or optical adjustments required



6. Special ASIC design



7. Industry-grade of operating temperature from 10 to 75, which is applied to the different working environment



8. Hot-swap function



9. Stand-alone type or card-type installed in 19" 2U or 4U rack-mount chassis



10. Optical interface: FC, ST, SC(optional)



11. Abundant signal interface, such as video, data, audio, telephone, Ethernet, binary input/ output and talk back







Technical Indexes

Television signal standard Wavelength SMPTE 259M A, B, C, D, SMPTE 297M, SMPTE 305M,
SMPTE 310M, SMPTE 344M, M2S & DVB-ASI
Number of Inputs 1
Number of Outputs 1 or 2 (Can be optional)
Reflection loss > 15DB
Balanced 0-300m @ 270Mb / s
Connector 75Ω BNC
Distance 0~500M (MM) / 0~120KM (SM)

Optical properties

Fiber Quantity 1CH
Cable transmission type single-mode fiber (multimode optional)
Output power -5 ~-10dBm (0 ~-5dBm for 80km)
Receiver sensitivity -26dBm (-30dBm for 60km)
Wavelength > 14dB
Jitter <0.2UI
Connector FC / PC (SC / PC optional)

Serial TV BNC output (EO / OE):


Output Quantity 1 channel transmitter loop out (optional) Receiving end 2-way
Signal Level 800mV nominal
Rise / Fall Time 900ps nominal
Reflection loss 15dB
Jitter 75Ω BNC
Wavelength 1310nm (1550nm optional ultra-long haul)

Electrical Specifications

Input Power 12 VDC @1A
Power consumption (maximum) Transmitter: 1.8W Receiver: 1.5W
Operating temperature -10°C ~55°C
Storage temperature -10°C to 70°C
Operating humidity 0 ~ 95% (non-condensing)
Net Weight 1000g per pair
Case material Aluminum

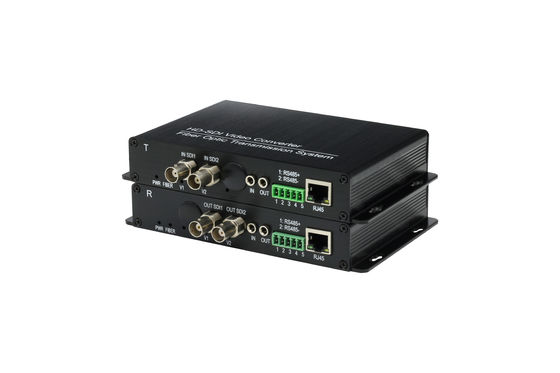

2 CH Optical Transceiver Module HD-SDI Fiber Optic Converter Extender Up To 60 Km

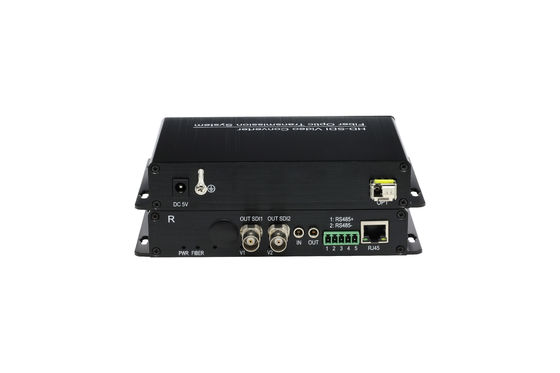

2 CH Optical Transceiver Module HD-SDI Fiber Optic Converter Extender Up To 60 Km
