Standard 10 Km Transmission HD SDI Optical Transceiver Module Fiber Media Converter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | HD-SDI Video To Fiber Converter | Mulitmode Wavelength: | 850/1310nm |
|---|---|---|---|
| Fiber Optical: | Simplex LC | Rack Power: | AC Line Cord |
| Data Rate: | 2.97Gb/s,1.485Gb/s And 270Mb/s | Transmission Distance: | Standard 10km |
| Highlight: | hd sdi transmitter,hd sdi to fiber optic converter |
||

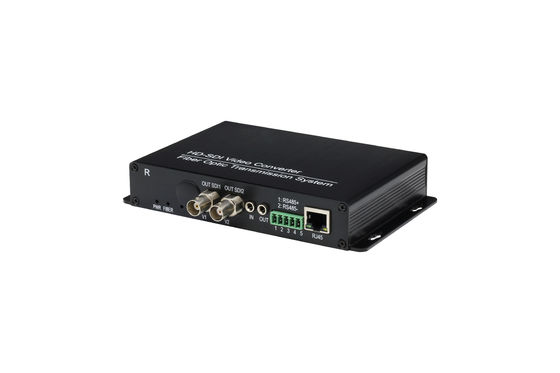

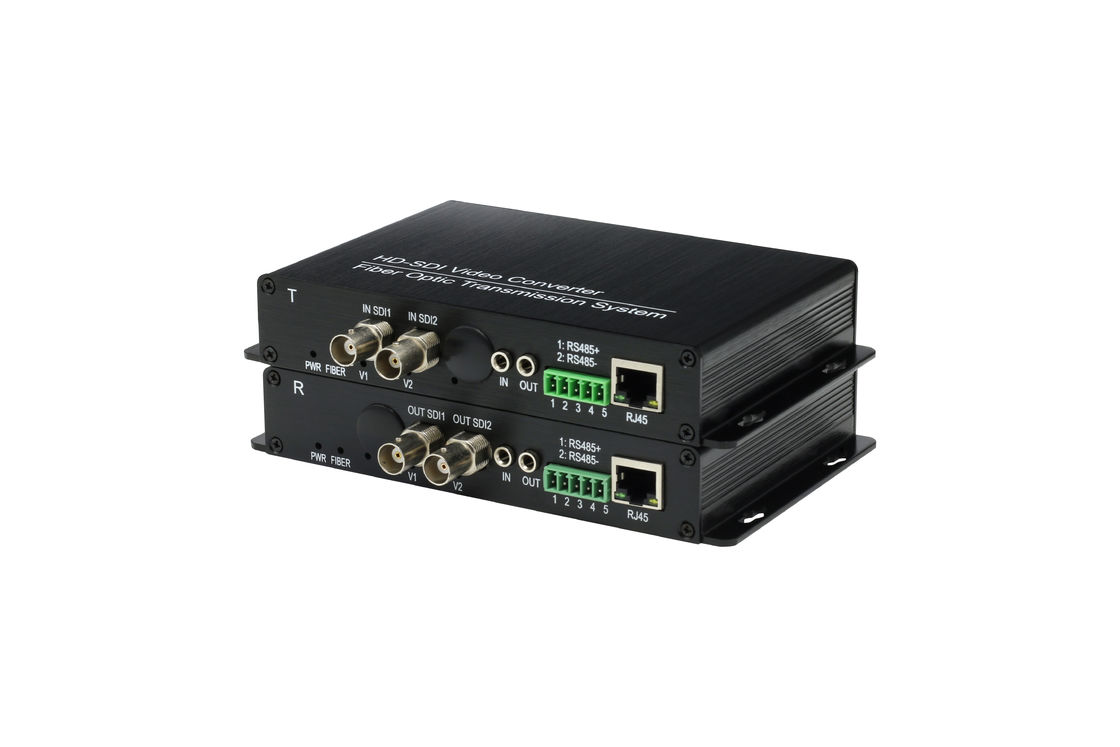

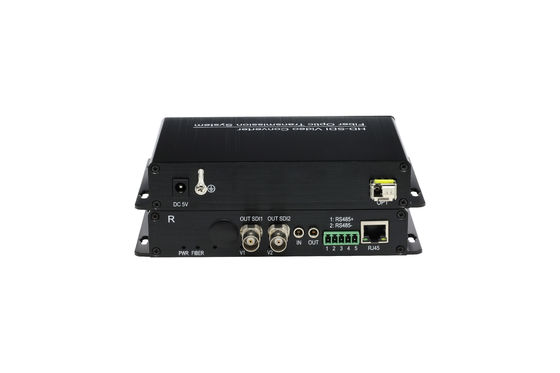

HD-SDI 2CH optical transceiver module Fiber media converter extender up to 20km
Overview:
This SDI to Fiber extension set includes an SDI to Fiber Transmitter and Receiver for transmitting multi-rate SDI up to 18 miles (30 Km) over fiber using a single-mode or multi-mode fiber optic cable with ST connectors.
It is a miniature-style extension solution that supports all SDI formats up to 3G including; SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), and SMPTE-259M (SD-SDI) protocols.
To prevent signal loss, input signals are equalized and ouputs reclocked to 120 meters for 3G-SDI and 140 meters for HD-SDI.
Features:
1. 8-bit or 10-bit digitally encoded and non-compression video transmission
2. Directly compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-232, RS-422
and RS-482 data protocols
3. Power supply and other parameter state indication, which can monitor the operation condition of system
4. Support no-damage regenerative trunk of video
5. Constant input optical power, and large dynamic range, no electrical or optical adjustments required
6. Special ASIC design
7. Industry-grade of operating temperature from 10 to 75, which is applied to the different working environment
8. Hot-swap function
9. Stand-alone type or card-type installed in 19" 2U or 4U rack-mount chassis
10. Optical interface: FC, ST, SC(optional)
11. Abundant signal interface, such as video, data, audio, telephone, Ethernet, binary input/ output and talk back
Technical Indexes
| Television signal standard Wavelength | SMPTE 259M A, B, C, D, SMPTE 297M, SMPTE 305M, SMPTE 310M, SMPTE 344M, M2S & DVB-ASI |
| Number of Inputs | 1 |
| Number of Outputs | 1 or 2 (Can be optional) |
| Reflection loss | > 15DB |
| Balanced | 0-300m @ 270Mb / s |
| Connector | 75Ω BNC |
| Distance | 0~500M (MM) / 0~120KM (SM) |
Optical properties
| Fiber Quantity | 1CH |
| Cable transmission type | single-mode fiber (multimode optional) |
| Output power | -5 ~-10dBm (0 ~-5dBm for 80km) |
| Receiver sensitivity | -26dBm (-30dBm for 60km) |
| Wavelength | > 14dB |
| Jitter | <0.2UI |
| Connector | FC / PC (SC / PC optional) |
Serial TV BNC output (EO / OE):
| Output Quantity | 1 channel transmitter loop out (optional) Receiving end 2-way |
| Signal Level | 800mV nominal |
| Rise / Fall Time | 900ps nominal |
| Reflection loss | 15dB |
| Jitter | 75Ω BNC |
| Wavelength | 1310nm (1550nm optional ultra-long haul) |
Electrical Specifications
| Input Power | 12 VDC @1A |
| Power consumption (maximum) | Transmitter: 1.8W Receiver: 1.5W |
| Operating temperature | -10°C ~55°C |
| Storage temperature | -10°C to 70°C |
| Operating humidity | 0 ~ 95% (non-condensing) |
| Net Weight | 1000g per pair |
| Case material | Aluminum |
