720/1080p 3G-SDI Fiber Optic Video Transmitter Receiver Single Mode / Multi - Mode +SFP

China 720/1080p 3G-SDI Fiber Optic Video Transmitter Receiver Single Mode / Multi - Mode +SFP supplier
720/1080p 3G-SDI Fiber Optic Video Transmitter Receiver Single Mode / Multi - Mode +SFP supplier 720/1080p 3G-SDI Fiber Optic Video Transmitter Receiver Single Mode / Multi - Mode +SFP supplier 720/1080p 3G-SDI Fiber Optic Video Transmitter Receiver Single Mode / Multi - Mode +SFP supplier 720/1080p 3G-SDI Fiber Optic Video Transmitter Receiver Single Mode / Multi - Mode +SFP supplier 720/1080p 3G-SDI Fiber Optic Video Transmitter Receiver Single Mode / Multi - Mode +SFP supplier 720/1080p 3G-SDI Fiber Optic Video Transmitter Receiver Single Mode / Multi - Mode +SFP supplier

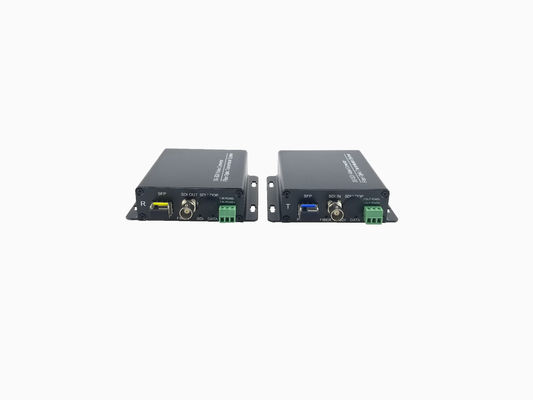

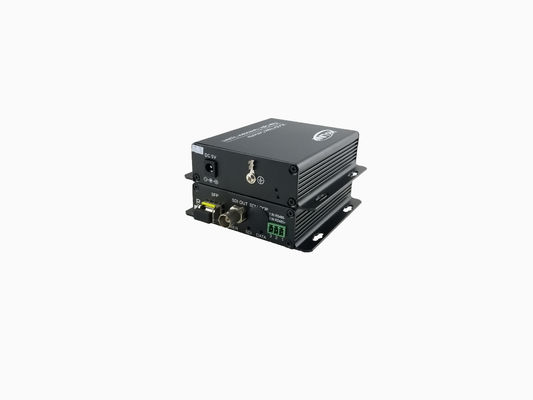

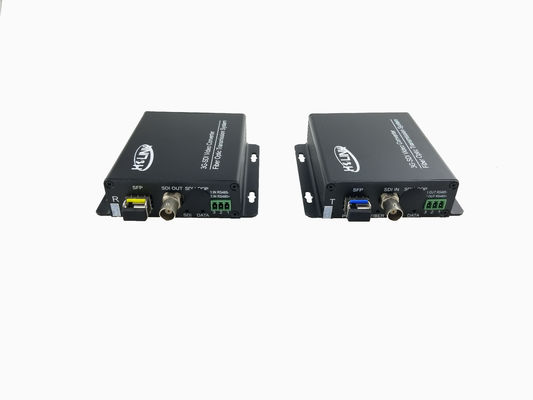

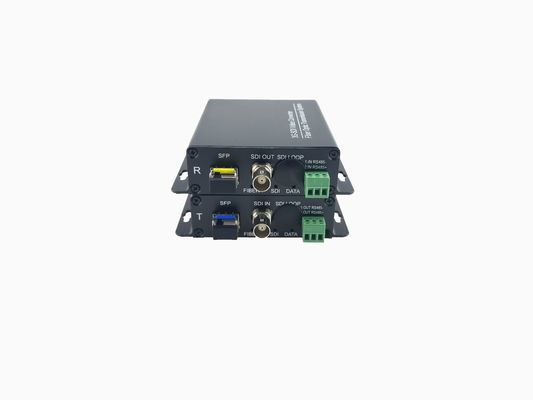

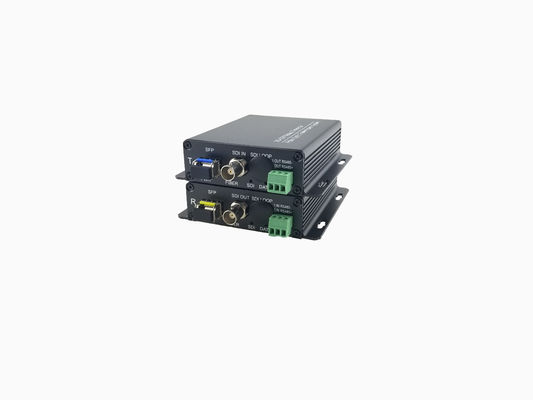

Large Image :  720/1080p 3G-SDI Fiber Optic Video Transmitter Receiver Single Mode / Multi - Mode +SFP

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-8V1D-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G SDI To Fiber Converter Wavelength: Single-mode 1310nm
Bandwidth: 2.97Gbps Connector: LC
Interface Type: FC/SC/LC Support Resolution: 1080P@60fps,1080P@30fps

3G-SDI video transmitter and receiver to fiber optic over single mode or multi-mode





Product Description
720/1080p 3G-SDI Fiber Optic Video Transmitter Receiver Single Mode / Multi - Mode +SFP



System Design Fiber Optic Video Transmitter & Receiver



SDI series can transmission 1/2/4/8-Channels

SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.







Single-Mode or Multi-Mode



SD-SDI/HD-SDI/3G-SDI units are designed to support LC /PC Optical connector

We will offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical

connector.



The Transmission distance Range according to the Optical Budget.



Manufacturer's default standard is single mode 20Km .









Features



•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

The Max rate of work is 3.2Gb/s

Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

LED Status Indication to monitor the working conditions

Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94










Instructions for use

Application Diagram

RS485 3G/HD SDI fiber video transmitter used digital optical transmission







Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization









Parameter



Description







Video







connector BNC female joint
The interface bandwidth 1.4835Gbps,1.485Gbps,2.967Gbps,2.97Gbps
impedance 75Ω
Resolution

1920*1080@60Hz; 1920*1080@50Hz;

1920*1080@30Hz; 1920*1080@25Hz;

1920*1080@24Hz; 1280*720@60Hz;

1280*720P@50Hz; 525i; 625i



RS485



connector Industrial terminals
Baud rate Support various rate



Optical fiber

connector LC
type Single-mode
Wavelength Single-mode 1310nm
bandwidth 2.97Gbps
Transmission distance Single-mode:5/10/20/40/80km





Other

Power Power adapter:DC 5V/2A
Power dissipation MAX 2.5W
Temperature -5 ~ +70
Humidity 5% ~ 90%
Size 120mmX97.5mmX25.2mm
Warranty 1 year










Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed
