|Product Name:||3G SDI To Fiber Converter||Return Loss:||>15DB|
|Bit Error Rate:||< 10 -12||Voltage:||5VDC|
|Interface Type:||FC/SC/LC||Support Resolution:||1080P@60fps,1080P@30fps|

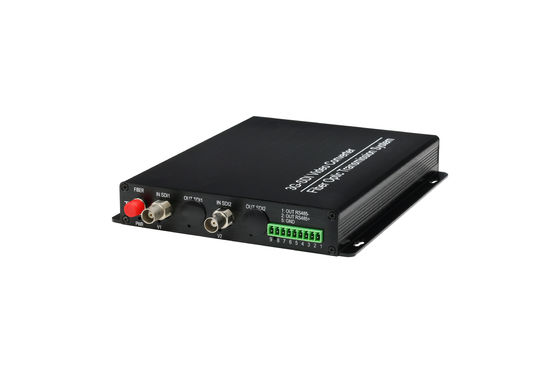

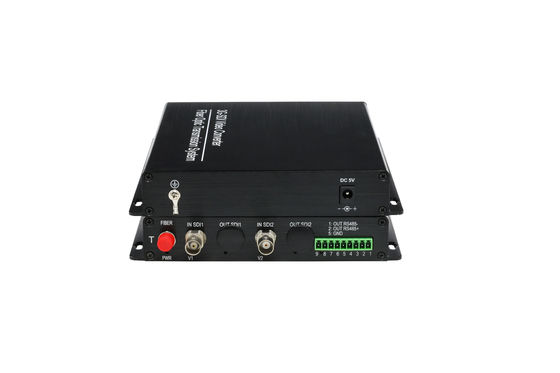

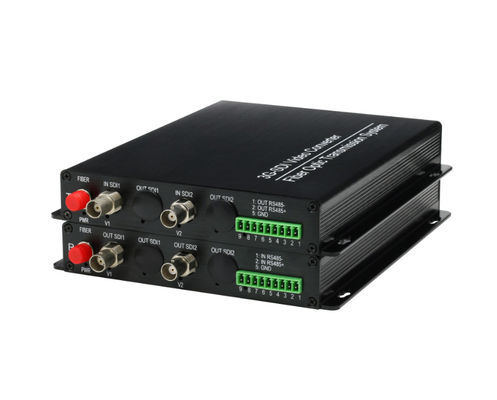

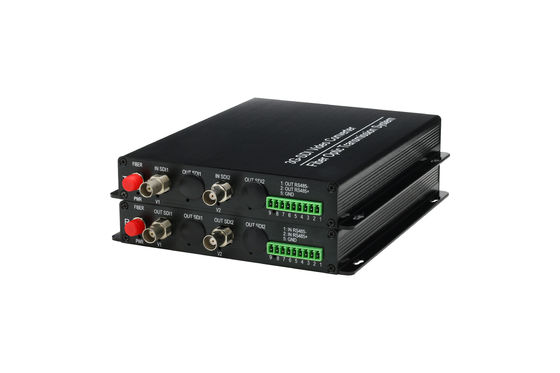

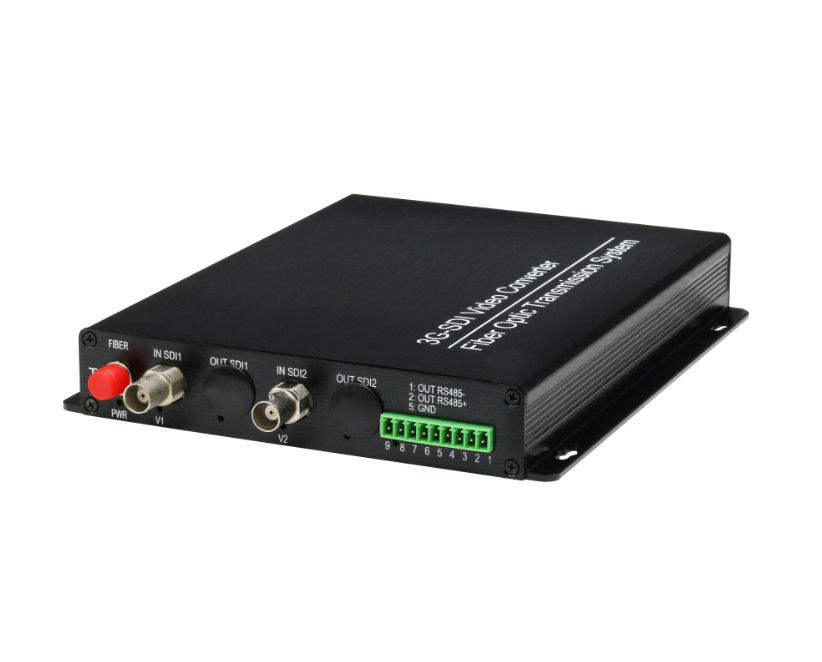

2 Channel 3g-sdi fiber optical transmitter and receiver with RS485,WDM video converter,Security system
The HD-SDI Optical Transceiver is designed for TV industry, with high reliability and high performance. Signal formats from 270 Mbps to 2.97Gbps. The system support signals accord with standards of SMPTE424M,SMPTE292M, SMPTE259M, SMPTE344M and support digital TV signals like DVB-ASI(EN50083-9), meeting the industrial and relevant requirements of audio and television products. We have 2-channel video, 4-channel video SDI Optical transceivers available.
• 3G/HD/SD-SDI high definition digital code and non-compressing video transmission
• Work ranges from 270 Mbps to 2.97Gbps.
• Support all SMPTE 259M standard, work in 270Mbps - 360Mbps
• Support SMPTE424M,SMPTE292M, SMPTE259M, SMPTE344M and DVB-ASI(270Mb/s) standards
• 300M (1000ft) automatic cable-balance @ SD mode;150 M (500ft) automatic cable-balance@ HD/3G(Belden 1694A)
• LED indicators for monitoring of system operating status
• Network management function are optional
• Reverse Rs485/ 232 data are optional
• Standalone or 19 "standard 3U,4U,5.5U rack mounting
• Special ASIC design, support Hot-swap function
• Support 3G/HD/SD high-resolution video signal
• In the absence of input signal, automatically shut down the laser head to extend laser life
• Optical output wavelength ranges from 1310nm, 1550nm to up to 16 CWDM wavelengths (ITU-T G.694.2 compliant)
|Serial TV||BNC input|
TV Signal Standards
|SMPTE424M,SMPTE292M, SMPTE259M, SMPTE344M ,DVB-ASI and Other Telecom/ Datacom rate (270Mbps -2.97Gbps)|
|Video Input||1, 2,4 channels|
|Balance||0-150m @ 1.5Gb/s|
|Video Connector||75Ω BNC|
|Fiber Type||Single mode Single fiber(Multi mode is optional)|
|Wave length||1310nm /1550nm|
|Return Loss||> 15dB|
|Optical Connector||LC/ ST/FC optional|
|Reverse Data RS485/RS232||Transmission Speed 0 to 400Kbps|
|Bit Error Rate||< 10 -12|
|Serial TV Output||BNC output (EO/OE) as input|
|Video Output||1, 2, 4 channels;|
|Signal level||800mV nominal|
|Rise/fall time||200ps nominal|
|Overshoot||< 10% amplitude|
|Return Loss||more than 15dB|
|Power Consumption||1V<10W; 2V/4V<15W|
|EMI/RFI||Accord with FCC Part 15 Class A, EU EMC standards|
|(MTBF)||more than 100,000 hours|
•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).
•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization
