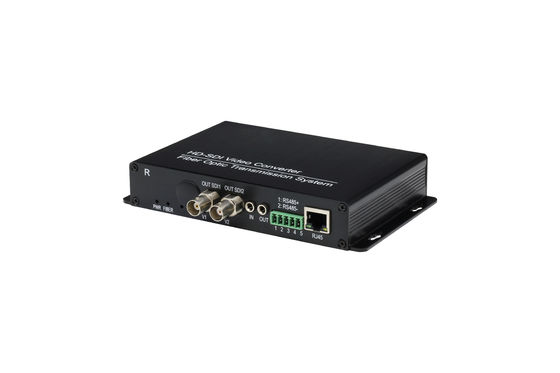

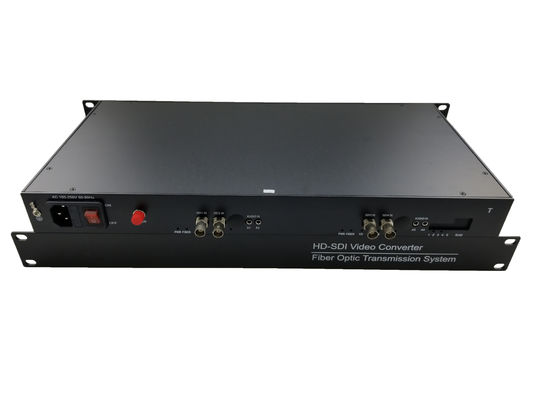

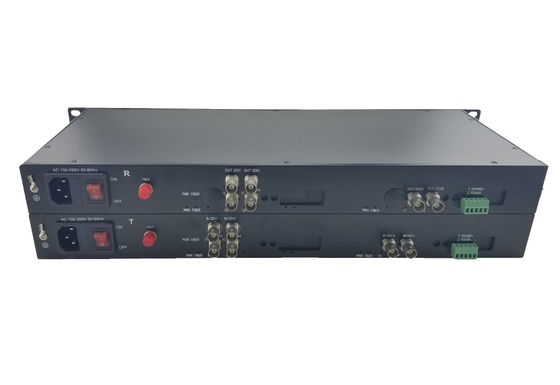

1 / 2 / 4 / 8 / 16 Ch HD SDI To Fiber Converter Embedded With 485 / 232 / 422 Data

China 1 / 2 / 4 / 8 / 16 Ch HD SDI To Fiber Converter Embedded With 485 / 232 / 422 Data supplier
1 / 2 / 4 / 8 / 16 Ch HD SDI To Fiber Converter Embedded With 485 / 232 / 422 Data supplier 1 / 2 / 4 / 8 / 16 Ch HD SDI To Fiber Converter Embedded With 485 / 232 / 422 Data supplier 1 / 2 / 4 / 8 / 16 Ch HD SDI To Fiber Converter Embedded With 485 / 232 / 422 Data supplier 1 / 2 / 4 / 8 / 16 Ch HD SDI To Fiber Converter Embedded With 485 / 232 / 422 Data supplier 1 / 2 / 4 / 8 / 16 Ch HD SDI To Fiber Converter Embedded With 485 / 232 / 422 Data supplier

Large Image :  1 / 2 / 4 / 8 / 16 Ch HD SDI To Fiber Converter Embedded With 485 / 232 / 422 Data

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: HD-SDI To Fiber Converter Connector: FC / PC (SC / PC Optional)
Reflection Loss: >15DB Fiber Quantity: 1CH
Operating Temperature Range: -5℃ ~ +70℃



1/2/4/8/16-Ch HD-SDI video embeded with audio+1Ch Return 485/232/422,data





Product Description





     It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m







Features



•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

The Max rate of work is 3.2Gb/s

Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

LED Status Indication to monitor the working conditions

Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94









Application

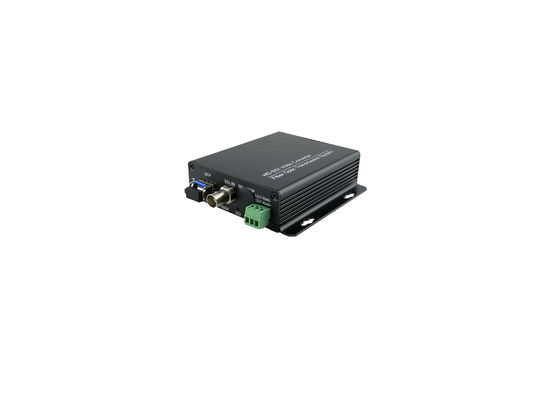

1Ch HD SDI Fiber Optical Transceiver With 2 Output







Technical Indexes

Television signal standard Wavelength SMPTE 259M A, B, C, D, SMPTE 297M, SMPTE 305M,
SMPTE 310M, SMPTE 344M, M2S & DVB-ASI
Number of Inputs 1
Number of Outputs 1 or 2 (Can be optional)
Reflection loss > 15DB
Balanced 0-300m @ 270Mb / s
Connector 75Ω BNC
Distance 0~500M (MM) / 0~120KM (SM)

Optical properties

Fiber Quantity 1CH
Cable transmission type single-mode fiber (multimode optional)
Output power -5 ~-10dBm (0 ~-5dBm for 80km)
Receiver sensitivity -26dBm (-30dBm for 60km)
Wavelength > 14dB
Jitter <0.2UI
Connector FC / PC (SC / PC optional)

Serial TV BNC output (EO / OE):


Output Quantity 1 channel transmitter loop out (optional) Receiving end 2-way
Signal Level 800mV nominal
Rise / Fall Time 900ps nominal
Reflection loss 15dB
Jitter 75Ω BNC
Wavelength 1310nm (1550nm optional ultra-long haul)

Electrical Specifications

Input Power 12 VDC @1A
Power consumption (maximum) Transmitter: 1.8W Receiver: 1.5W
Operating temperature -10°C ~55°C
Storage temperature -10°C to 70°C
Operating humidity 0 ~ 95% (non-condensing)
Net Weight 1000g per pair
Case material Aluminum







Packaging & Shipping

1Ch HD SDI Fiber Optical Transceiver With 2 Output
