1080P@30Hz 1 Channel HD SDI To Fiber Converter For Security System Single Mode 1310nm

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

1080P@30Hz 1 Channel HD SDI To Fiber Converter For Security System Single Mode 1310nm

China 1080P@30Hz 1 Channel HD SDI To Fiber Converter For Security System Single Mode 1310nm supplier
1080P@30Hz 1 Channel HD SDI To Fiber Converter For Security System Single Mode 1310nm supplier 1080P@30Hz 1 Channel HD SDI To Fiber Converter For Security System Single Mode 1310nm supplier 1080P@30Hz 1 Channel HD SDI To Fiber Converter For Security System Single Mode 1310nm supplier 1080P@30Hz 1 Channel HD SDI To Fiber Converter For Security System Single Mode 1310nm supplier

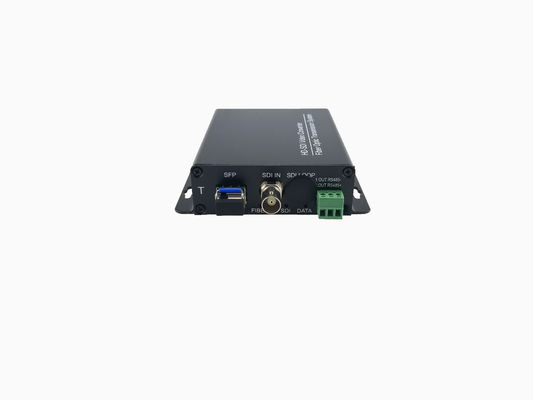

Large Image :  1080P@30Hz 1 Channel HD SDI To Fiber Converter For Security System Single Mode 1310nm

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: HD-SDI To Fiber Converter Support Definition: 1080P@30Hz
Equilibrium: 0-150m @1.485Gb/s Power Dissipation: MAX 2.5W
Wavelength: Single-mode 1310nm Connector: Industrial Terminals



1ch HD-SDI Fiber optical Transmission SDI Optical Transceiver for Security System







Product Description





     It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m







Features

n 8-bit or 10-bit digitally encoded and non-compression video transmission

n Directly compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-232, RS-422 and RS-482 data protocols

n Power supply and other parameter state indication, which can monitor the operation condition of system

n Support no-damage regenerative trunk of video

n Constant input optical power, and large dynamic range, no electrical or optical adjustments required.

n Special ASIC design

n Industry-grade of operating temperature from 10 to 75, which is applied to the different working environment

n Hot-swap function

n Stand-alone type or card-type installed in 19" 2U or 4U rack-mount chassis.

n Optical interface: FC, ST, SC(optional)

Abundant signal interface, such as video, data, audio, telephone, Ethernet, binary input/output and

talkback









Application

n City traffic monitoring system

n Police and safe city monitoring system

n High way security protection and toll station system

n Building and campus monitoring system

n Industrial monitoring(airport, chemical plant, steel, oil, railway, irrigation works, mine and so on)

n Military monitoring(storage, frontier defense, guard, national defense and so on)

n Electronic power oil field, TV station program broadcasting system

n Gymnasium (live video and audio transmission)



HD-SDI/SD-SDI over fiber video converter,1/2/4/8/16-Ch HD-SDI video embeded with audio+1Ch Return 485/232/422,data,1.5G









Specifications





Parameter Description
Video connector BNC
The interface bandwidth 1.4835Gbps,1.485Gbps,2.97Gbps
impedance 75Ω
Resolution

1920*1080@60Hz; 1920*1080@50Hz; 1920*1080@30Hz; 1920*1080@25Hz; 1920*1080@24Hz; 1280*720@60Hz;

1280*720P@50Hz; 525i; 625i

RS485 connector Industrial terminals
Baud rate Self-adaptive, Max:115200bps
Optical fiber Self-adaptive, Max:115200bps LC/SC
Wavelength Single-mode 1310nm
Transmission distance Single-mode:3/20/40/80km
Other Power Power adapter:DC 5V/2A
Power dissipation MAX 2.5W
Size 120mmX97.5mmX25.2mm

















Our Services:



A , 24 hours of technical support,so if you have any technical

problems pls let me know,we will help you to solve any

problems you are facing to at the first time.

B, "One to one" heart to heart service .We look forward continuing

long-term services for you, but not just one or two times'

co-operation.

C, Perfect after-sales service :24-hour designated telephone

number, e-mail











Ho-Link Technology Co.,Ltd










Company Information


Company Profile



Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.
