|Product Name:||HD-SDI To Fiber Converter||Power Supply:||DC5V/1A|
|Data Connector:||RS-485/422,RS232||Sampling Rate:||15MHZ|
hd-sdi fiber optical transmitter and receiver,data transmitter and receiver/catv fiber optic transmitter receiver

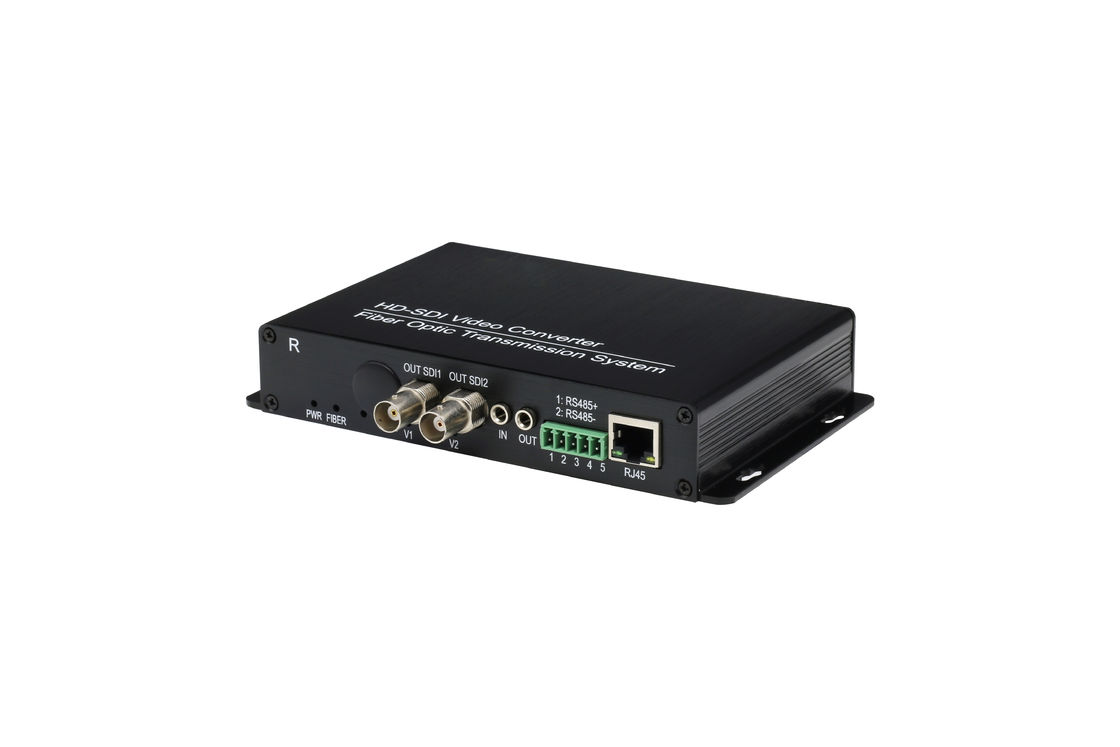

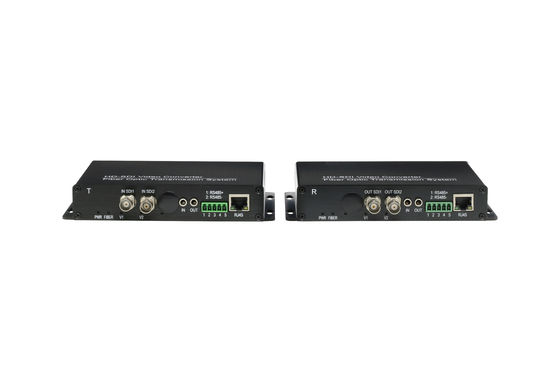

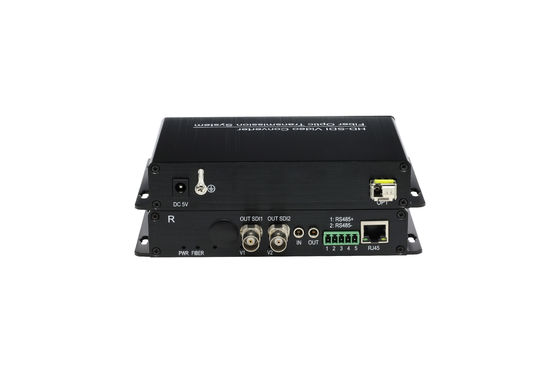

It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m
•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber
• The Max rate of work is 3.2Gb/s
• Support SMPTE 292M (2.9Gb/s) clock recovery
• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)
• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)
• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)
• LED Status Indication to monitor the working conditions
• Video transmission system can support many application branches structure
•The fiber port Support SFP transceiver hot-plugged
•The SDI video format support:
•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).
•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization
|Video In/Out put Impedance||75Ω|
|Video In/Out put Voltage||(typical)1.0Vp-p Max:1.5Vp-p|
|Video Broad Band||5-8MHZ|
|Data Characteristics||Physical connector||Phoenix contact(DATA)|
|Channels of data||forward and reverse path data multi-channels|
|Interface port||Industrial standard interface port|
|Environment Specification||Working Temperature||range from -30 to +75|
|Storage Temperature||range from -40 to +85|
|Optical Budget||Fiber type||MM||SM||SM||SM|
|Other specification||Rated Voltage||AC220V/50HZ|
