|Product Name:||HD-SDI To Fiber Converter||Support Definition:||1080P@30Hz|
|Operating Temperature:||-40～85℃||Comply Standard:||SMPTE-292M HD-SDI And SMPTE-259M SD-SDI|
|Data Rate:||2.97Gb/s,1.485Gb/s And 270Mb/s||Fiber Type:||SM Or MM|

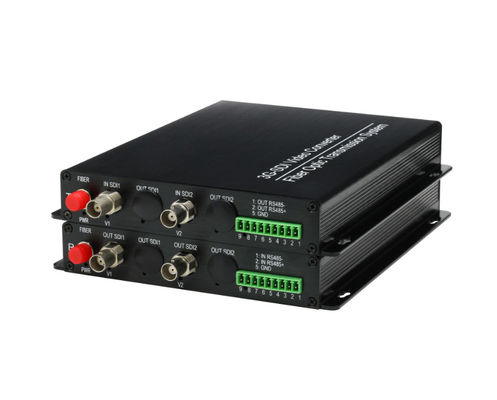

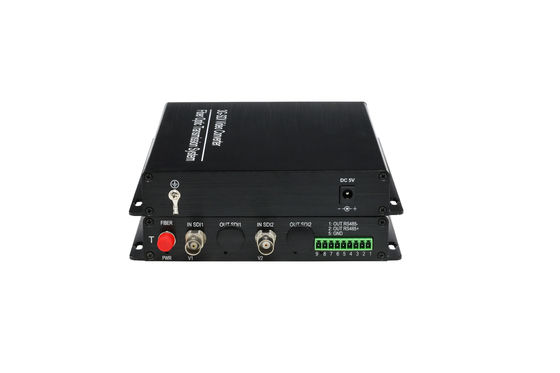

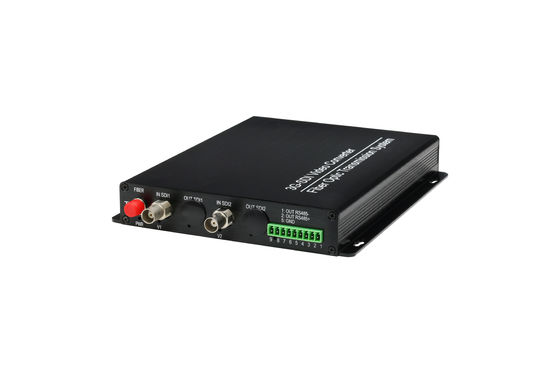

SDI fiber media converter RS485 over Fiber Optical Extender with RS485 HD-SDI to Fiber Optical Converter FC
System Design Fiber Optic Video Transmitter & Receiver
SDI series can transmission 1/2/4/8-Channels
SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.
Single-Mode or Multi-Mode
SD-SDI/HD-SDI/3G-SDI units are designed to support LC /PC Optical connector
We will offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical
The Transmission distance Range according to the Optical Budget.
Manufacturer's default standard is single mode 20Km .
•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber
• The Max rate of work is 3.2Gb/s
• Support SMPTE 292M (2.9Gb/s) clock recovery
• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)
• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)
• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)
• LED Status Indication to monitor the working conditions
• Video transmission system can support many application branches structure
•The fiber port Support SFP transceiver hot-plugged
•The SDI video format support:
•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).
•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization
Number of channels : 1/2/4/8 channels
Input/out put Connector : BNC 75Ω
Input/output voltage: 1.0 Volt p-p
Video Bits Rate: Max 3.2Gb/s
Video SDI Standards: 270Mbps(SD-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Data encode : RS485/RS422/RS232/Manchester
Physical interface : Industrial standard screw terminal
Frequency/Rate support : 0~400K bps
Number of Optical port : 1 SFP
Connector : Simplex LC
Transmission Distance: Multi-mode 550m
Single-mode 20Km – 80Km
Video : BNC 75Ω
Fiber Optical : Simplex LC
Stand-alone power: DC JACK
Rack power: AC line cord
Electrical & Mechanical
Power adaptor : AC 100-240V to DC 5V 2A
Power consumption : <3W
Operating Temperature : -45 C~+75 C
Storage Temperature : -45 C~+85 C
Relative Humidity : 0%~95% (non-condensing)
MTBF : >100,000 hours
Remark: To meet the needs of our customers and help them to realize their projects, we also can
manufacture the products according to customers' requirements.
