4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485

China 4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485 supplier
4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485 supplier 4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485 supplier 4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485 supplier 4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485 supplier 4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485 supplier

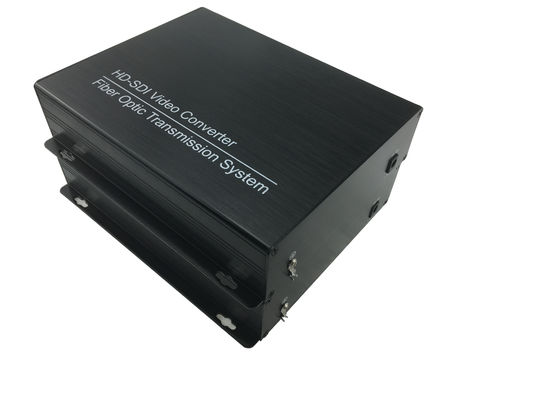

Large Image :  4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pairs/year
Contact Now
Detailed Product Description
Wavelength: 1310nm/1550nm Product Name: HD-SDI Over Fiber Converter
Fiber Connector: LC/FC/SC Fiber Optical: Simplex LC
Data Rate: 1.485Gbps Relative Humidity: 0%~95%

1 Channel HD-SDI over fiber transmitter receiver,support 1080P@30fps SDI video,85mmx76mmX30mm







Overview:



     The HL-1V-20T/R/HD-SDI is a high performance, and reliable,1-channel HD-SDI video optical transceiver, which perform real-time, loss-free and high-quality HD-SDI transmission(audio embedded) over sinle fiber, which can be widely used in TV live broadcast, high-definition video conference, high-definition video monitoring, intelligent transportation system and public security system.

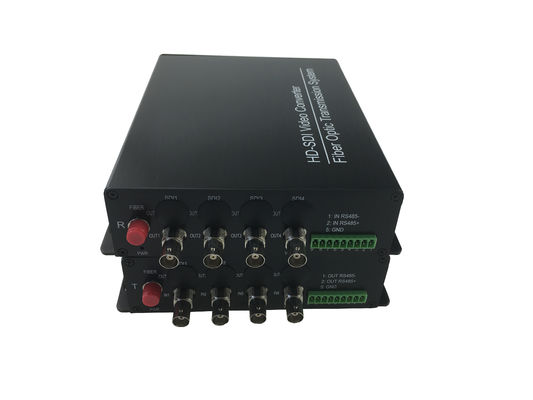

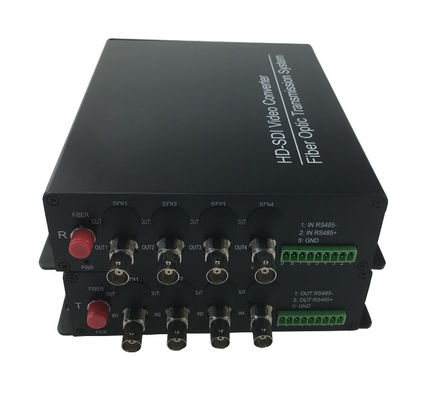

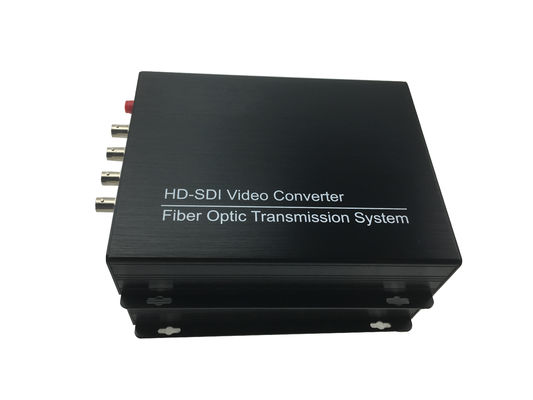

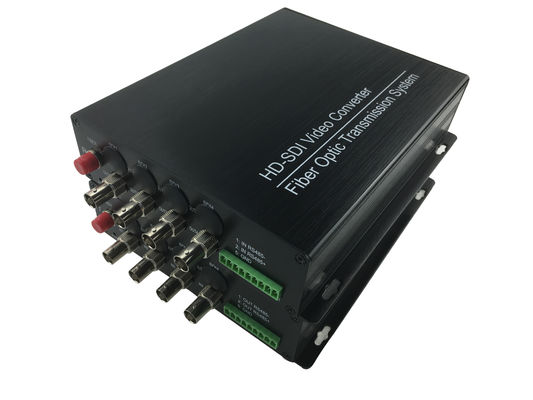

Photo show
4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs4854 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485



Specification:



Serial TV, BNC Input Signal standard: SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and Telecom/Datacom
rate 2.97Gb/s)
Input number: 2
Reflection loss: >15DB
Equilibrium: 0-150m @1.485Gb/s
Connector: FC/PC(SC/PC optional)
Optics Channel: 1
Type: SM/MM
Wavelength: 1310nm /1550nm
Trasmission distance 0-80Km
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: FC/PC (SC/PC optional)
Serial TV, BNC output (EO/OE) Output number:1
Signal level: 800mV nominal
Rise/fall time: 200ps indication
Overshoot: < 10% amplitude
Reflection loss: >15dB
Dithering: < 0.2UI
Connector: 75Ω BNC
Data Channel: 1
Data format: RS-485/422/RS232 (full/half duplex) and support NRZ, RZI and Manchester
Data rate: DC to 100 Kb/s
Mode: Full/half duplex
Connector: wire connecting terminal
Power and environmental indication Operating temperature: -40℃~+85
Pressure: 1A@12VDC
Power: 12 W
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
Average time trouble-free: >100000 hours









Feature:



1. Adopts high-definition transmission without compression technology to realize real-time, loss-free and high-quality video transmission



2. Comply with SMPTE 424M 3G SDI,SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports

2.97Gb/s,1.485Gb/s and 270Mb/s



3. 1080P@(30,29.97, 25,24,23.98)fps,1080I@(60,59.94, 50)fps,720P@(60,59.94, 50,30,29.97,25,24,23.98)fps, and 625i, 525i n



4. Embedded ESD and surge protection circuit to prevent damage from static and thunder



5. With NOP (No optical signal) alarm indications, output status indicator and input lock indicator



6. With APC circuit to perform stable optical power



7. One unidirectional(default) /bi-directional RS485 channel, half duplex, up to 115.2Kb/s baud rate.











Application:



4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485







Shipping:
4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485




4 channels 1080P@30fps HD SDI to Fiber Video Converter cctv video transmitter receiver with rs485
