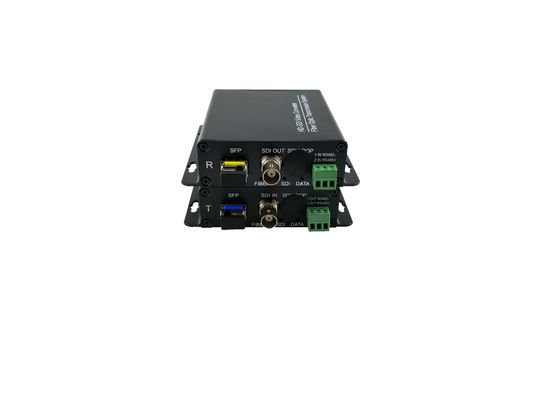

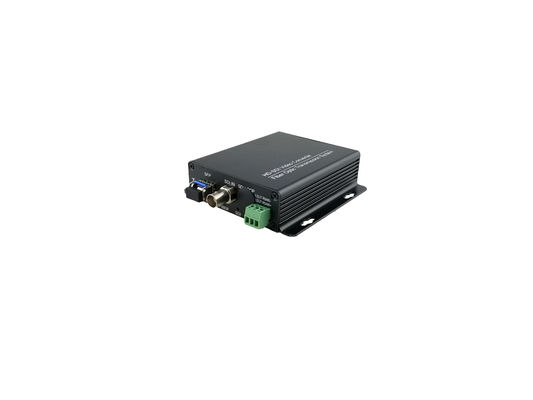

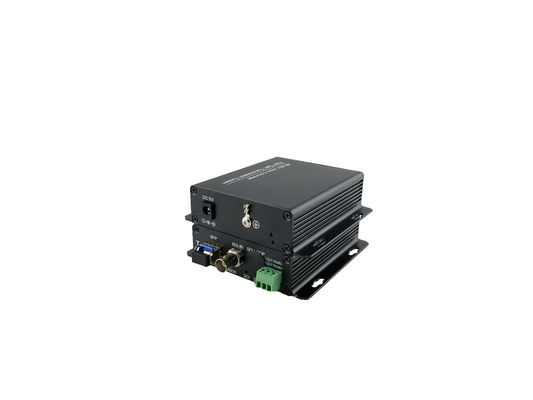

Digital Optical Video HD SDI to fiber optic converter / transmitter for BNC Connector with rj45 SFP

Large Image : Digital Optical Video HD SDI to fiber optic converter / transmitter for BNC Connector with rj45 SFP

Product Details:

Place of Origin:	China
Brand Name:	Ho-link/OEM
Certification:	CE/ROHS/FCC
Model Number:	HL-1V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity:	10Pair
Price:	Negotiable
Packaging Details:	Neutral /Standard/Customized packing
Delivery Time:	3 working days after received your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10000pairs/month

Contact Now

Detailed Product Description

Product Name:	HD-SDI To Fiber Converter	Support Definition:	1080P@30Hz
Operating Temperature:	-40～85℃	Comply Standard:	SMPTE-292M HD-SDI And SMPTE-259M SD-SDI
Data Rate:	2.97Gb/s,1.485Gb/s And 270Mb/s	Fiber Type:	SM Or MM
Highlight:	hd sdi to fiber optic converter , hd sdi extender

High Quality 1080P HD-SDI Fiber Converter digital Optical Video HD-SDI Fiber Converter Fiber HD-SDI Monitor Audio Video

Overview

HD-SDI Series SDI Video Digital Optical Converter is used in the television industry for highly reliable, high-performance serial digital optical transmission equipment, systems support SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M, as well as DVB-ASI (EN50083-9), such as digital TV format standards to meet industry level product requirements.

Features

Transmission 1 channel ASI / TS streaming digital television signals over a single fiber.
Supports SMPTE 259M and SMPTE 344M.
Supports data rates in the range of 143, 177, 270, 360, 540 Mbps and 270 Mbps DVB-ASI.
Automatic input equalization coaxial maximum 350m @ 270Mbps
The power and other parameters can monitor the system status indication LED Hot-swappable
Support 4U chassis, 1U chassis and independent structure et signal (shared 100M bandwidth, support port VLAN)

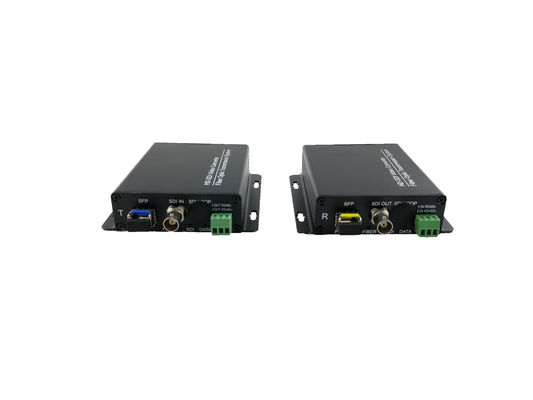

Digital Optical Video HD SDI to fiber optic converter / transmitter for BNC Connector with rj45 SFP

Application

Animal films recording;

Live events broadcast over fiber
High performance(error-free) surveilance networks in Army or security;
Large video wall system
Intelligent Traffic Monitoring System
Security systems
School networking
Industrial monitoring (Electricity,Chemistry,Steel,Oil,Railway & etc)
Military Monitoring (Warehouse,Border,Guards,etc)
Stadium (For LIVE HD video,audio transmission)

Technical Indexes

Television signal standard Wavelength	SMPTE 259M A, B, C, D, SMPTE 297M, SMPTE 305M, SMPTE 310M, SMPTE 344M, M2S & DVB-ASI
Number of Inputs	1
Number of Outputs	1 or 2 (Can be optional)
Reflection loss	> 15DB
Balanced	0-300m @ 270Mb / s
Connector	75Ω BNC
Distance	0~500M (MM) / 0~120KM (SM)

Optical properties

Fiber Quantity	1CH
Cable transmission type	single-mode fiber (multimode optional)
Output power	-5 ~-10dBm (0 ~-5dBm for 80km)
Receiver sensitivity	-26dBm (-30dBm for 60km)
Wavelength	> 14dB
Jitter	<0.2UI
Connector	FC / PC (SC / PC optional)

Serial TV BNC output (EO / OE):


Output Quantity	1 channel transmitter loop out (optional) Receiving end 2-way
Signal Level	800mV nominal
Rise / Fall Time	900ps nominal
Reflection loss	15dB
Jitter	75Ω BNC
Wavelength	1310nm (1550nm optional ultra-long haul)

Electrical Specifications

Input Power	12 VDC @1A
Power consumption (maximum)	Transmitter: 1.8W Receiver: 1.5W
Operating temperature	-10°C ~55°C
Storage temperature	-10°C to 70°C
Operating humidity	0 ~ 95% (non-condensing)
Net Weight	1000g per pair
Case material	Aluminum
