5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter

China 5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter supplier
5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter supplier 5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter supplier 5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter supplier 5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter supplier 5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter supplier

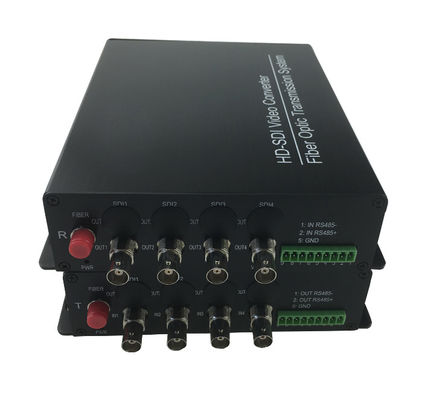

Large Image :  5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-8V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: HD-SDI To Fiber Converter Support Definition: 1080P@30Hz
Operating Temperature: -40~85℃ Comply Standard: SMPTE-292M HD-SDI And SMPTE-259M SD-SDI
Data Rate: 2.97Gb/s,1.485Gb/s And 270Mb/s Fiber Type: SM Or MM

SDI HD-SDI support 1080p@60Hz by apply 5VDC power to the converter 1080P Video HD-SDI Fiber Optical Transceiver​





Product Description



   It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m

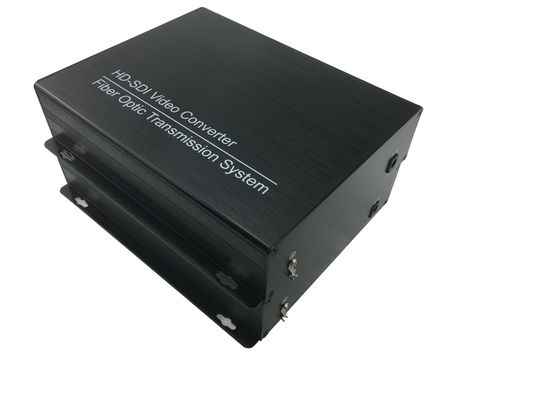

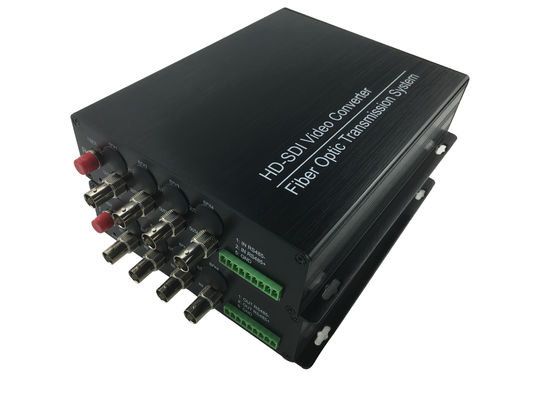

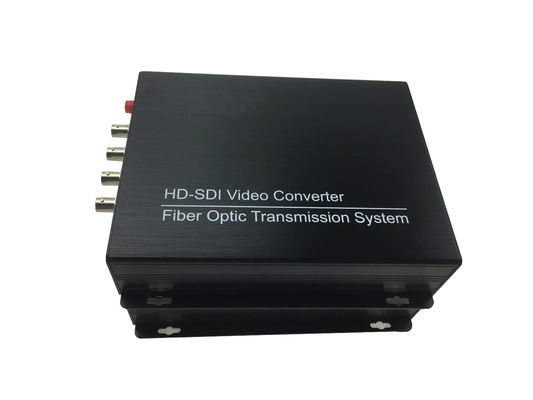

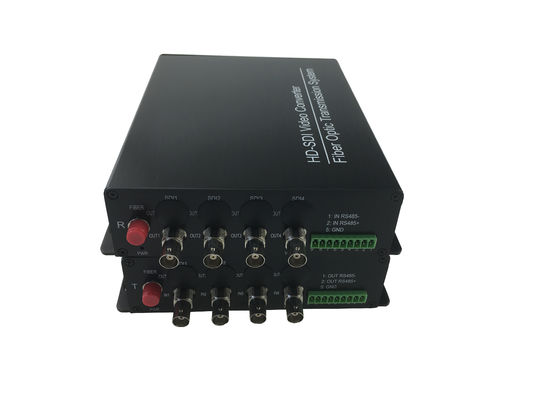

Photo show

5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter

Features



•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

The Max rate of work is 3.2Gb/s

Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

LED Status Indication to monitor the working conditions

Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94









Typical application

5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter



5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter







Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization









Specifications







Parameter Description
Video connector BNC
The interface bandwidth 1.4835Gbps,1.485Gbps,2.97Gbps
impedance 75Ω
Resolution

1920*1080@60Hz; 1920*1080@50Hz; 1920*1080@30Hz; 1920*1080@25Hz; 1920*1080@24Hz; 1280*720@60Hz;

1280*720P@50Hz; 525i; 625i

RS485 connector Industrial terminals
Baud rate Self-adaptive, Max:115200bps
Optical fiber Self-adaptive, Max:115200bps LC/SC
Wavelength Single-mode 1310nm
Transmission distance Single-mode:3/20/40/80km
Other Power Power adapter:DC 5V/2A
Power dissipation MAX 2.5W
Size 120mmX97.5mmX25.2mm















Packaging & Shipping




5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter





Payment



5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter



Our Services



Welcome to inquire!



5VDC power4 channels HD SDI to Fiber Converter 1.485Gb / s Data rate optical fiber transmitter
