Payment & Shipping Terms:
|Product Name:||3G SDI To Fiber Converter||Fiber Module:||3G SFP|
|Working Temperature:||-10°C ~ 50°C||Power Consumption:||≤5W|
|Interface Type:||FC/SC/LC||Signal Impedance:||75 Ω|
video digital optical converter,
data video converter

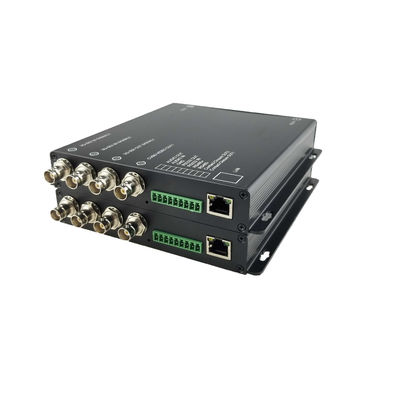

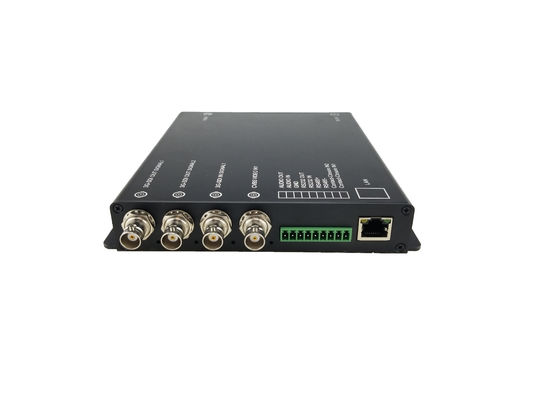

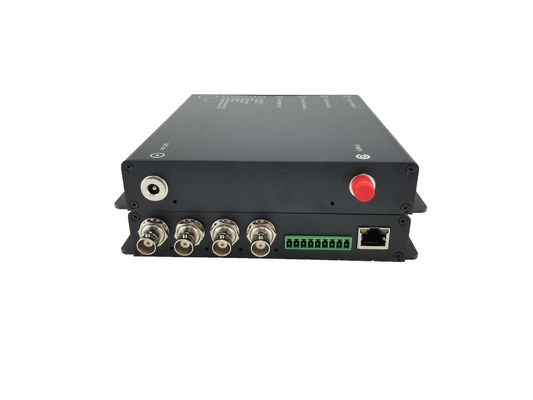

3G-SDI Transmitter & Receiver Kit Over Singlemode Fiber ST/PC 20km,180mm x 123mm x 30mm
System Design Fiber Optic Video Transmitter & Receiver
SDI series can transmission 1/2/4/8-Channels
SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.
Single-Mode or Multi-Mode
SD-SDI/HD-SDI/3G-SDI units are designed to support LC /PC Optical connector
We will offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical
The Transmission distance Range according to the Optical Budget.
Manufacturer's default standard is single mode 20Km .
•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber
• The Max rate of work is 3.2Gb/s
• Support SMPTE 292M (2.9Gb/s) clock recovery
• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)
• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)
• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)
• LED Status Indication to monitor the working conditions
• Video transmission system can support many application branches structure
•The fiber port Support SFP transceiver hot-plugged
•The SDI video format support:
•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).
•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization
Connector: FC/ ST/PC
Transmitting power: better than -6dB
Receiver sensitivity: better than -18dB
Optical dynamic range: 12dB
Optical maximum loss: 12dB
Fiber: single-mode/multi-mode fiber, single fiber
|Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel. Transmission distance may also be limited by fiber optic bandwidth.|
Video Bandwidth: 5Hz~10Hz
Rate input & output Level: 1Vp-p
Sampling Frequency: 16.4M (typical value)
Signal Impedance: 75 Ω
Signal Interface: BNC/PAL/NTSC/SECAM
Differential Gain (DG): <1.3 %( typical value)
Signal Noise Ratio (SNR): 63dB
Data Interface: RS-232,RS-422,RS-485,TTL
Data Mode: NRZ,Manchester,Bi-phase
Data Rate: 110bps-115.200Kbps
Interface Port: RJ45
|Power||Power supply:AC180V ~ 260V;DC –48V;DC +24V
Power consumption: ≤5W
|Working environment||Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Welcome to inquire!
